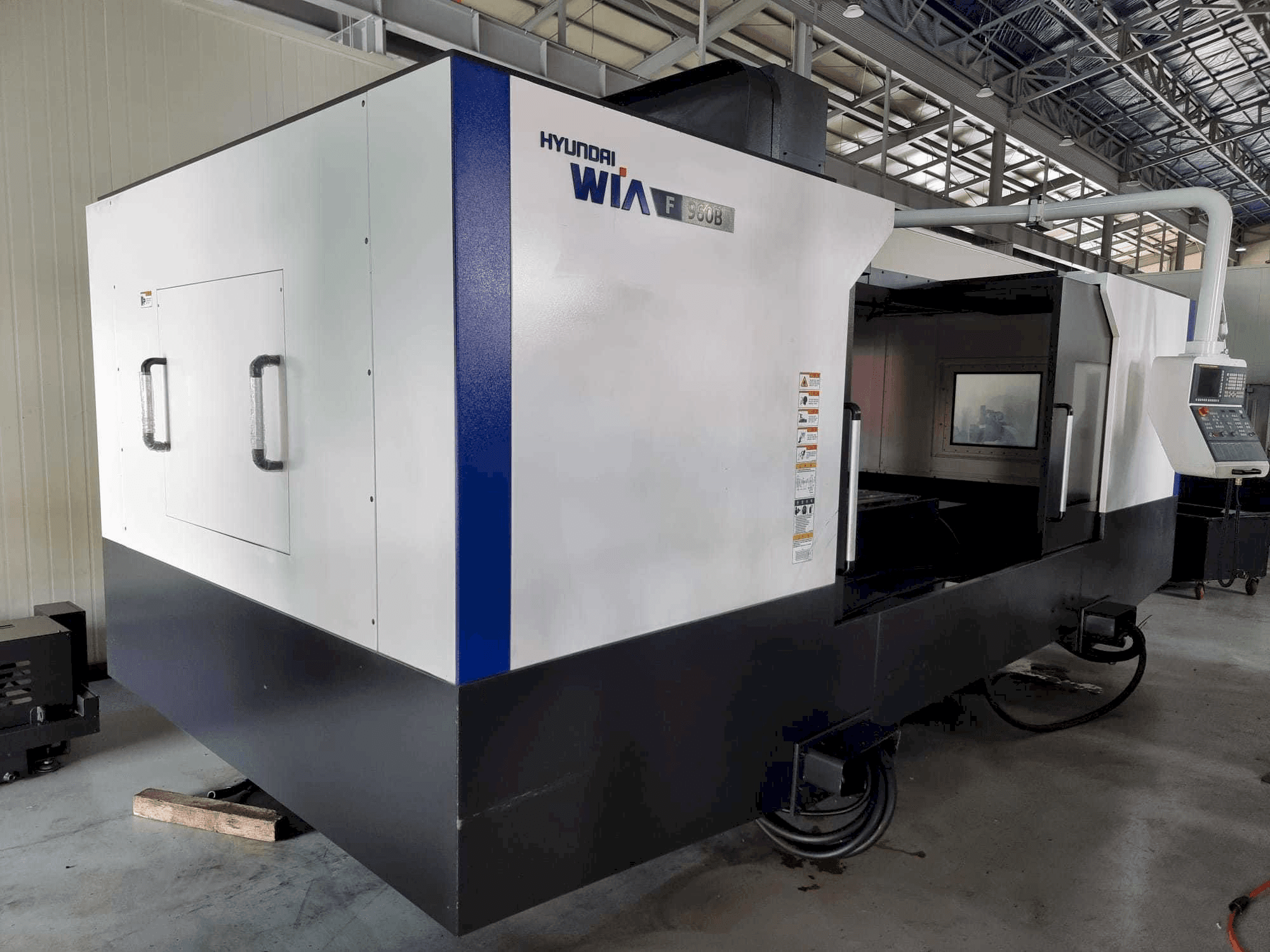

Hyundai Wia F960B Vertical Machine Center

Show in original language

This Hyundai Wia F960B Vertical Machine Center was built in 2019. It is operated through a Fanuc i Series control unit and has 3 axis. The machine has a spindle speed of 8000 rpm.

Overview

brand: Hyundai Wia
year: 2019
MODEL: F960B
application type: Milling
Location: South Korea
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Hyundai Wia F960B

Control Unit

Control Brand: FANUC
Control Model: i Series

Dimensions

Machine Depth: 4425 mm
Machine Height: 3647 mm
Table Length: 2700 mm
Table Load: 4500 kg
Table Width: 950 mm

Movement

Number of Axes: 3
X-axis Travel: 2450 mm
Y-axis Travel: 960 mm
Z-axis Travel: 850 mm

Technical Specification

Spindle Power: 22 kW
Spindle Speed: 8000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Spindle cooling system
Atc extension: 20
Tool shank type: bbt50
Pull stud: 45°
Coolant tank: 690l
Interior screw chip conveyor
Remote mpg
Distance from table top to sp. Nose: 200 - 1050 mm
Max. Tool length: 300 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
