Hurco - VMX 64DE-MIL-HUR-2006-00003

£ 19,676
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

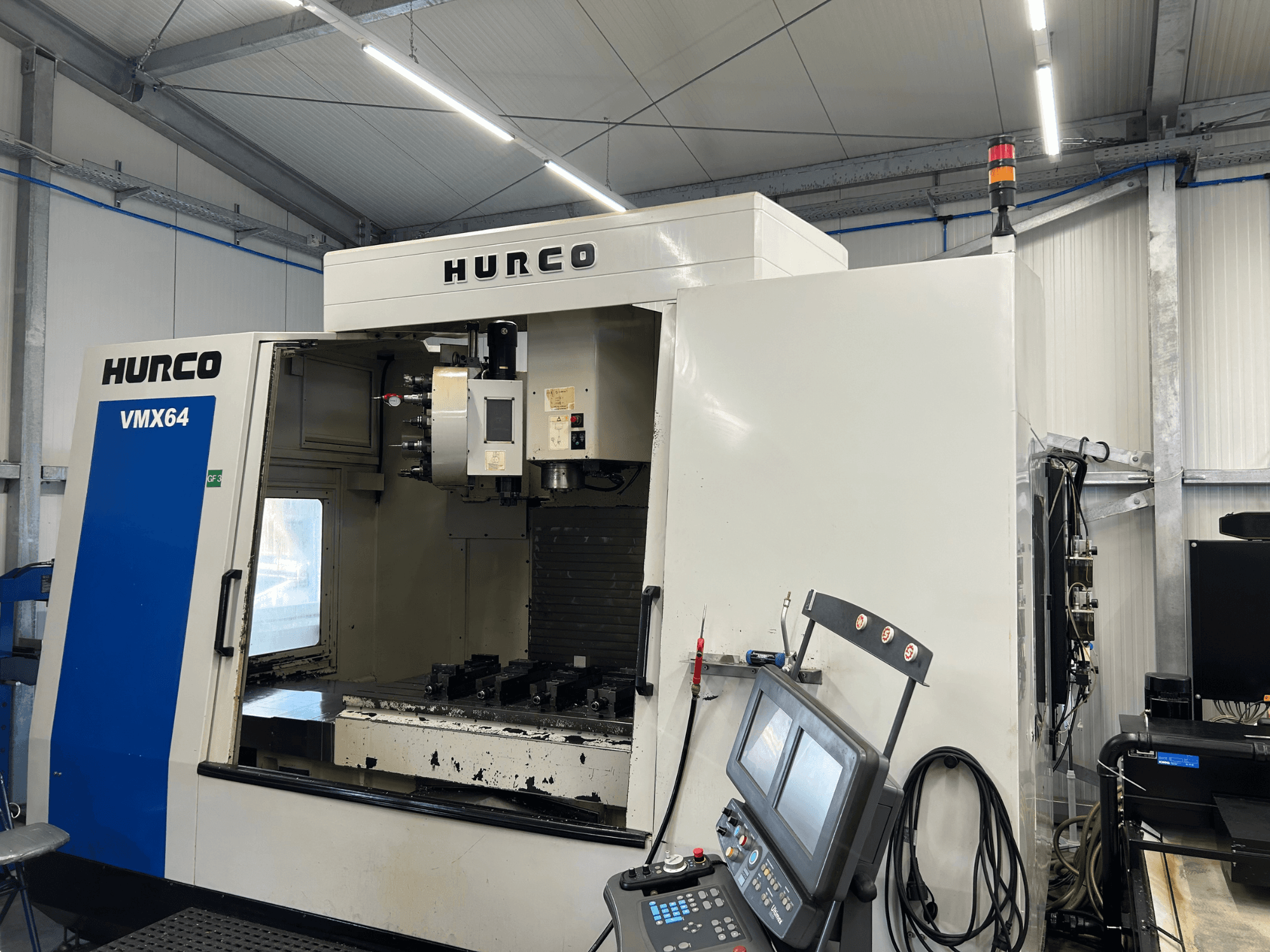

This 3-axis Hurco VMX 64 was manufactured in 2006. It features a travel range of 1,625 mm on the X-axis, 860 mm on the Y-axis, and 760 mm on the Z-axis. The machine includes a robust table clamping area of 1,675 x 890 mm and a load capacity of 2,500 kg. If you are looking to get high-quality machining capabilities, consider the Hurco VMX 64 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: Hurco
  • year: 2006
  • MODEL: VMX 64
  • production hours: 4200
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre

Technical Information - Hurco VMX 64

Dimensions

  • Machine Weight: 15000 kg
  • Table Load: 2500 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 1625 mm
  • Y-axis Travel: 860 mm
  • Z-axis Travel: 760 mm

Technical Specification

  • Spindle Power: 15 kW
  • Spindle Speed: 10000 RPM
  • Taper Size: SK 40
  • Through-spindle Coolant: Yes
  • Tool Stations: 40

Additional Information

- Spindle Hours: Approx. 4,200 h

- Total Operating Hours: Approx. 5,900 h

- Control System: Upgraded to WINMAX (Software version 2016) with DXF option and network connection

- Table Clamping Area: 1,675 x 890 mm

- Power: 15.0 kW (15.0 kVA, Largest Motor)

- Max. Torque: 237 Nm

- Spindle-to-Table Distance: 150–910 mm

- Spindle Type: BigPlus SK40 with 10,000 rpm

- Tool Magazine: Hydraulic chain magazine with 40 positions

- Internal Coolant Supply (IKZ): 20 bar

- Coolant & Filtration: KNOLL Belt Filter System (Type: AE 1058, Year: 2006, Voltage: 3x400V 50 Hz, Connect Load: 5.0 kW)

- Chip Management: Chip conveyor

- Electrical Connection: 400V, 3 Phase, 50 Hz, Full Load 38 kVA / 95 Amp, Overcurrent Protection/Interrupt Capacity 10,000 Amps

- for an additional charge: Clamping Vises: 6 ATORN NC hydraulic vises (125 mm)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
