Hurco VMX 50/50T

Photo Gallery

Hurco - VMX 50/50TIE-MIL-HUR-2002-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
HURCO VMX 50/50T Milling

Show in original language

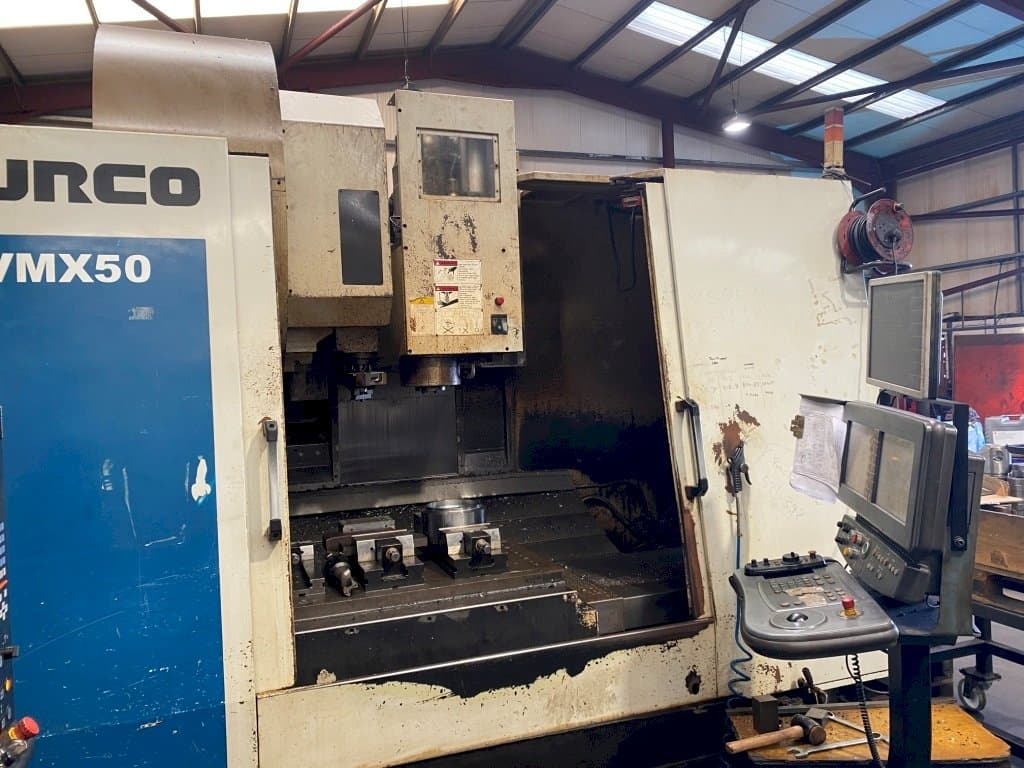

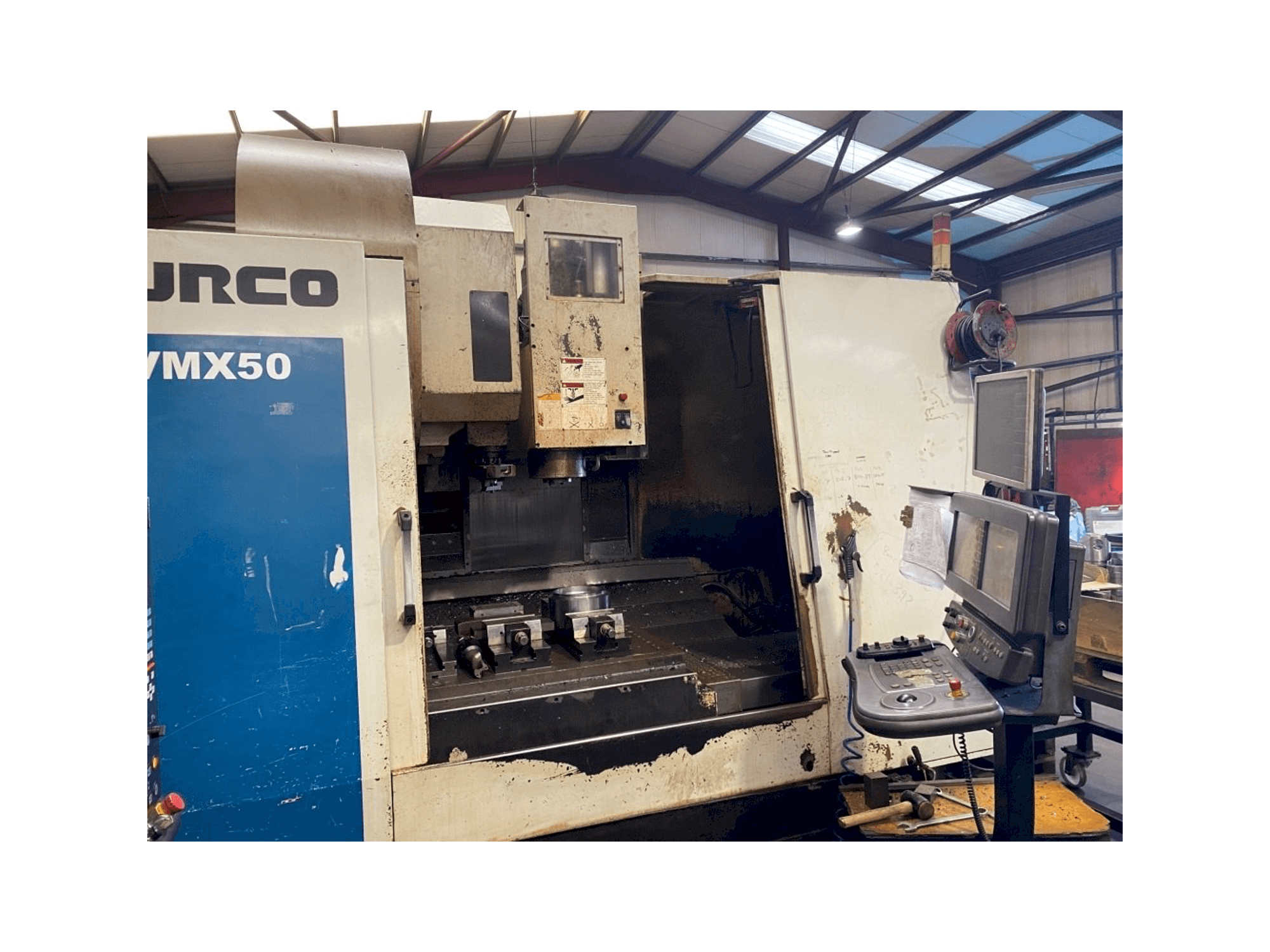

This HURCO VMX 50/50T Vertical Machining center was manufactured in 2002 in Taiwan. It operates through a Hurco Control Unit. The machine has a spindle speed up to 8000 rpm. It is a large capacity machine including rigid tapping.

Overview

brand: Hurco
year: 2002
MODEL: VMX 50/50T
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
control unit brand: HURCO

Technical Information - Hurco VMX 50/50T

General Data

Measurements width: 4875 mm
Measurements depth: 4580 mm
Measurements height: 3000 mm
Machine weight: 9150 kg

Control Unit

CNC language customizable: Yes
Brand: HURCO

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/MIN

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 660 mm
Z-AXIS Movement: 610 mm

Table

Outer length: 1500 mm
Outer width: 660 mm

Tools

Slots in storage: 30
Max weight: 15 kg
Max tool diameter: 220 mm
Max tool length: 300 mm
Type of tool holder: ISO 50

Media

Main electronic connection: 400 V
Power consumption: 40 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Additional equipment

TG 200mm Centre Height Pneumatic Indexer with Tailstock
20 Bar Through Spindle Coolant

Machine Benefits

Technical Machine Benefits

Large capacity machine
30 tool atc
20 bar hpc
Air blast
Rigid tapping

Extra Information

Machine control screens are not working. New screens are needed for this machine. Currently operated using an external screen which works well.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
