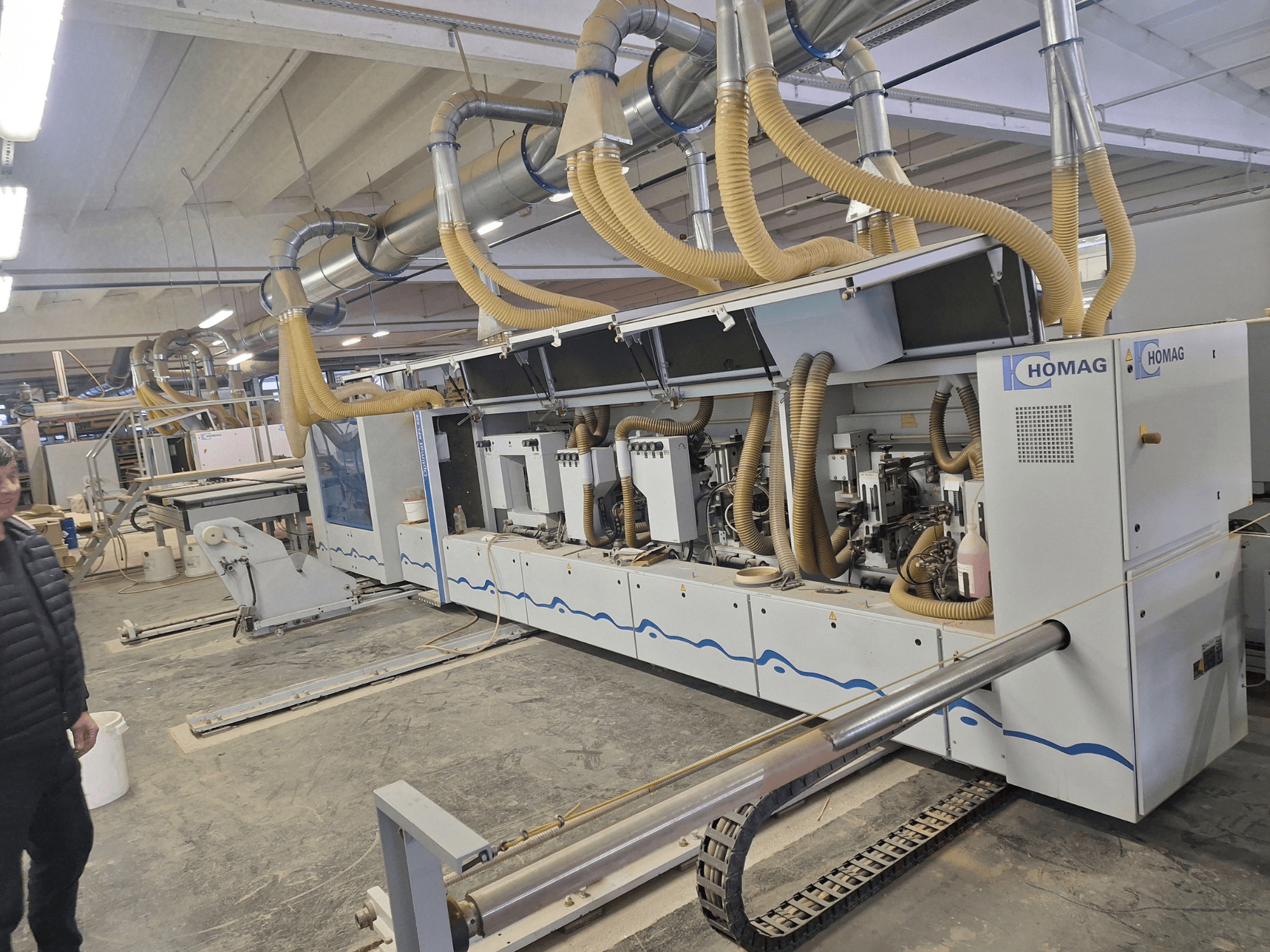

HOMAG WEEKE - industrial production line for high-volume panel processing and edge-bandingSI-COM-HOM-2007-00001

• Core processing machines:

  • HOMAG Optimat KFL 525

    • Units: pre-milling, gluing, trimming, radius units, scrapers, polishing

    • HOMAG control with touchscreen/keyboard

    • Sensors for board thickness and edge material detection

    • Large blue safety windows

  • HOMAG Optimat KFL 526

    • Continuing trimming and polishing stations

    • Manual service access with lift-up covers

• Controls & electrics:

  • HOMAG electrical cabinet with main switch

  • PLC, fuses, control boards, voltage/current meters

  • Safety control panels (stop, reset, feed, emergency stop)

• Condition:

  • Complete, physically connected line

  • Normal operational wear; no major damage visible

  • Full set of professional edge-banding aggregates installed

Additional equipment

• 2× Automatic loading systems: WEEKE OPTIMAT BST 500 D (2007)

  • Ser. no. 0–251–04–2756 (34 kW, 80 A) and 0–251–04–2755 (25 kW, 63 A)

  • Overhead gantry with vacuum lifting cups, automatic material alignment

  • Heavy-duty roller conveyor section

• Transport/transfer system: HOMAG OPTIMAT TDL 310/25/12 (2007)

  • Ser. no. 0–205–10–1698

  • Wide roller conveyor with safety guards

  • Cross-transfer and sorting sections

  • Integrated measuring and positioning units

• Portal manipulator (stacker/unloader)

  • Overhead vacuum pick-and-place unit (orange)

  • Linear guiding with chain drive, dedicated motor drive

  • Automatic lifting and stacking of finished panels

• Extraction/filtration

  • Strong industrial dust extraction along full line (yellow flexible hoses + metallic ducts)

• Safety guarding

  • Complete set of safety guards across the line
