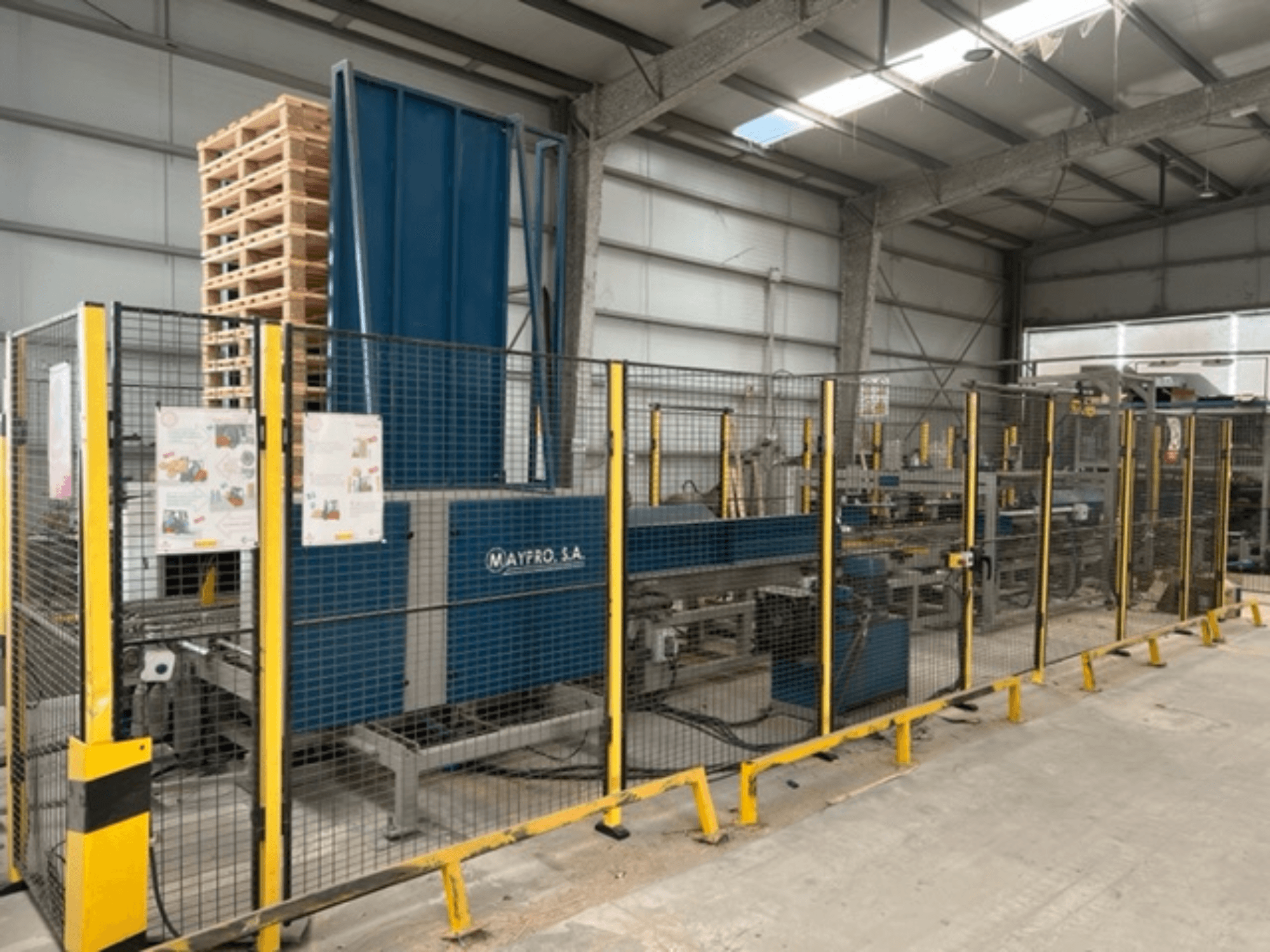

This MAYPRO LC2 was manufactured in 2018. It features an industrial PC with proprietary software, PLC integration, and can produce up to 2,000 pallets per 8-hour shift. Minimum and maximum pallet dimensions are 600 mm x 600 mm and 1,500 mm x 1,500 mm, respectively. It includes an automated wood feed system, multi-head nailing, and an integrated stacking system. Total installed power is 20-40 kW. Contact us for more information about this machine.
Overview
- brand: MAYPRO
- year: 2018
- MODEL: LC2
- application type: Complete Production
- Location: Spain
- machine type: Complete Production Line (Wood)
Additional Information
Operating Principle: Continuous cycle, high-speed automated assembly
Control System: Industrial PC (IPC) with proprietary software and PLC integration
Wood Feed System: Automatic hopper or magazine feed for boards and blocks
Nailing Heads: Multi-head pneumatic or hydraulic nailing system
Nail Feed: Automatic bulk nail feeder and sorting system
Stacking System: Integrated automated stacking, accumulating, and conveying
Safety Features: Full perimeter guarding, emergency stops, safety light curtains
Maximum Pallet Production Rate: Up to 1500 - 2000 pallets per 8-hour shift (dependent on pallet size and complexity)
Minimum Pallet Dimensions (L x W): Approximately 600 mm x 600 mm
Maximum Pallet Dimensions (L x W): Approximately 1500 mm x 1500 mm
Total Installed Power: Typically 20 - 40 kW (depending on configuration)
Required Air Pressure: 6 - 8 bar
Machine Footprint (Approx. L x W): Highly variable, typically 20 m x 5 m (production line layout)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
