HARTFORD PRO 1000

Photo Gallery

HARTFORD - PRO 1000FR-MIL-HAR-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

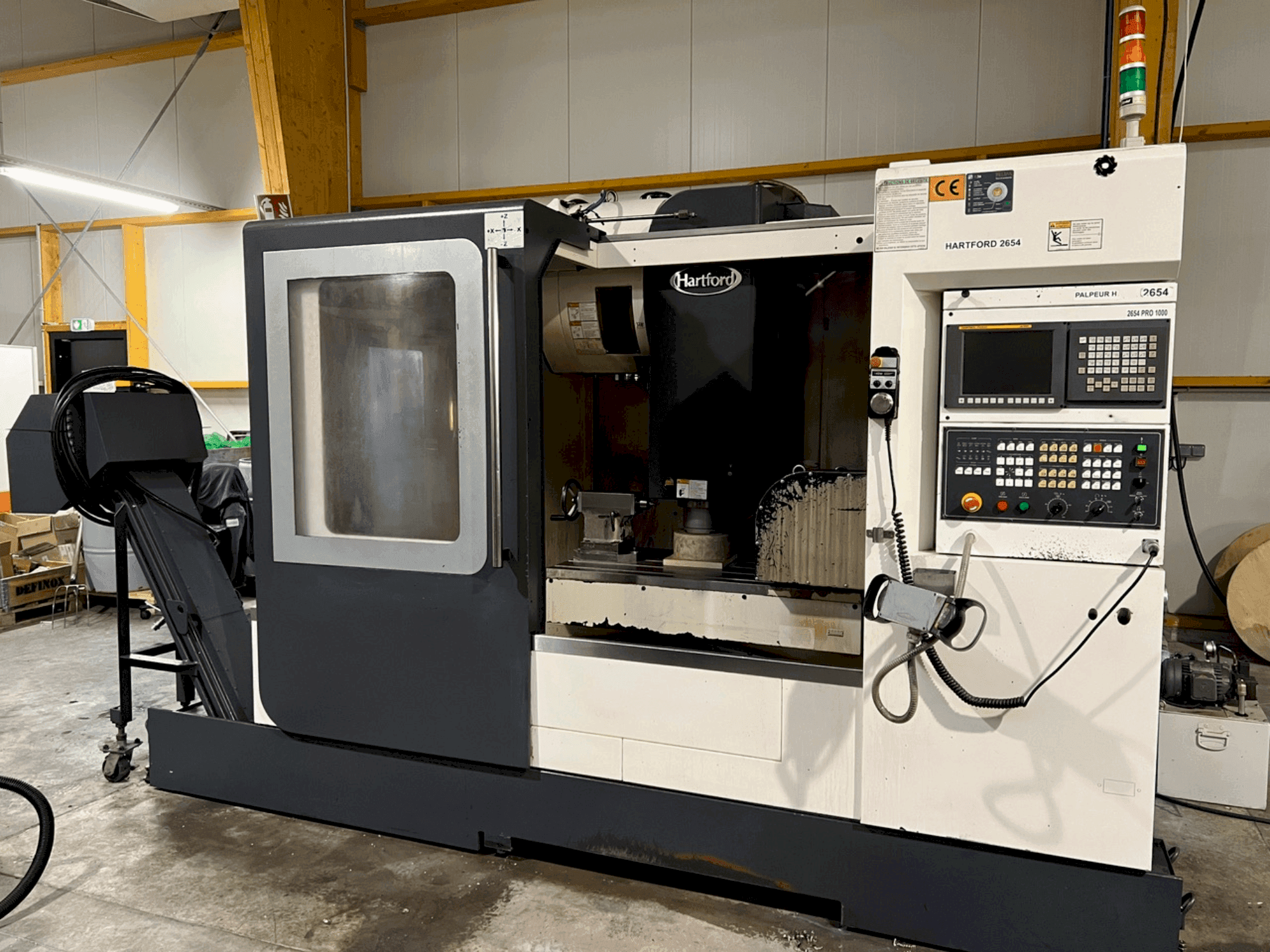

HARTFORD PRO 1000 Machining centers (vertical)

Show in original language

This HARTFORD PRO 1000 (2011) Machining centers (vertical) machine was manufactured in 2011 . It is equipped with a CNC Fanuc control unit and has 5 axis. It is in very good working condition and can be inspected at any time and disposes a set of 50 tools holders.

Overview

brand: HARTFORD
year: 2011
MODEL: PRO 1000
application type: Milling
Location: France
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - HARTFORD PRO 1000

Control Unit

Control Brand: FANUC
Control Model: HARTROL AI100

Dimensions

Table Length: 1150 mm
Table Width: 600 mm

Movement

Number of Axes: 5
X-axis Travel: 1000 mm
Y-axis Travel: 600 mm
Z-axis Travel: 630 mm

Technical Specification

Spindle Power: 11 kW
Spindle Speed: 8000 RPM

Additional Information

Additional equipment

Set of 50 tools holders

Machine Benefits

Qualitative Machine Benefits

Chip conveyor
Hydraulic chiller
Infrared 3d probe blum ic56

Technical Machine Benefits

Table dimension: 1150x600 mm
Weight allow on table: 700 kg
Axis travel x/y/z: 1000x600x630 mm
Spindle nose/table distance:100/730 mm
Spindle nose: sk40 / spindle chiller
Motor power 11 kw
Spindle speed: 8000 rpm - gear 2 ranges
Atc random type: 24 stations
Cnc fanuc oimd + hartrol ai100
Full 4th axis + position 5th axis 0/90° goldensun

Extra Information

Very good condition and this machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
