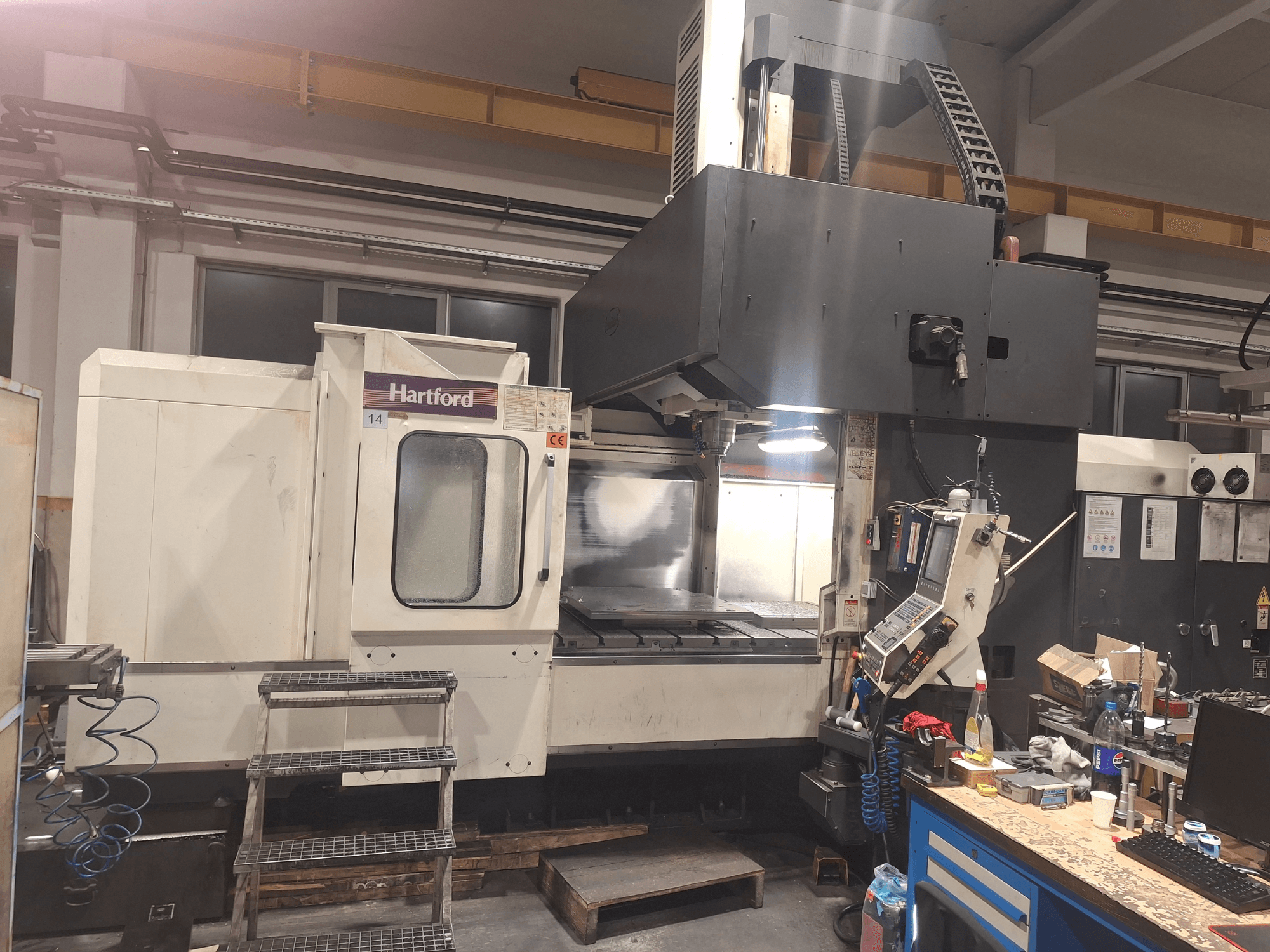

Hartford CNC machine, front view, with technical controls, steps to access, and a work table area, in a workshop setting.
Hartford CNC machine, front view, with technical controls, steps to access, and a work table area, in a workshop setting.

HARTFORD - HSA 2215SI-MIL-HAR-2013-00002

£ 64,164
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Hartford HSA 2215 was manufactured in 2013. It features a Heidenhain iTNC 530 CNC control, with a substantial working area: X-axis travel of 1,800 mm, Y-axis travel of 1,400 mm, and Z-axis travel of 1,000 mm. Ideal for handling large plates up to 2,100 × 1,000 mm. Contact us for further details regarding this machine.

Overview

  • brand: HARTFORD
  • year: 2013
  • MODEL: HSA 2215
  • application type: Milling
  • Location: Slovenia
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - HARTFORD HSA 2215

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: iTNC 530

Dimensions

  • Machine Weight: 25800 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 1800 mm
  • Y-axis Travel: 1400 mm
  • Z-axis Travel: 1000 mm

Additional Information

  • Maximum plate size machinable: 2,100 × 1,000 mm

  • Power supply: 380 V

  • Phase: 3-phase

  • Frequency: 50 / 60 Hz

  • Connected load: approx. 45 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
