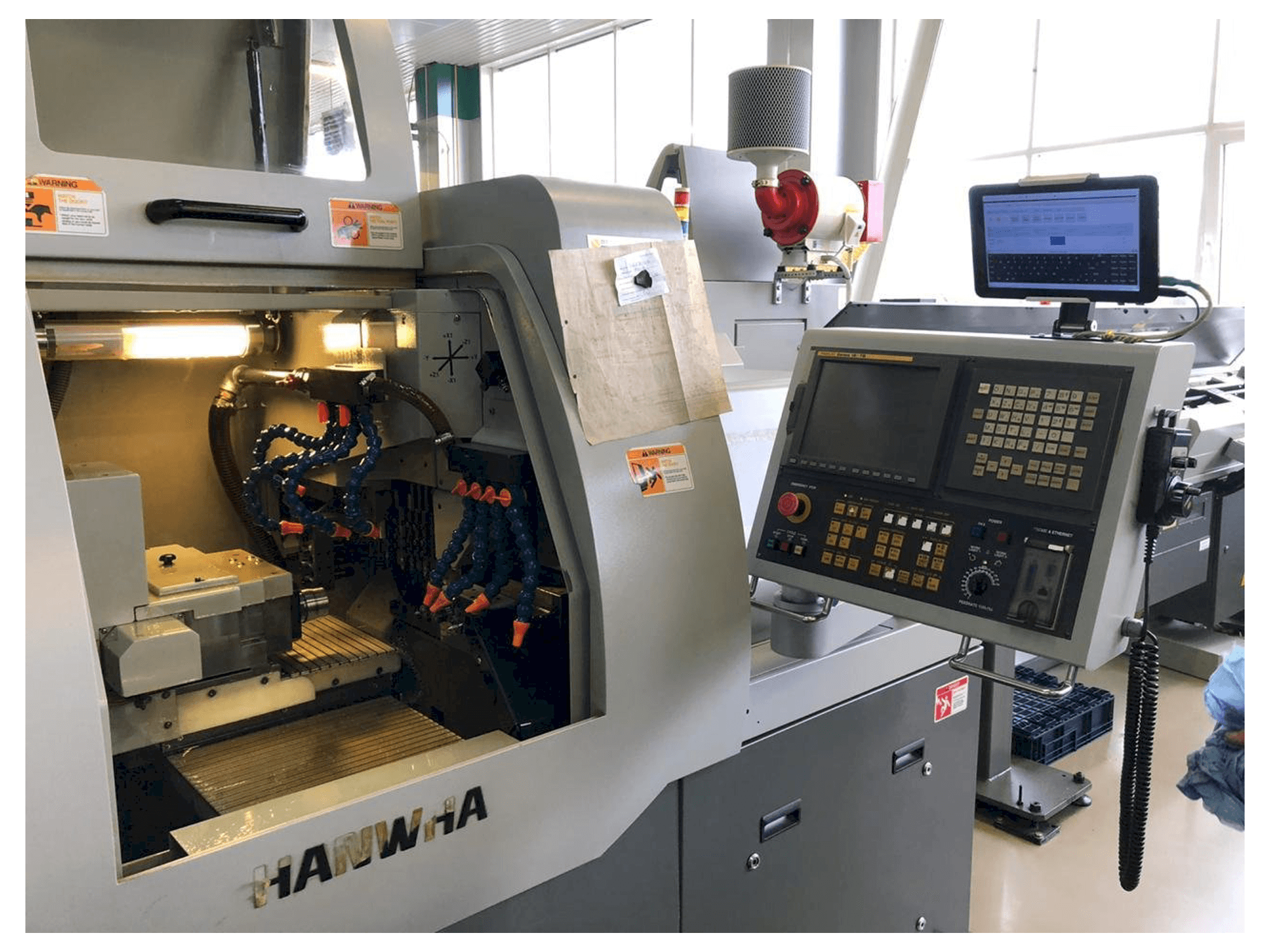

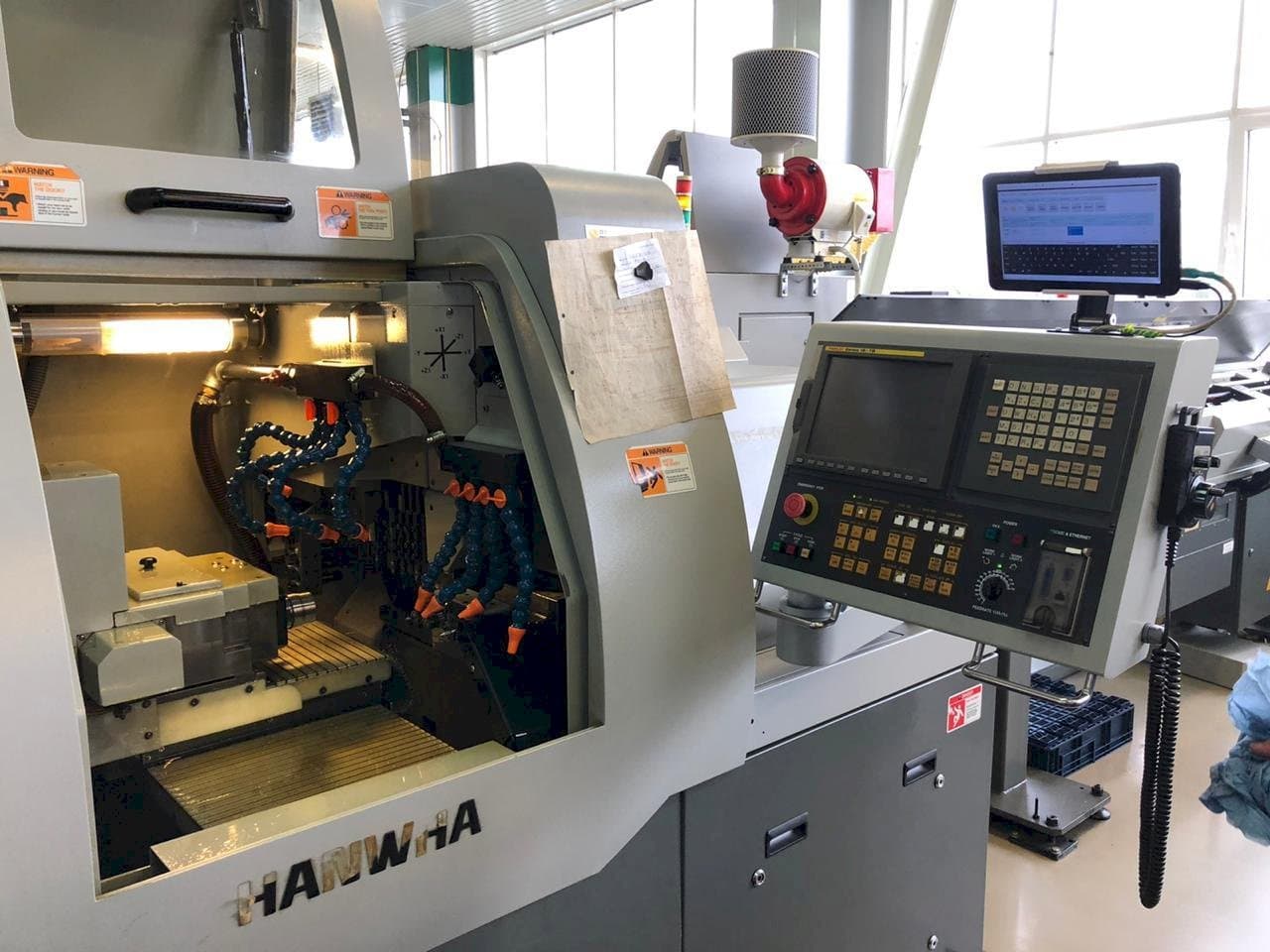

Hanwha XD20H Lathe

Show in original language

This Hanwha XD20H Lathe was manufactured in Korea in the year 2006. It is operated through a Fanuc Series control unit. It is counts with a main spindle which can work with a spindle speed up to 10000 rpm, and a counter spindle which can work with a spindle speed up to 8000 rpm. Both spindles can work with an indexing 1º, and travel 210 mm.

Overview

brand: Hanwha
year: 2006
MODEL: XD20H
application type: Turning
Location: Russia
machine type: Swiss Type Turning Machine

Technical Information - Hanwha XD20H

Main drive

Spindle speed range: 10000 1/MIN

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Main spindle: full c axis (deg. ) 0. 001°, travel 210 mm, max. Processed rod (mm) 20, index (deg. ) 1º
- - Counter spindle: speed 8000 rpm, travel 210 mm, max. Processed diameter (mm) 20, indexing (deg. ) 1º
- - Support for external turning (pos. ) 6 (12)
- - Caliper for face drilling in the main/counterspindle (pos. ) 5 (er16)
- - Cross drilling / milling support (pos. ) 4 (er16)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
