Hanwha STL 38H

Photo Gallery

Hanwha - STL 38HRU-TUR-HAN-2014-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

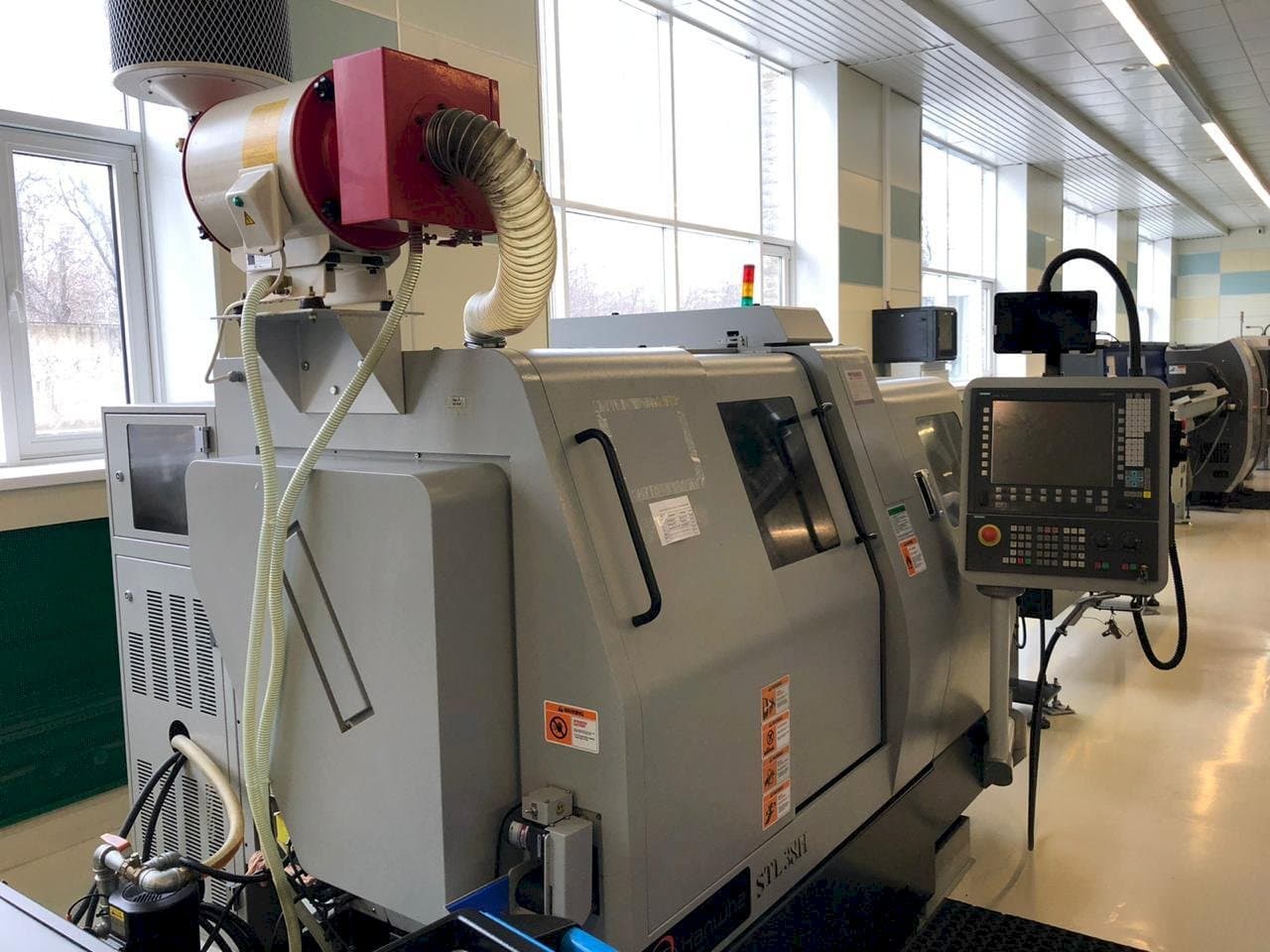

Hanwha STL 38H Lathe

Show in original language

This Hanwha STL 38H Lathe was manufactured in Korea in the year 2011. It is operated through a Siemens 840D control unit. It is counts with a main spindle which can work with a spindle speed up to 8000 rpm, and a counter spindle which can work with a spindle speed up to 7000 rpm. Both spindles can work with an indexing 1º, and a full axis with 0.001 º

Overview

brand: Hanwha
year: 2014
MODEL: STL 38H
application type: Turning
Location: Russia
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - Hanwha STL 38H

General Data

Measurements width: 2790 mm
Measurements depth: 1730 mm
Measurements height: 1785 mm
Machine weight: 4600 kg

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 8 kW

Media

Main electronic connection: 40 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main spindle: travel 320 mm, max. Processed Ø (mm) 38, indexing 1º, full axis with 0. 001 º
- - Counter spindle: max. Rotation speed 7000 rpm, travel 320 mm, max. Processed Ø (mm) 38, indexing 1º, full axis with 0. 001 º
- - Caliper for external turning, positions 5 (16×16)
- - Cross drilling / milling support, positions(drive) 4 (er16)
- - Caliper for face drilling in the main spindle, positions (non-drive+drive) 4 (er16)+0
- - Revolver head (pos. ) 10 (×20×20)
- - Max. Drilling diameter on the cross drilling / milling support (mm) 10
- - Max. Diameter of the thread to be cut by the tap on the cross drilling / milling support m6
- - Revolver head high speed x2 / y2 / z2 (m / min) 24 / 8 / 32
- - Coolant tank (l) 270

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
