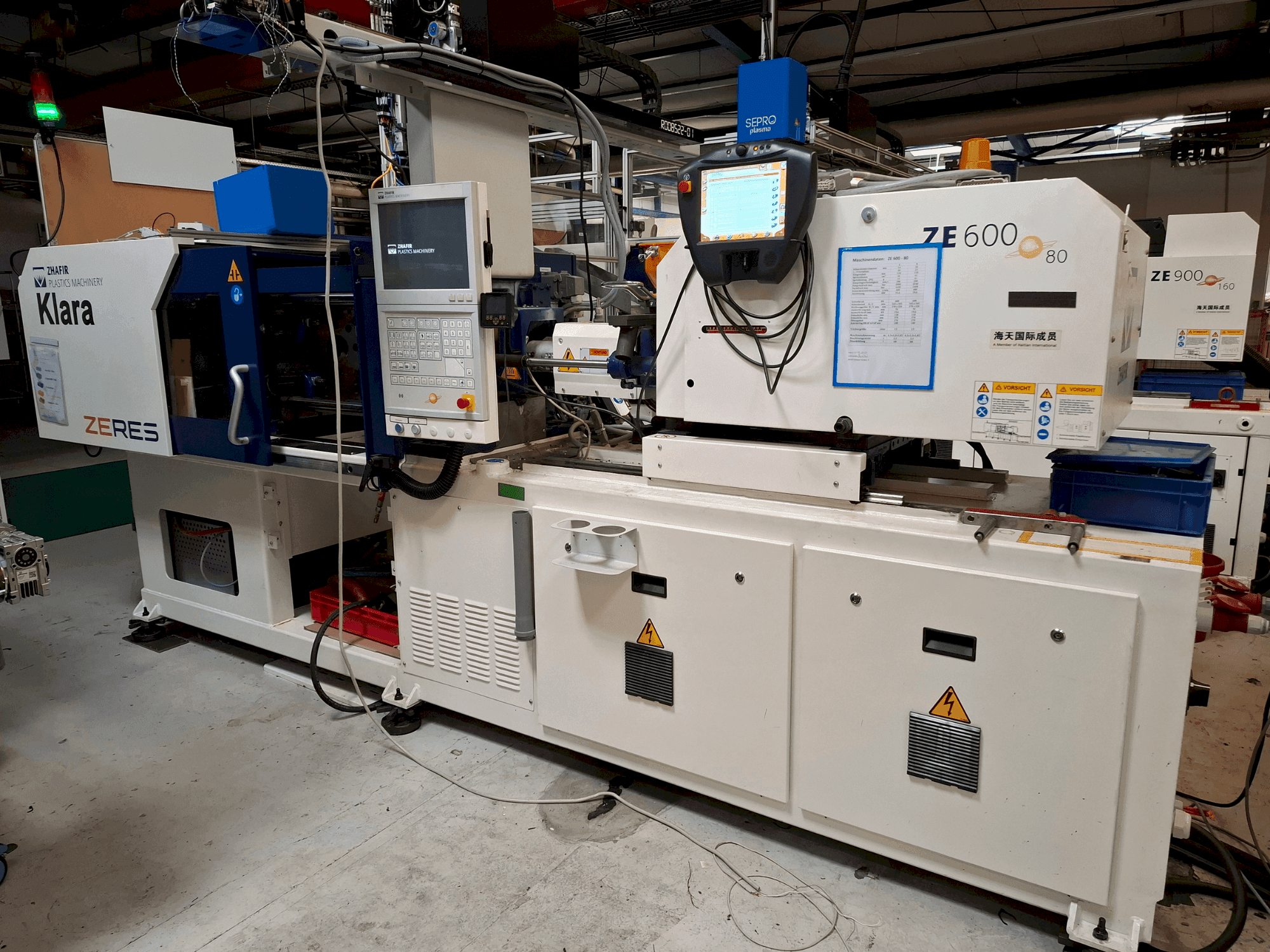

Front view of HAITIAN ZHAFIR Zeres ZE600 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HAITIAN ZHAFIR Zeres ZE600

Photo Gallery

HAITIAN - ZHAFIR Zeres ZE600DE-INJ-HAI-2018-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used HAITIAN ZHAFIR Zeres ZE600 For Sale | gindumac.com

Show in original language

This Haitian ZHAFIR Zeres ZE600 was manufactured in 2018. It is a hydraulic injection moulding machine, ideal for precision and efficiency in plastic processing. Consider the opportunity to buy this Haitian ZHAFIR Zeres ZE600 hydraulic injection moulding machine. Contact us for more information.

Overview

brand: HAITIAN
year: 2018
MODEL: ZHAFIR Zeres ZE600
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - HAITIAN ZHAFIR Zeres ZE600

General Data

Measurements width: 1200 mm
Measurements depth: 4100 mm
Measurements height: 1820 mm
Machine weight: 3500 kg

Injection Unit

Screw diameter: 22 mm
Injection pressure: 220 MPa BAR
Screw speed: 400 RPM

Clamping unit

Clamping force: 600 kN
Size of mold platens: 545 x 505 mm
Ejector stroke: 70 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Distance between uprights: 370 x 320 mm
Installation height: 150 mm - 370 mm
Max ejector bar length: 175 mm
Ejector coupling: central haitian standard Ø 20mm
Centering ring: 100 mm
Cascade control: 4-fold
Core pulls bwap: 1
Air valves: 2
Hot runner control units: external

Extra Information

Screw L/D Ratio: 20 Calculated Injection Volume: 36 cm³ Injection Capacity (PS): 32.8 g Holding Pressure: 175 MPa or 1780 Kgf/cm² Heating Input Power: 5.0 KW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

ZE600-80 Chapt 5 (英文)新版2014.11(J5).pdf
