HAAS VCE 750
HAAS - VCE 750
2000
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- HAAS VCE 750 Machining Center

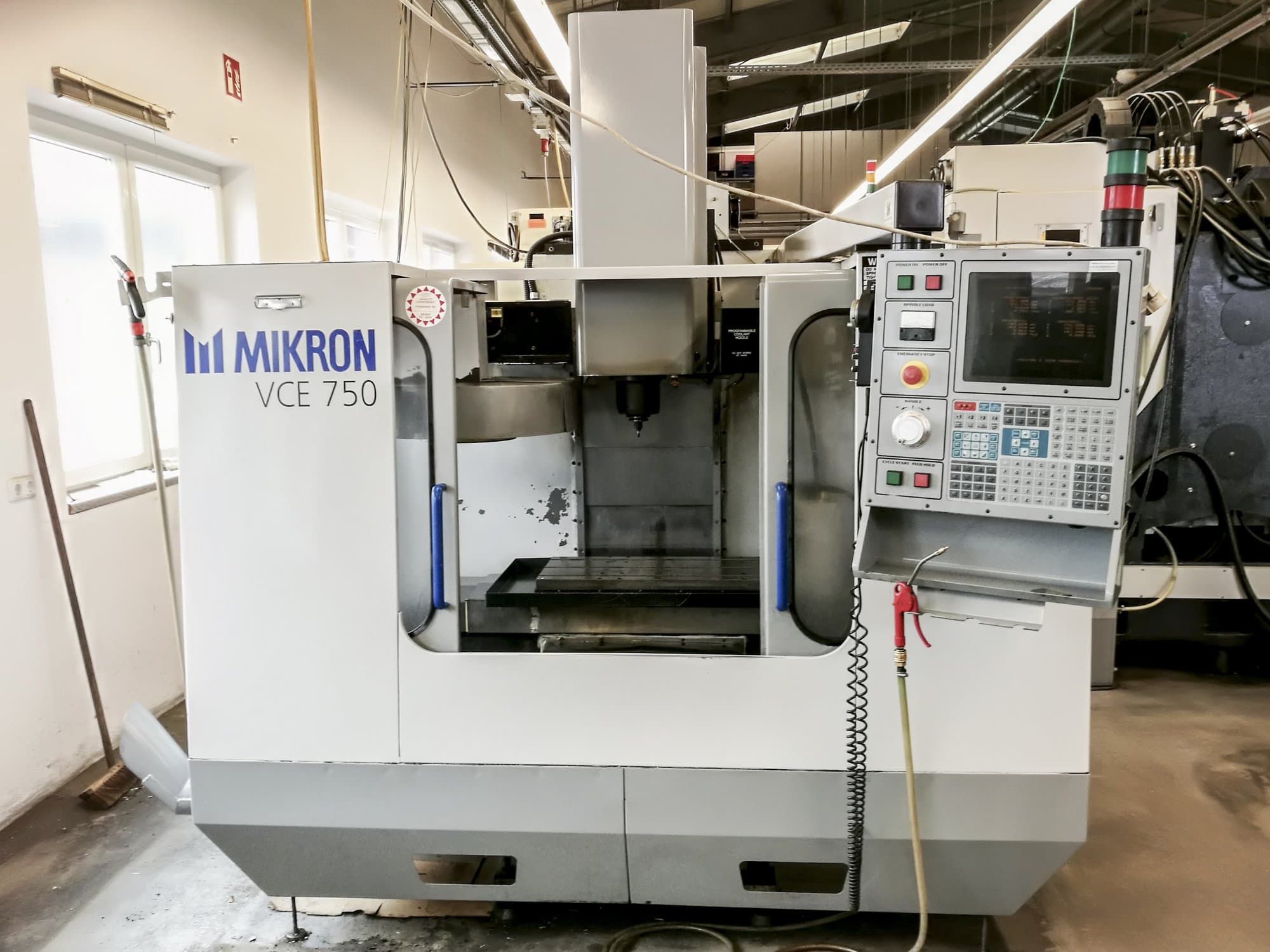

This HAAS VCE 750 Machining Center was manufactured in Switzerland in 2000 and has a working record of not more than 6166 production hours since then. This model is equipped with a HAAS CNC Control unit and has mainly worked with steel, aluminium as well as with plastics during the past, producing machine components.
Overview
- brand: HAAS
- year: 2000
- MODEL: VCE 750
- production hours: 6166
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: HAAS
- GINDUMAC ID: DE-MIL-HAA-2000-00001
Technical Information
General Data
- Measurements width: 2230 mm
- Measurements depth: 2360 mm
- Measurements height: 2690 mm
- Machine weight: 3620 kg
Control Unit
- Brand: HAAS
- Model: CNC
Main drive
- Number of spindles: 1
- Spindle speed range: 50-8000 1/min
Movement
- X-AXIS Movement: 750 mm
- Y-AXIS Movement: 410 mm
- Z-AXIS Movement: 500 mm
Table
- Outer length: 910 mm
- Outer width: 310 mm
Tools
- Max weight: 7 kg
- Max tool diameter: 130 mm
- Max tool length: 300 mm
Media
- Main electronic connection: 400 V
- Power consumption: 16 kVA
- Chip conveyor: Yes
- Internal cooling: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
