➤ Used HAAS ST-30Y For Sale | gindumac.com

Show in original language

This 3-axis HAAS ST-30Y horizontal turning machine was manufactured in 2022. It features a 10-inch chuck, a maximum cutting diameter of 13.75 inches, and a cutting length of 32.5 inches. The machine includes a 12-station BMT-65 turret and live tooling speeds up to 4,000 rpm. Y-axis capabilities allow for off-center milling, drilling, and tapping. Consider the opportunity to buy this HAAS ST-30Y horizontal turning machine. Contact us for more information.

Overview

brand: HAAS
year: 2022
MODEL: ST-30Y
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine

Technical Information - HAAS ST-30Y

Movement

Number of Axes: 3
X-axis Travel: 239 mm
Y-axis Travel: 50.8 mm
Z-axis Travel: 826 mm

Technical Specification

Spindle Power: 22.4 kW
Spindle Speed: 3400 RPM

Additional Information

Chuck size: 10 in (≈254 mm)
Maximum bar capacity (through spindle): 3 in (≈76 mm)
Maximum part swing over front apron: 31.75 in (≈806 mm)
Maximum cutting diameter: 13.75 in (≈349 mm) using BMT65 turret
Maximum cutting length: 32.5 in (≈826 mm)
Rapid traverse: X 472 in/min (~12 m/min), Y 472 in/min (~12 m/min), Z 945 in/min (~24 m/min)

Spindle bore: 3.5 in (≈88.9 mm)
Maximum torque: 300 ft-lb @ 500 rpm (≈407 Nm)

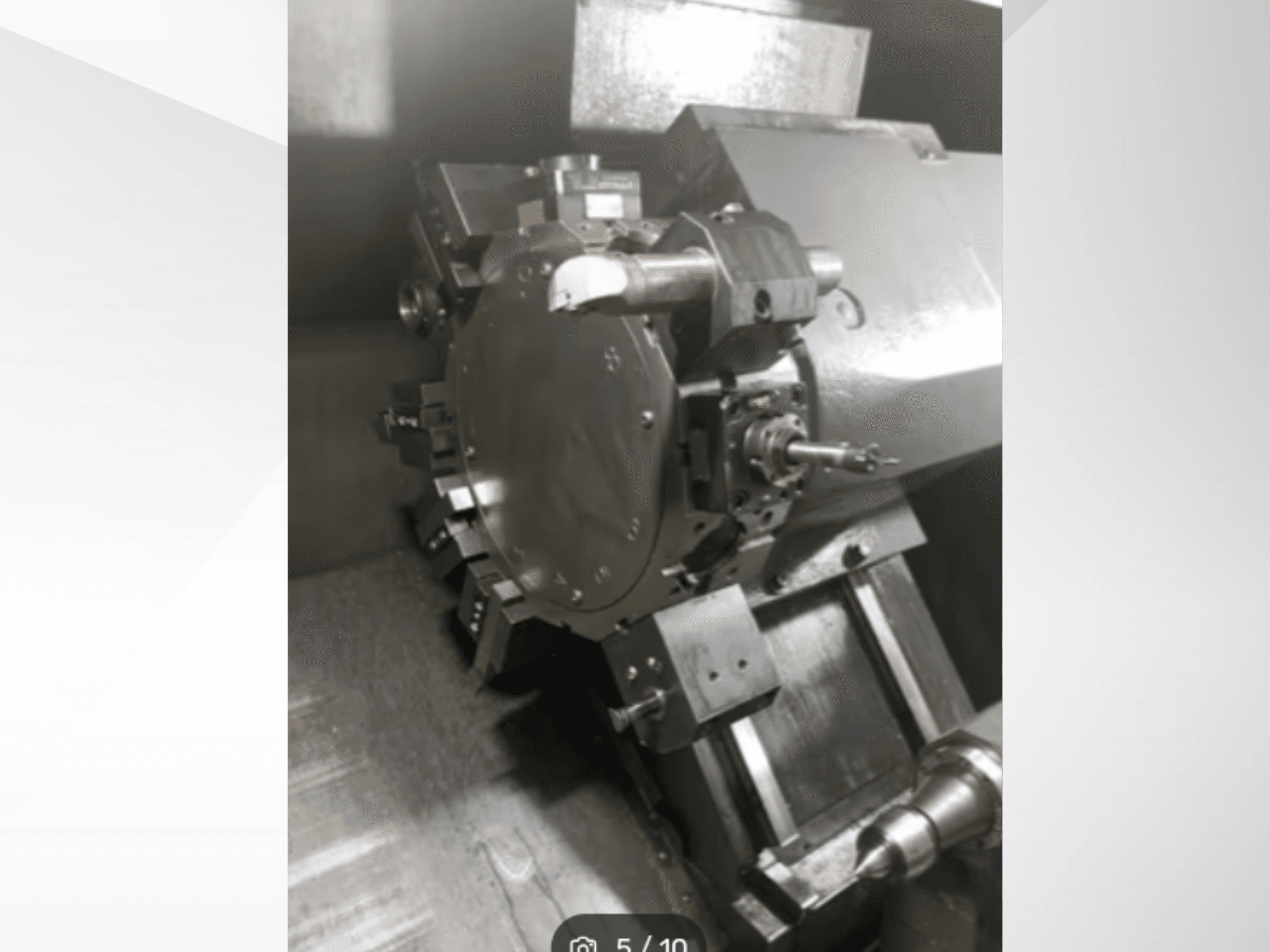

Turret: 12-station BMT65
Live tooling speed: up to 4,000 rpm
Y-axis capability: off-centre milling, drilling, and tapping
Coolant capacity: 55 gal (~208 L)
Air requirement: 4 scfm @ 100 psi (~113 L/min @ 6.9 bar)
Electrical: 3-phase, 195–260 V (region dependent)
Footprint: 151 in × 70 in × 79 in (without conveyor)

Additional equipment

Powered (live) tool holders
Various tool holders
Liners

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
