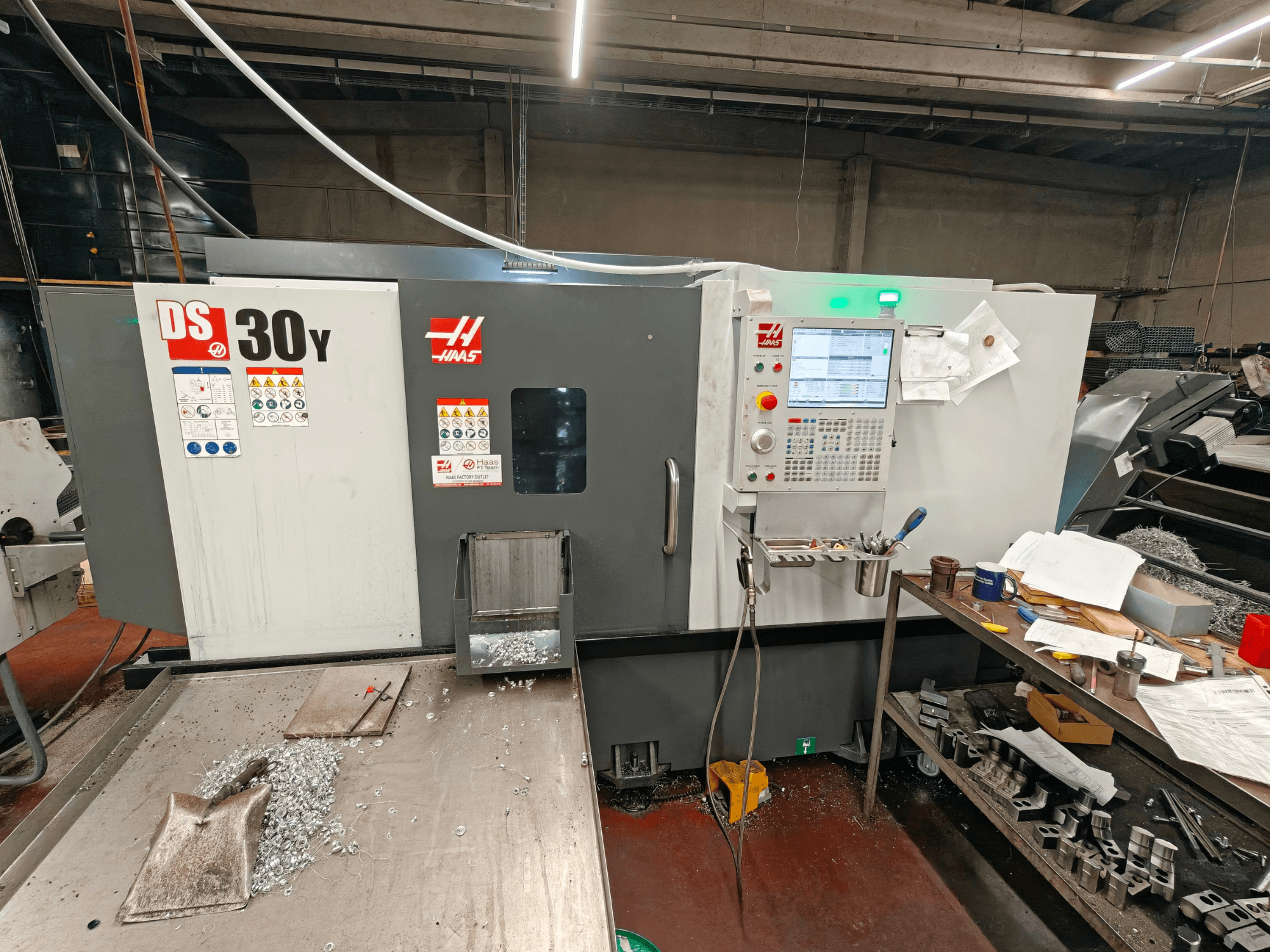

HAAS - DS30YBE-TUR-HAA-2023-00001

• Capacities (S.A.E / Metric)

  • Chuck size: 10.0 in (254 mm)

  • Max part swing: 21.0 in (533 mm)

  • Max cutting diameter (with BMT65 turret): 13.75 in (349 mm)

  • Max cutting length (varies with workholding): 32.5 in (826 mm)

  • Bar capacity: 3.00 in (76 mm)

  • Between centers: 32.5 in (826 mm)

• Feedrates (S.A.E / Metric)

  • Rapids on X: 472 ipm (12.0 m/min)

  • Rapids on Y: 472 ipm (12.0 m/min)

  • Rapids on Z: 945 ipm (24.0 m/min)

• Axis Motors (S.A.E / Metric)

  • Max thrust X: 4100 lbf (18,238 N)

  • Max thrust Y: 2300 lbf (10,231 N)

  • Max thrust Z: 5100 lbf (22,686 N)

• Main Spindle (S.A.E / Metric)

  • Spindle nose: A2-6

  • Drive system: Direct speed, belt drive

  • Max torque: 275.0 ft-lbf @ 500 rpm (373.0 Nm @ 500 rpm)

  • Draw tube bore: ø 3.0 in (76 mm)

  • Spindle bore: ø 3.50 in (88.9 mm)

• Main Spindle C Axis (S.A.E / Metric)

  • Max speed: 60 rpm

  • Max rating: 5.0 hp (3.7 kW)

  • Positioning (±): 0.01°

  • Brake diameter: 13.9 in (353 mm)

  • Brake holding torque: 250 ft-lbf (339 Nm)

  • Control type: Interpolated motion and positioning

• Secondary Spindle (S.A.E / Metric)

  • Chuck size: 8.3 in (210 mm)

  • Spindle nose: A2-5

  • Drive system: Direct speed, belt drive

  • Max rating: 15.0 hp (11.2 kW)

  • Max speed: 4000 rpm

  • Max torque: 100.0 ft-lbf @ 870 rpm (135.6 Nm @ 870 rpm)

  • Spindle bore ø (non-through): 0.81 in (20.7 mm)

• Secondary Spindle C Axis (S.A.E / Metric)

  • Max rating: 5.0 hp (3.7 kW)

  • Max speed: 60 rpm

  • Positioning (±): 0.01°

  • Brake diameter: 8.5 in (216 mm)

  • Brake holding torque: 140 ft-lbf (190 Nm)

  • Control type: Interpolated motion and positioning

• Secondary Spindle Positioning (M119) (S.A.E / Metric)

  • Positioning (±): 0.02°

  • Brake diameter: 8.5 in (216 mm)

  • Control type: Positioning only

• Turret (S.A.E / Metric)

  • Number of tools: 12 stations

  • OD vs ID tools: Any combination (will vary with turret)

  • Boring bar rear clearance (from back of turret): 4.00 in (102.0 mm)

• Live Tooling (S.A.E / Metric)

  • Max speed: 4000 rpm

  • Drive ratio: 1:1

  • Tooling: BMT65

• General (S.A.E / Metric)

  • Coolant capacity: 55 gal (208 L)

• Air Requirements (S.A.E / Metric)

  • Air required: 4 scfm @ 100 psi (113 L/min @ 6.9 bar)

  • Inline air hose: 3/8 in

  • Coupler (air): 3/8 in

  • Air pressure min: 80 psi (5.5 bar)

• Electrical Specification (S.A.E / Metric)

  • Drive system: Direct speed, belt drive

  • Spindle power: 30.0 hp (22.4 kW)

  • Input AC voltage (3 phase) - Low: 220 VAC; Full load amps (Low): 70 A

  • Input AC voltage (3 phase) - High*: 440 VAC; Full load amps (High*): 35 A

• Dimensions - Shipping (S.A.E / Metric)

  • Domestic pallet: 171 in x 90 in x 98 in (434 cm x 229 cm x 249 cm)

  • Export pallet: 171 in x 90 in x 98 in (434 cm x 229 cm x 249 cm)

Additional equipment

• Bar feeder
