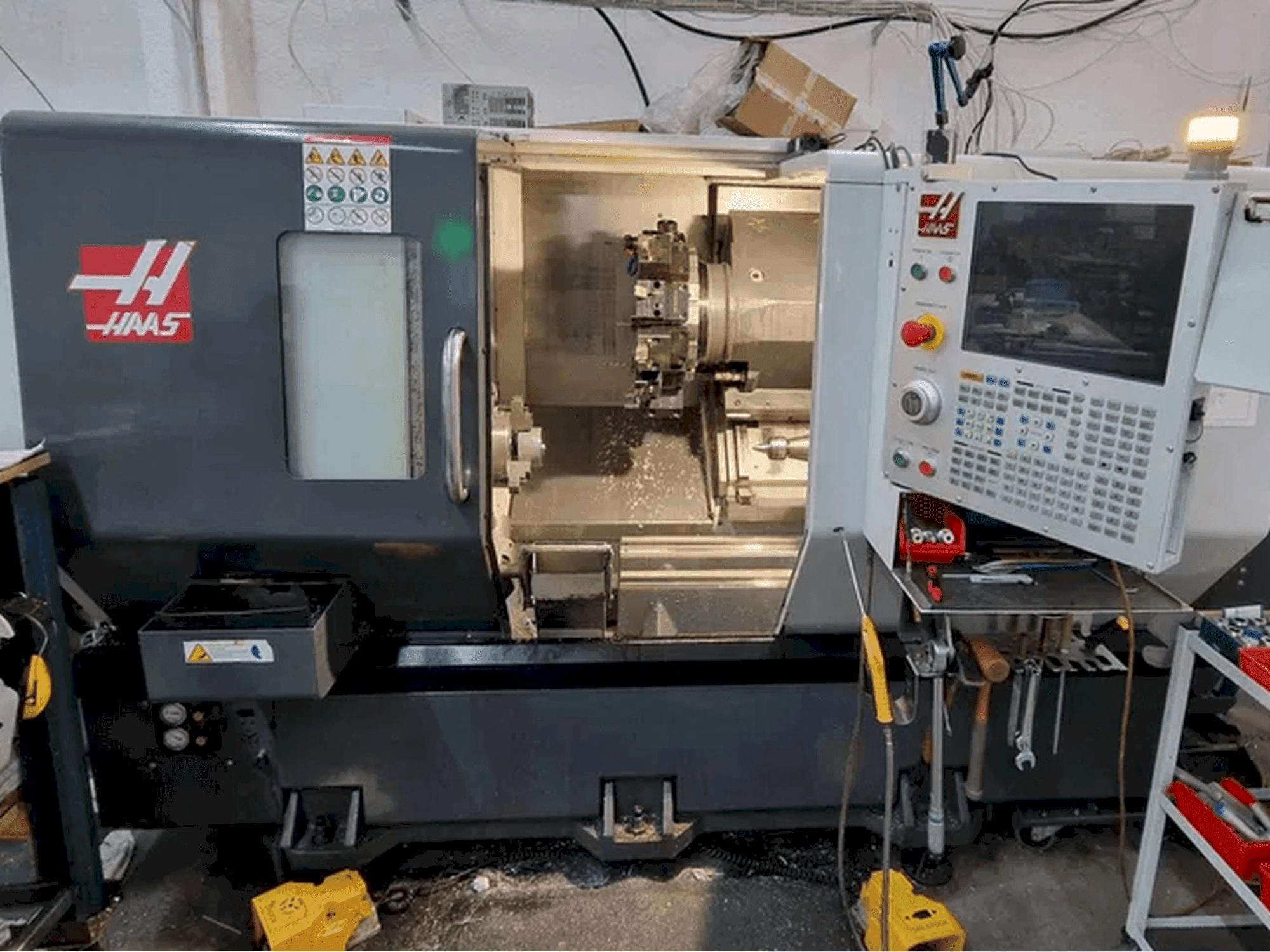

HAAS - ST-20YPL-TUR-HAA-2019-00002

Additional equipment

• ATP – Automatic tool probe
• Install Kit – Bar feeder installation kit with adapters for bar diameters 9–44 mm /
• Programmable, pneumatically operated finished part catcher (max. part dimensions: 108 mm x 54 mm, max. weight: 2.27 kg)
• CONVEYOR – Chip conveyor (belt type)
• LINER ADAPTER 2.00 – Haas liner adapter for spindle with bar diameter 2" (51 mm)
• HAAS Bar Feeder – Compatible with HAAS lathes (ST-10 to ST-35), for automatic bar feeding
• LT-6K-UP – Option to increase the speed of driven tools up to 6000 rpm
• PCAT – Pneumatic part catcher, programmable, for parts up to 96 mm x 152 mm
• PTS – Hydraulic tailstock

Machine Benefits

Technical Machine Benefits

• Chuck size: 210 mm
• Maximum part length: 533 mm
• Maximum turning diameter: 298 mm
• Maximum cutting length: 572 mm
• Spindle bore capacity: 64 mm
• Bmt65 turret with 12 positions
• Driven tools, c-axis, max. Rotational speed 4000 rpm, max. Power 9. 0 kw
• Set of driven tool holders (3 straight + 3 angular)
• Hydraulically controlled tailstock
• Option to increase the maximum speed of driven tools from 4000 rpm to 6000 rpm

Extra Information

Machine still under power
