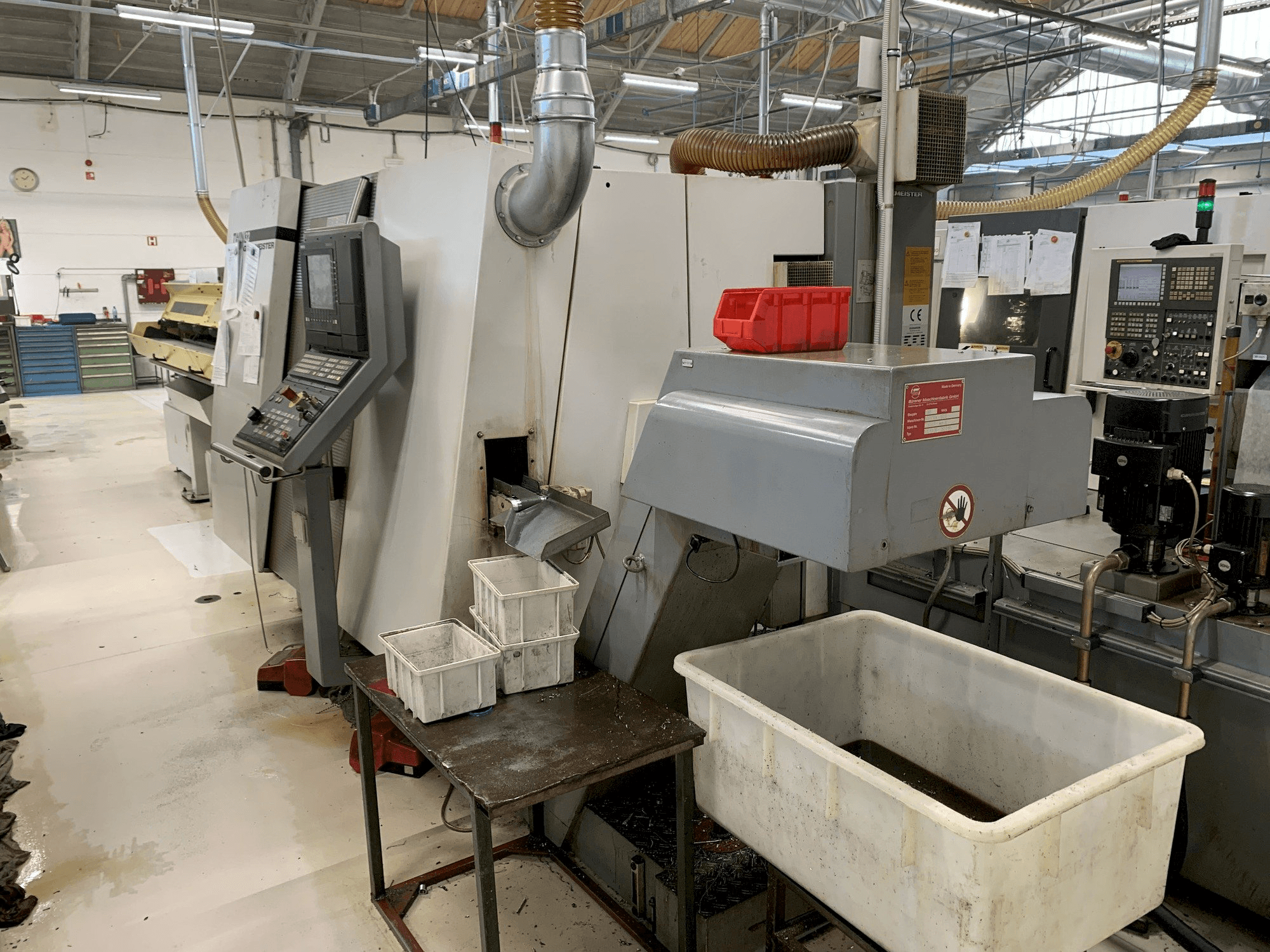

Front view of Gildemeister Twin 32 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister Twin 32

Photo Gallery

Gildemeister - Twin 32SI-TUR-GIL-2001-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Gildemeister Twin 32 Lathe machine

Show in original language

This Gildemeister Twin 32 Lathe machine was built in Germany in 2001. This machine is operated through a Siemens Sinumerik 840D control unit. It works with a spindle speed up to 8000 rpm. It includes a Barload magazine FMB as additional equipment. The machine is in very good condition.

Overview

brand: Gildemeister
year: 2001
MODEL: Twin 32
production hours: 38000
application type: Turning
Location: Slovenia
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - Gildemeister Twin 32

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 840D

Dimensions

Machine Weight: 6000 kg

Movement

Number of Axes: 7
X-axis Travel: 220 mm
Y-axis Travel: 50 mm
Z-axis Travel: 320 mm

Technical Specification

Spindle Speed: 8000 RPM

Additional Information

Additional equipment

Barload magazine FMB

Machine Benefits

Qualitative Machine Benefits

Good condition
Only oil has been used as coolant
All books and manual
20x fixed tool holders + 20x live tool holders
C axis on both spindles
Sub spindle high pressure coolant cleaning
High pressure coolant pumps with coolant filtration
Live tools on both turrets
Linaer x axis for high precision
Hainbuch bzi 42 collets clamping system

Technical Machine Benefits

Spindle to spindle distance: 580 mm
Spindle 1 bar diameter max. : 36 mm
Spindle 2 bar diameter max. : 36 mm
Slide 1 (top) plan path x / longitudinal path z: 220/ 320 mm
Slide 2 (low) plan path x / longitudinal path z: 120/ 345 mm
Slide 2 (low) rapid traverse x / y / z: 30/30 m / min
Slide 1 (top) rapid traverse x / y / z: 30/15/30 m / min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
