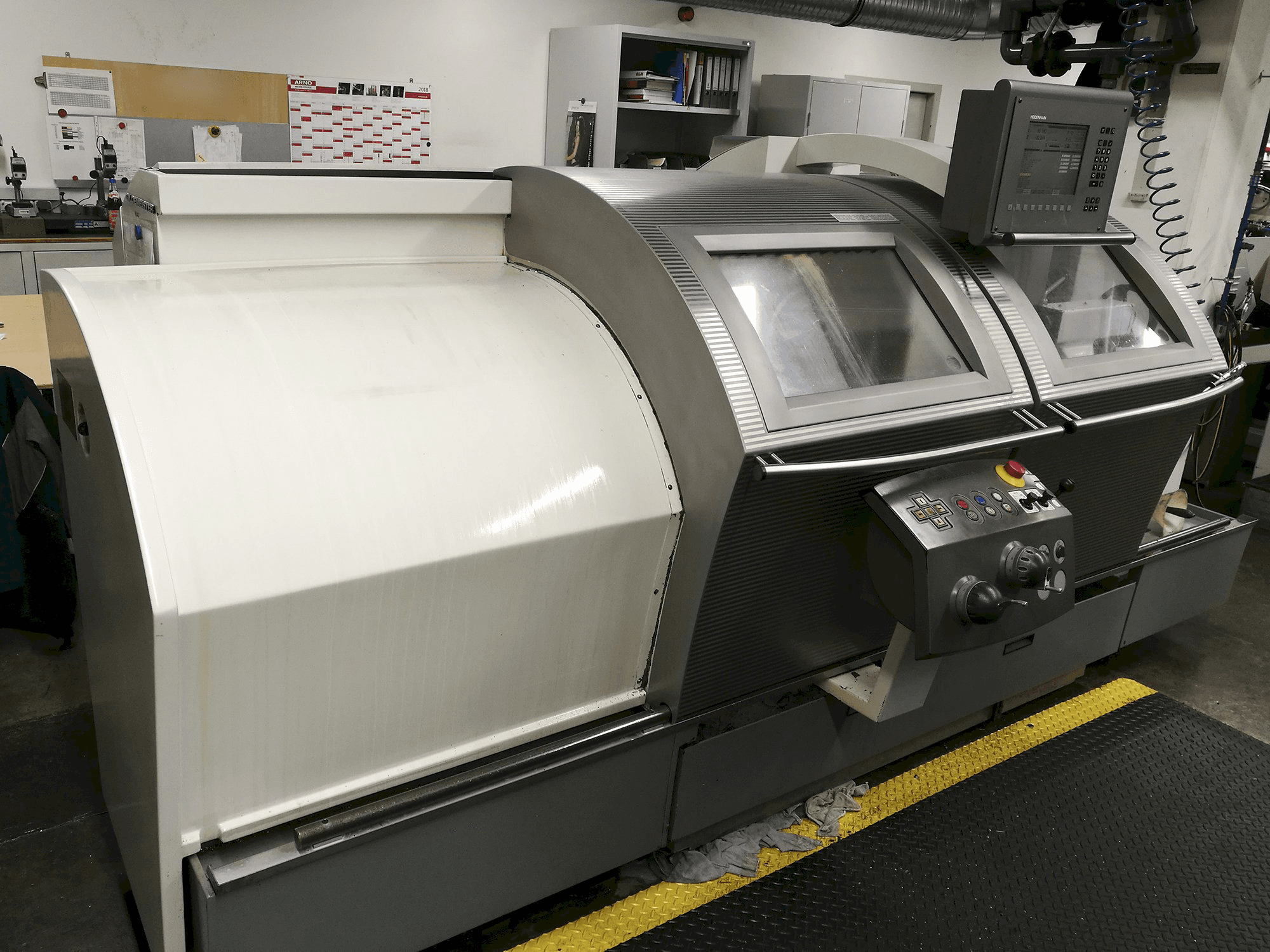

Left view of Gildemeister NEF 520 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister NEF 520

Photo Gallery

Gildemeister - NEF 520DE-TUR-GIL-2001-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Gildemeister NEF 520 - 2001 - Lathe For Sale

Show in original language

This Gildemeister NEF 520 Lathe from 2001 was manufactured in 2001 in Germany and has an overall production time of 15356 working hours. Equipped with a Heidenhain Plus 3110 Control unit, this machine has mainly worked with tool steel with 100 mm diameter during the past and stands out due to its large distance between centres. A big bundle of tool holders and clamping jaws is included in the delivery.

Overview

brand: Gildemeister
year: 2001
MODEL: NEF 520
production hours: 15356
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: HEIDENHAIN

Technical Information - Gildemeister NEF 520

General Data

Measurements width: 3400 mm
Measurements depth: 1953 mm
Measurements height: 1825 mm
Machine weight: 3100 kg

Control Unit

Model: Plus 3110
CNC main language: German
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 10-3000 1/min

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 1350 mm
Z-AXIS Movement: 260 mm

Turret

Number of turrets: 1

Media

Main electronic connection: 400 V
Power consumption: 24 kVA

Additional Equipment

- 2x Tool holder (Coromant Capto)
- 1x New Tool holder (Coromant Capto)
- 3x Tool holder with prisma (Coromant Multifix)
- 1x Tool Holder 40mm (Coromant Multifix)
- 1x Tool Holder 50mm (Coromant Multifix)
- 1x Tool Holder (Coromant Multifix Standard)
- 22x Clamping Jaws

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
