Gildemeister CTX 400 Serie 2

Photo Gallery

Gildemeister - CTX 400 Serie 2DE-TUR-GIL-2002-00005

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Gildemeister CTX 400 Serie 2 | Horizontal Lathe

Show in original language

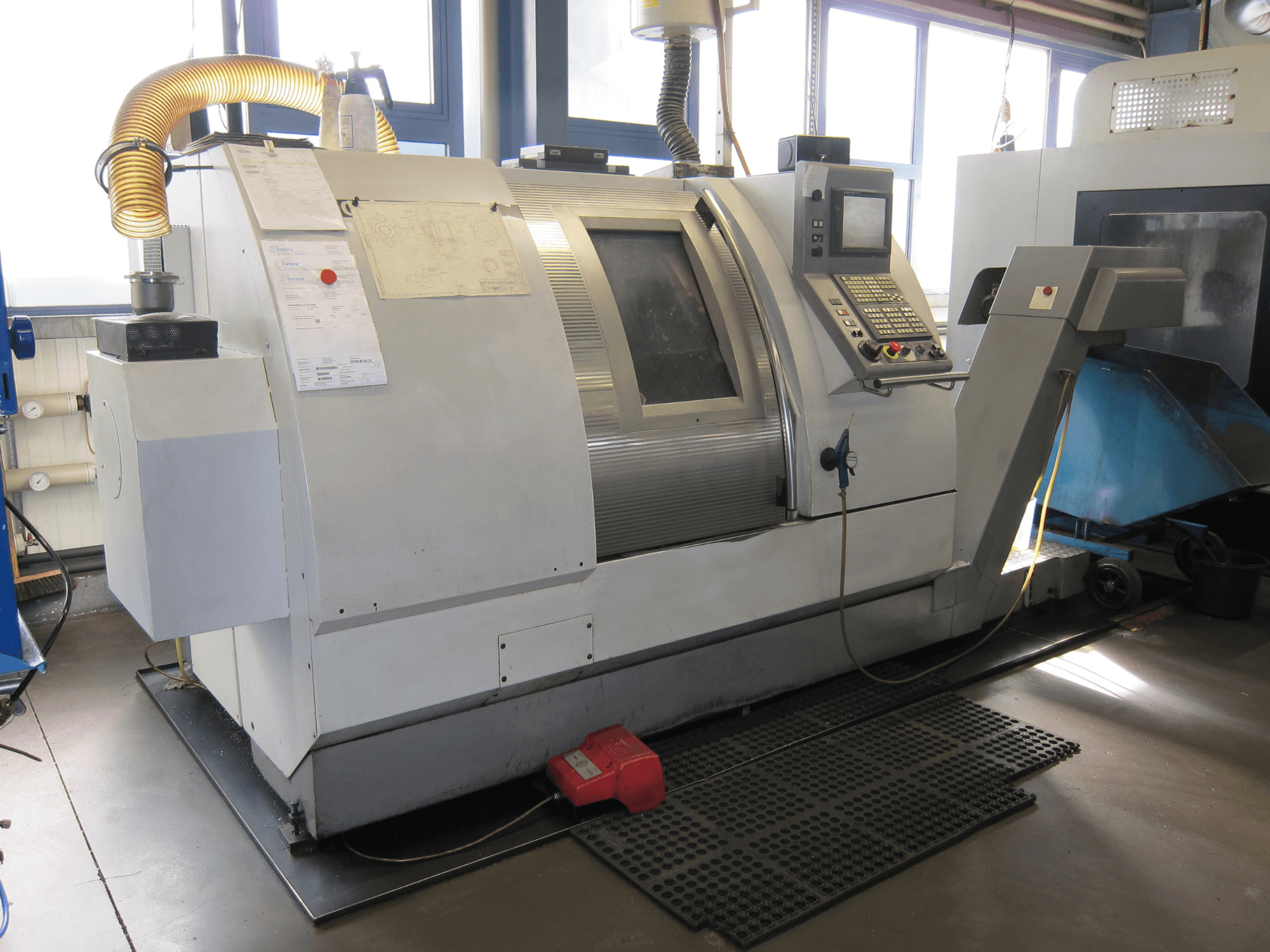

This 3-axis Gildemeister CTX 400 Serie 2 was manufactured in 2002. It features a spindle speed of up to 5,000 rpm and a z-axis travel of 635 mm, along with an x-axis travel of 570 mm over the bed. The machine includes a 12-position turret and is equipped with a 3-jaw chuck, chip conveyor, and coolant system. If you are looking to get high-quality turning capabilities, consider the Gildemeister CTX 400 Serie 2 machine we have for sale. Contact us for further details.

Overview

brand: Gildemeister
year: 2002
MODEL: CTX 400 Serie 2
production hours: 22542
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Gildemeister CTX 400 Serie 2

Control Unit

Control Brand: FANUC
Control Model: Series 21i-T

Movement

Number of Axes: 3
X-axis Travel: 570 mm
Y-axis Travel: 206 mm
Z-axis Travel: 635 mm

Technical Specification

Counter Spindle: No
Driven Tools: Yes
Spindle Speed: 5000 RPM

Additional Information

X-axis travel: max. 570 mm (over bed) / 420 mm (over slide)
Voltage: 400 V
Frequency: 50 Hz
Power capacity: 44 kVA
Rated current: 64 A
Main fuse: 80 A
Control voltage: 230 V (AC) / 244 V (DC)
Spindle hours: 22,542 hours
Feed time: 8 hours 4 minutes
Turret: 12-position turret
Tooling capability: driven tools; C-axis displayed on screen

Additional equipment

3-jaw chuck
Chip conveyor
Coolant system
Workspace lighting
Optional: Tool Holder Package
Optional: Schunk Rota NCD 210-66 three-jaw chuck

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
