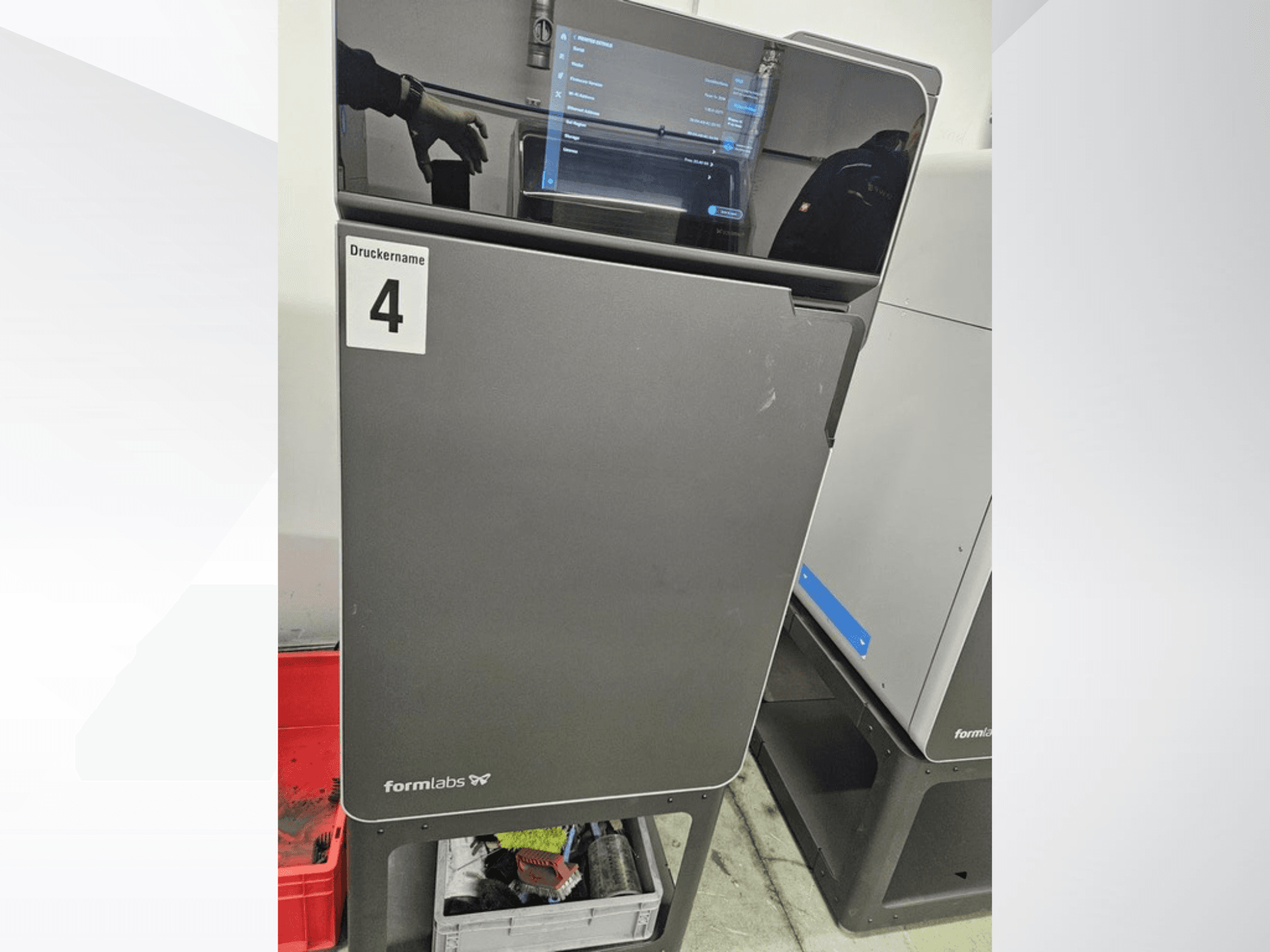

Plastic 3D printer manufactured in 2023. This FORMLABS Fuse 1+ 30W features Selective Laser Sintering (SLS) technology with a build volume of 165 × 165 × 300 mm. It is equipped with a 30 W Ytterbium Fiber Laser and a 10.1" interactive touchscreen for user-friendly operation. If you are looking to get high-quality 3D printing capabilities, consider the FORMLABS Fuse 1+ 30W machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: FORMLABS
- year: 2023
- MODEL: Fuse 1+ 30W
- application type: 3D Printing
- Location: Austria
- machine type: Plastic 3D Printer
Technical Information - FORMLABS Fuse 1+ 30W
Dimensions
- Machine Height: 1065 mm
- Machine Length: 685 mm
- Machine Weight: 120 kg
- Machine Width: 645 mm
Movement
- Number of Axes: 3
- X-axis Travel: 165 mm
Additional Information
4 units available
Technology: Selective Laser Sintering (SLS)
Build Volume (W × D × H): 165 × 165 × 300 mm
Layer Thickness: 110 µm
Build Speed (20% Packing Density): 0.5 L/h
Laser Type: Ytterbium Fiber Laser
Laser Power: 30 W
Laser Wavelength: 1070 nm
Laser Spot Size (FWHM): 247 µm
Beam Divergence: 3.24 mrad
Galvanometer: Formlabs Custom 3rd Generation
Hopper Capacity: 14.5 L
Connectivity: Wi-Fi (2.4 GHz + 5 GHz)
Connectivity: Gigabit Ethernet (1000 Mbit)
USB Interface: USB 2.0
Display: 10.1" Interactive Touchscreen
Display Resolution: 1280 × 800
Power Supply (EU): 230 VAC, 7.5 A, Single Phase
Power Frequency: 50/60 Hz
Material Refresh Rate: 30–50%
Supports Required: No
Laser Safety Class: Class 1 Laser Product
Optional, not included:
Fuse Sift Station (Compatible Post-Processing Unit: Fuse Sift)
Optional Feature: Nitrogen (Inert Gas) Printing
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
