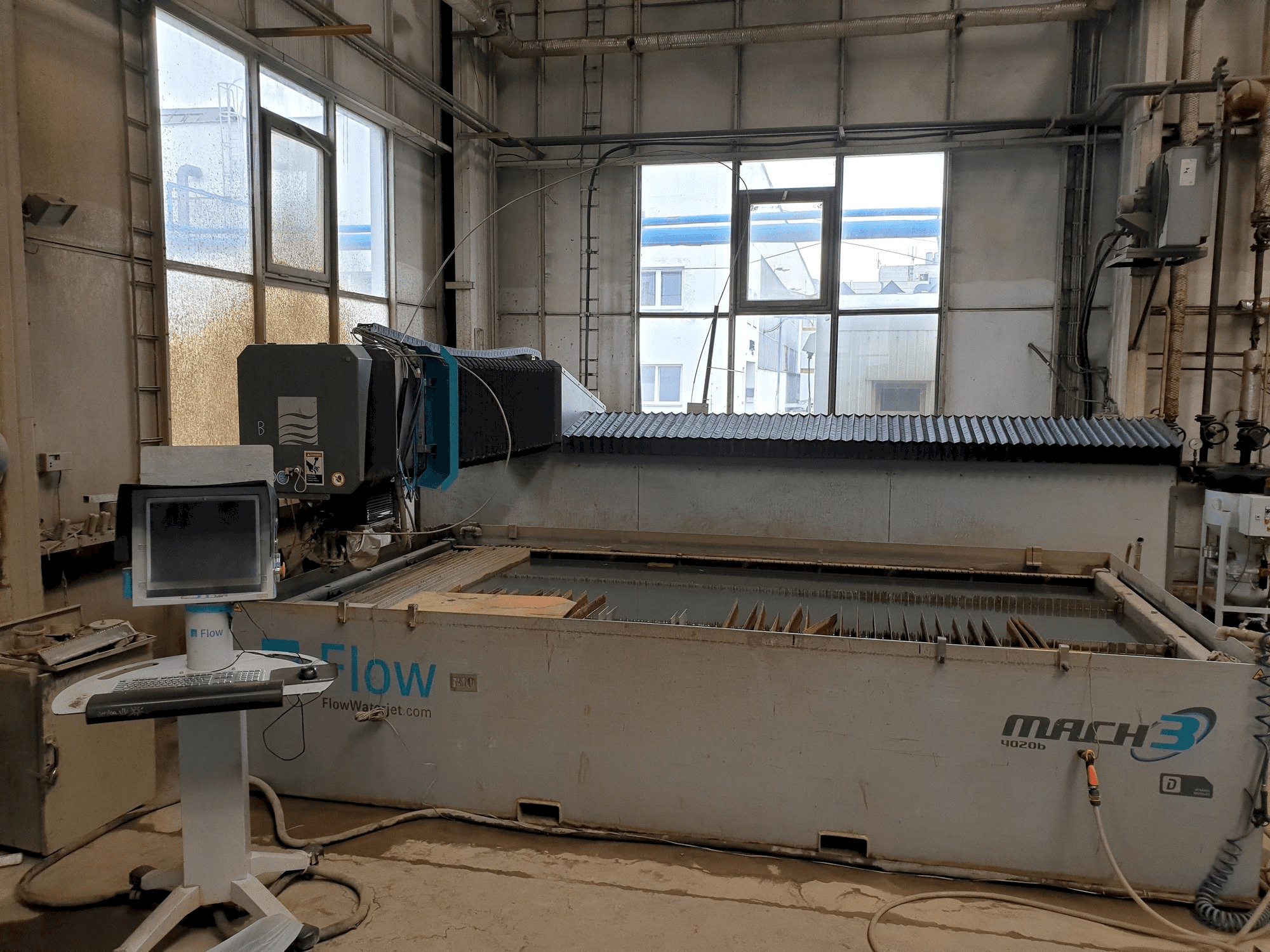

This Flow Mach 3-4020B Waterjet Cutting Machine was manufactured in 2011 in the United States and has been working for 11500 hours. It is equipped with a FlowMaster PC based Controller with professional software. It counts with a speed range up to 12700 mm/min, capable of cutting steel sheets up to 200 mm of thickness.
Overview
- brand: Flow
- year: 2011
- MODEL: Mach 3-4020B
- production hours: 11500
- application type: Water Cutting
- Location: Czech Republic
- machine type: Waterjet cutting machines
- availability: Sold
- GINDUMAC ID: CZ-WAT-FLO-2011-00001
Technical Information
General Data
- Measurements width: 5400 mm
- Measurements depth: 4500 mm
- Measurements height: 2300 mm
Controller
- Brand: Flow Master
Movement
- X-AXIS Movement: 4000 mm
- Y-AXIS Movement: 2000 mm
- Z-AXIS Movement: 190 mm
Workpiece
- Workpiece x: 4100 mm
- Workpiece y: 2100 mm
Max Material thickness
- Steel: 200 mm
Media
- Pump drive power: 6500 bar
Additional Information
- Technical Machine Benefits:
- - Speed range: from 0 up to 12,700 mm/min
- - Rapid traverse maximum: up to 12,700 mm/min
- - Contouring maximum: up to 7,620 mm/min
- - Dynamic waterjet
- - Laserpointer, clamping system
- - Premium catcher tank – stainless steel
- - Flow 6,500 bar hyperpressure technology
- - Cooling system for flow intensifier pumps
- - Flow abrasivejet cutting system paser®
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
