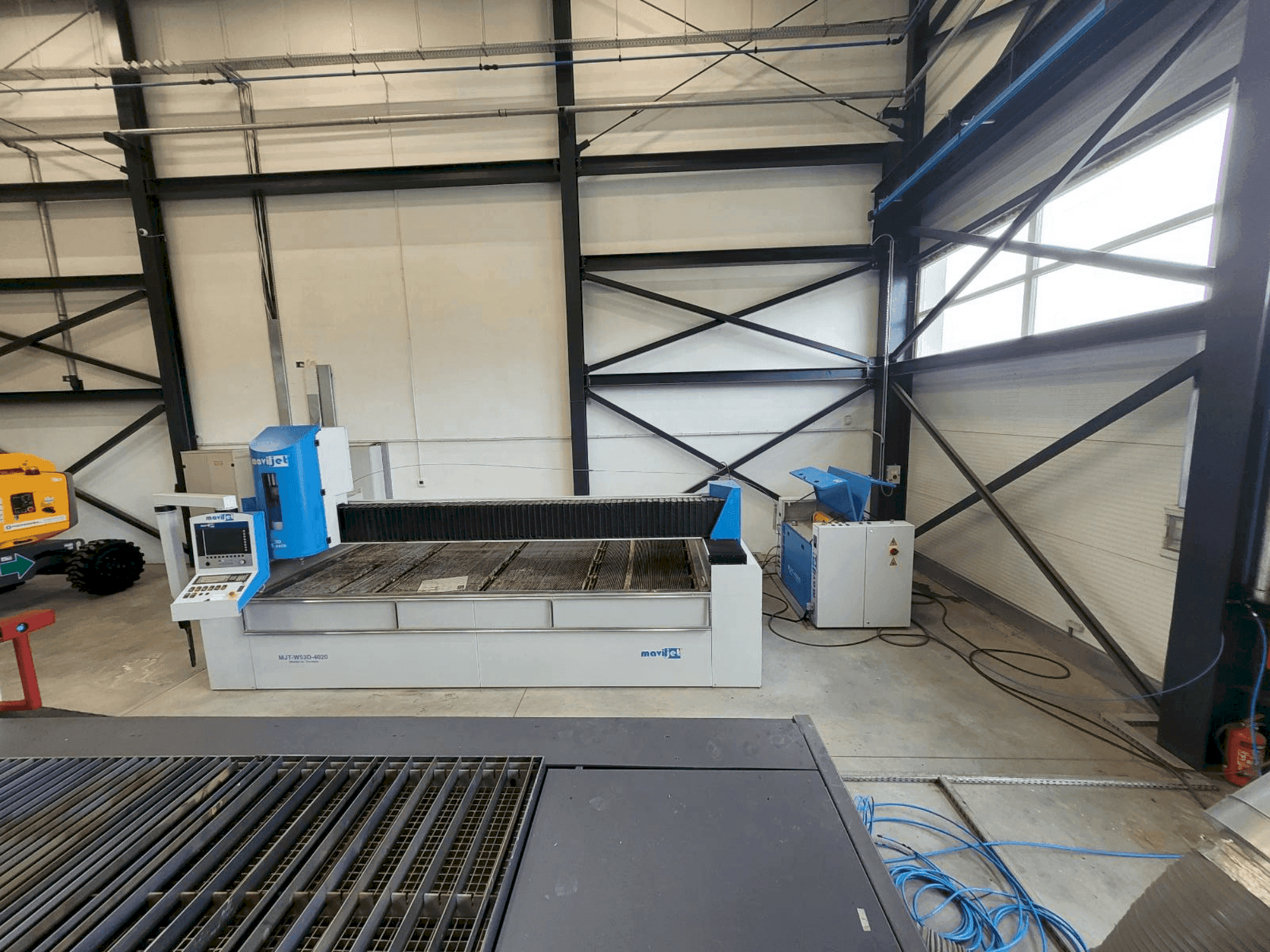

MAVIJET - MJT-W53D- 4020PL-CUT-MAV-2020-00001

Additional Equipment

• - Smart Abrasive Reserve Tank Included
• - Tank Capacity: 350 kg
• - Tank Pressure: 6 bar
• - Sand Dosing System: Adjustable via CNC (flow 50–1000 g/min)

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Axes: 5-axis waterjet cutting machine
  • - Cutting size: 4000 × 2000 × 250 mm
  • - Type: cnc 5-axis, bridge type
  • - Step accuracy: 0. 01 mm
  • - Controller: esa 5-axis controller with ethernet, usb, and manual handwheel (x/y/z)
  • - Cam program: semi-automatic nesting / automatic input-output system
  • - Rapid traverse speed: 30000 mm/min

Extra information

• - Condition: Very good technical condition, low number of working hours Movement Axis Motors: X-axis: 1 × 3.2 Nm servo motor Y-axis: 2 × 3.2 Nm servo motors Z-axis: 1 × 1.6 Nm servo motor with brake A-axis: 1 × 1 Nm servo motor with brake C-axis: 1 × 1 Nm servo motor with brake Transmission System: Helical hardened racks and pinions Linear Bearing: THK linear slides and rails Injection Unit High Pressure Pump: MJT-4000 Operating Pressure: 4000 bar constant (24h non-stop) Motor: 50 HP / 37 kW, 1500 rpm, 50/60 Hz High Pressure Flow Rate: 2.3–3 L/min Pressure Adjustment: 1000–4000 bar in 500 bar steps Orifice Diameters: 0.18 / 0.25 / 0.30 / 0.35 mm Hydraulic Pump: 71 cm³ (103 L), axial piston pump max. 200 bar Cooling Water Flow: 30 L/min Optimum Water Inflow: 4 bar Adjustable Pressure Water Pump: 10–16 bar
