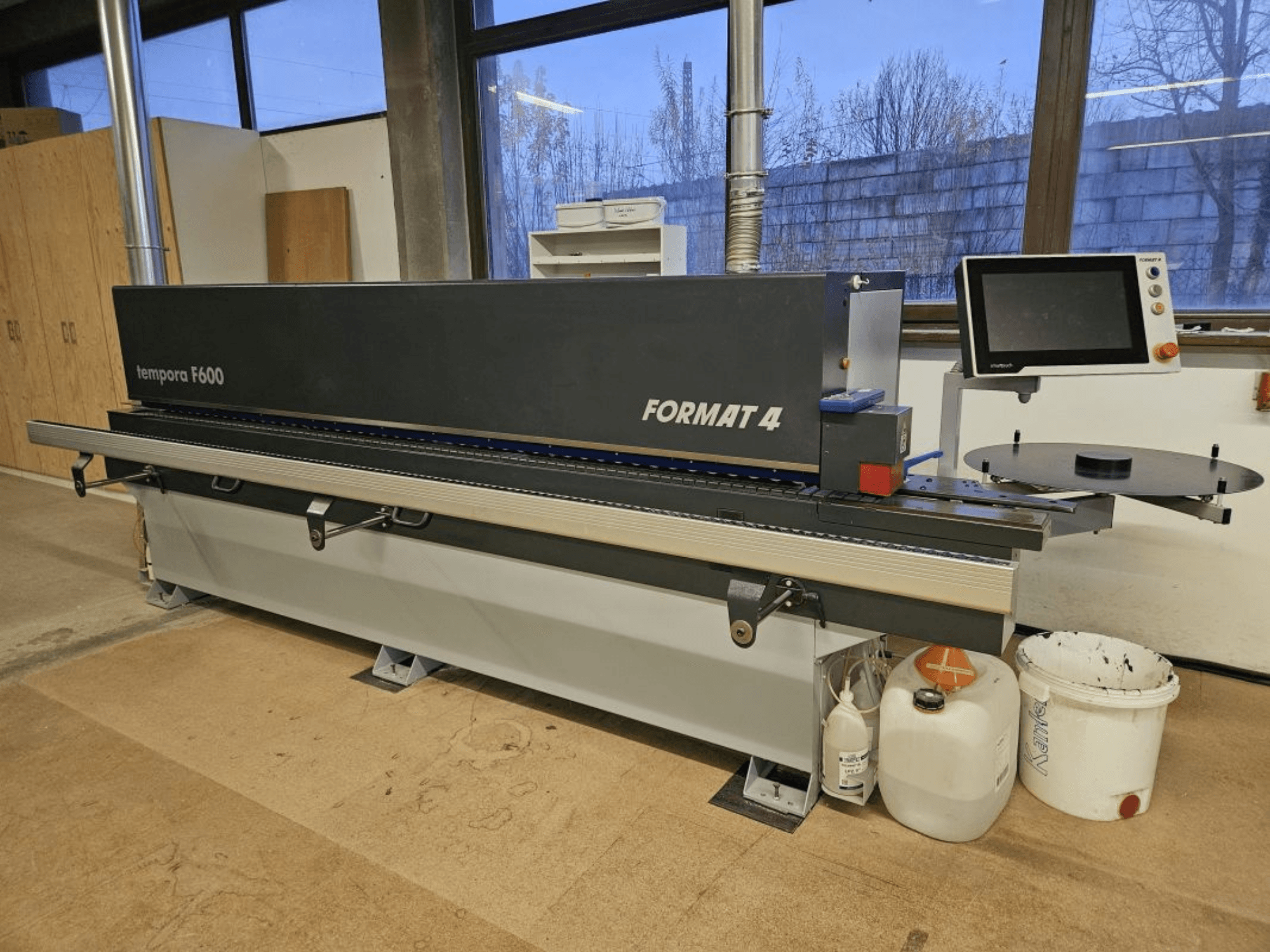

FELDER - FORMAT 4 Tempora60.06LXDE-EDG-FEL-2019-00002

Control system: x-motion PLUS

Chain feed

• Feed speed: 10 m/min

• Drive motor: 0.75 kW (S6) – 1.1 kW (S6)

• Minimum workpiece length: 140 mm

• Minimum workpiece width: 70 mm

• Note: Minimum width varies depending on workpiece length, height, and surface finish.

Turntable edge magazine (rolled edge material)

• Turntable diameter: 750 mm

• Edge thickness: 0.4 – 3 mm

Extendable frame

• Workpiece support extendable up to 450 mm

Upper pressure bar

• Manually adjustable workpiece height: 8 – 60 mm

Edge feed

• For rolls and rigid material

Joining unit

• Power: 2.2 kW (2 × 1.1 kW)

• Diamond cutter Z2

• Speed: 12,000 rpm

Gluing unit

• Teflon-coated for 1.5 kg EVA or PUR granulate

• Ready after approx. 10 min heating time

• Tool-free quick-change system

Pressure unit

• Pneumatically controlled

• 1 driven and 2 conical pressure rollers

Shear

• For roll edge material thickness: 0.4 – 3 mm

Cutting unit

• Two high-frequency motors, each 0.35 kW, 12,000 rpm

• Pneumatically swiveling 0° – 10°

Multifunctional milling unit (x-motion PLUS)

• Flush and radius milling

• One HF motor top and bottom, each 0.75 kW, 12,000 rpm

• Each with 4 interchangeable blades

Corner processing unit

• For soft and postforming workpieces

• Front edge processing

• Edge thickness: 0.4 – 3.0 mm

• Workpiece height: 10 – 60 mm

Radius scraper unit

• 2-axis motor-driven, position-controlled

• Pneumatic release function

Polishing unit

• Top and bottom
