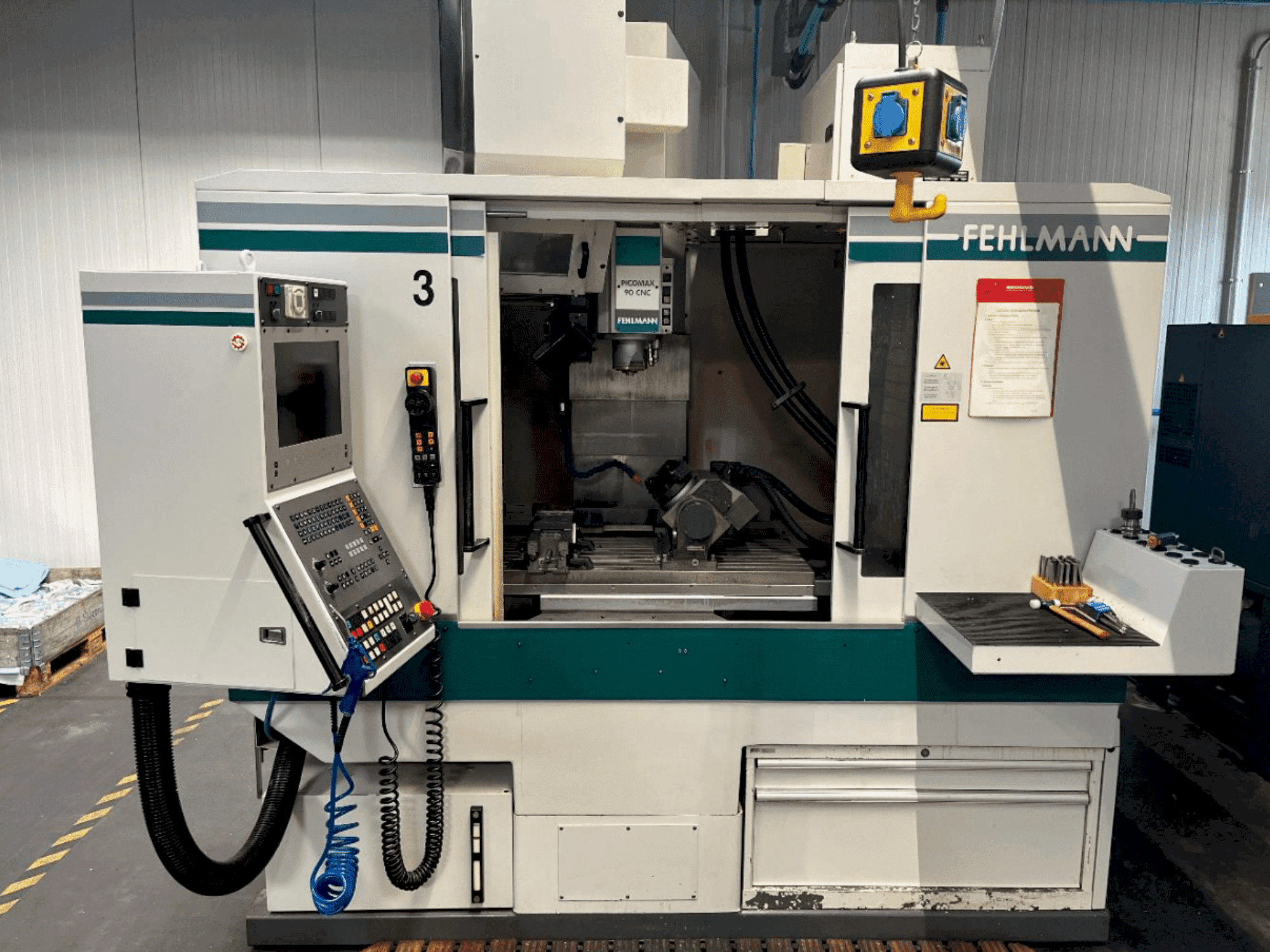

Front view of FEHLMANN Picomax 90-M machine
Front view of FEHLMANN Picomax 90-M machine

FEHLMANN - Picomax 90-MDE-MIL-FEH-2002-00001

£ 17,608
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis FEHLMANN Picomax 90-M vertical machining centre was manufactured in 2002. It features a spindle speed range from 50 to 18,000 rpm, a table size of 920x380 mm, and a maximum workpiece weight of 250 kg. The machine includes a 4th and 5th axis dividing head, coolant device, and a RENISHAW measuring probe. Ideal for detailed and precise machining tasks. For more information about this vertical machining centre, please reach out to us.

Overview

  • brand: FEHLMANN
  • year: 2002
  • MODEL: Picomax 90-M
  • production hours: 23100
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre

Technical Information - FEHLMANN Picomax 90-M

Dimensions

  • Machine Depth: 2200 mm
  • Machine Height: 3000 mm
  • Machine Weight: 3200 kg
  • Table Length: 920 mm
  • Table Width: 380 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 500 mm
  • Y-axis Travel: 350 mm
  • Z-axis Travel: 610 mm

Technical Specification

  • Spindle Power: 6.3 kW
  • Spindle Speed: 18000 RPM
  • Taper Size: SK 30
  • Through-spindle Coolant: Yes

Additional Information

Machine Benefits

Technical Machine Benefits

  • Comprehensive feed rates for x, y, and z axes (1 - 20,000 mm/min)
  • Direct measuring system for x and y axes
  • Drilling capacity in steel: 25 mm
  • Thread cutting in steel: m 24
  • Milling capacity: 100 cm³/min
  • Connection: 50 hz 3x 400 volt
  • Total power requirement: 20 kw

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
