FANUC Robodrill Alpha D21LiB5

Photo Gallery

FANUC - Robodrill Alpha D21LiB5GB-MIL-FAN-2016-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ FANUC Robodrill Alpha D21LIB5 - Vertical Machining Center For Sale

Show in original language

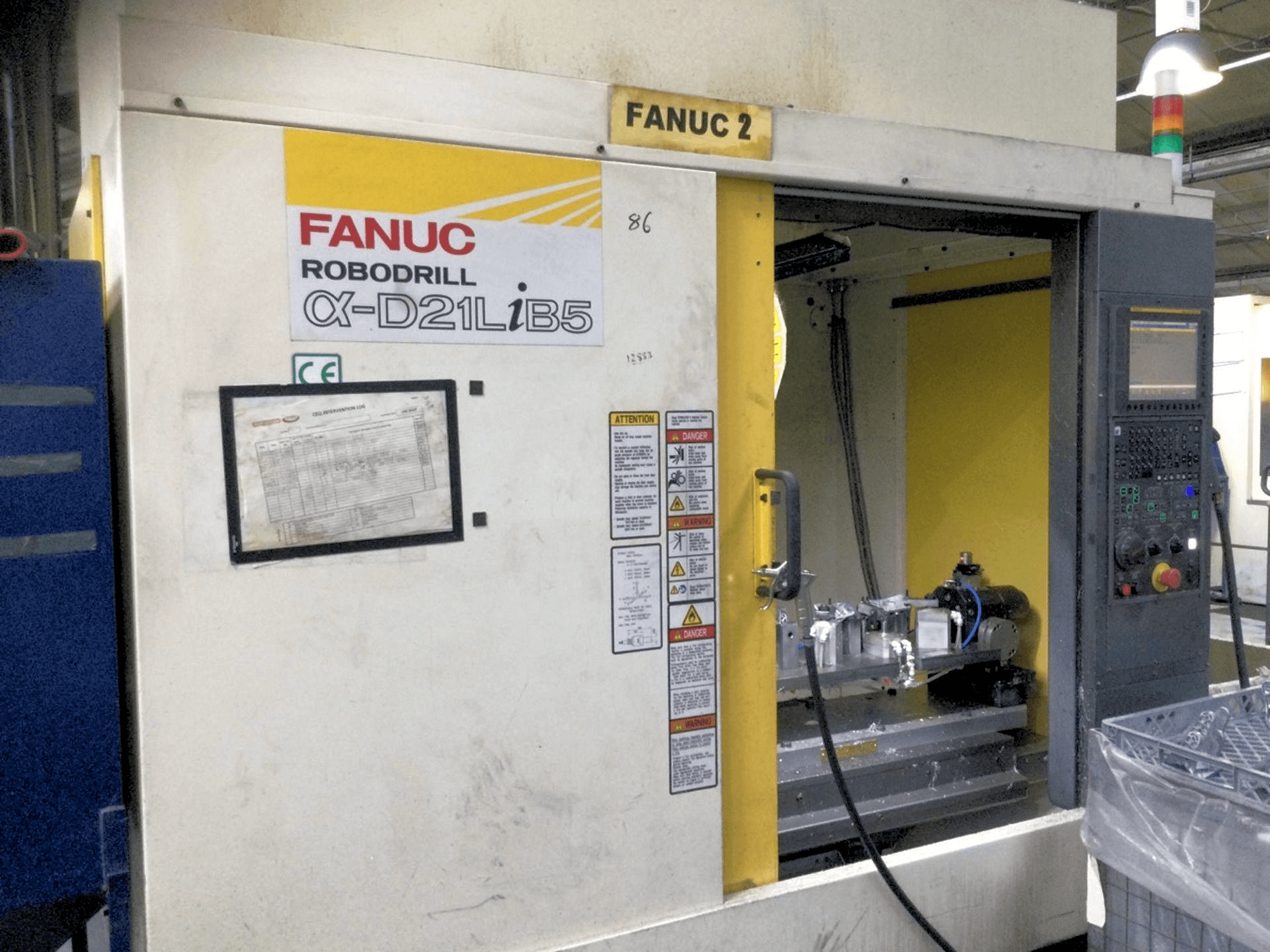

This FANUC Robodrill Alpha D21LiB5 Vertical Machining center was manufactured in the year 2016 in Japan. It is equipped with a Fanuc Series 31I MODEL B5 control unit and has 3+1 axis. The machine has a spindle speed of 10000 rpm, is in very good condition and well maintained.

Overview

brand: FANUC
year: 2016
MODEL: Robodrill Alpha D21LiB5
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - FANUC Robodrill Alpha D21LiB5

Control Unit

Control Brand: FANUC
Control Model: Series 31I MODEL B5

Dimensions

Machine Weight: 2200 kg
Table Length: 850 mm
Table Width: 410 mm

Movement

Number of Axes: 4
X-axis Travel: 700 mm
Y-axis Travel: 400 mm
Z-axis Travel: 330 mm

Technical Specification

Max. Tool Weight: 3 kg
Spindle Power: 14.4 kW
Spindle Speed: 10000 RPM
Tool Stations: 21

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

Min - max height under spindle: 250 - 580mm
Rapid feedrates: 54m/minute
Tool setter
Integrated 4th axis and tailstock
Fume extractor
Coolant
High-torque spindle with bbt-30 option

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
