FANUC - M-410iC/315ES-ROB-FAN-2021-00001

£ 18,850
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

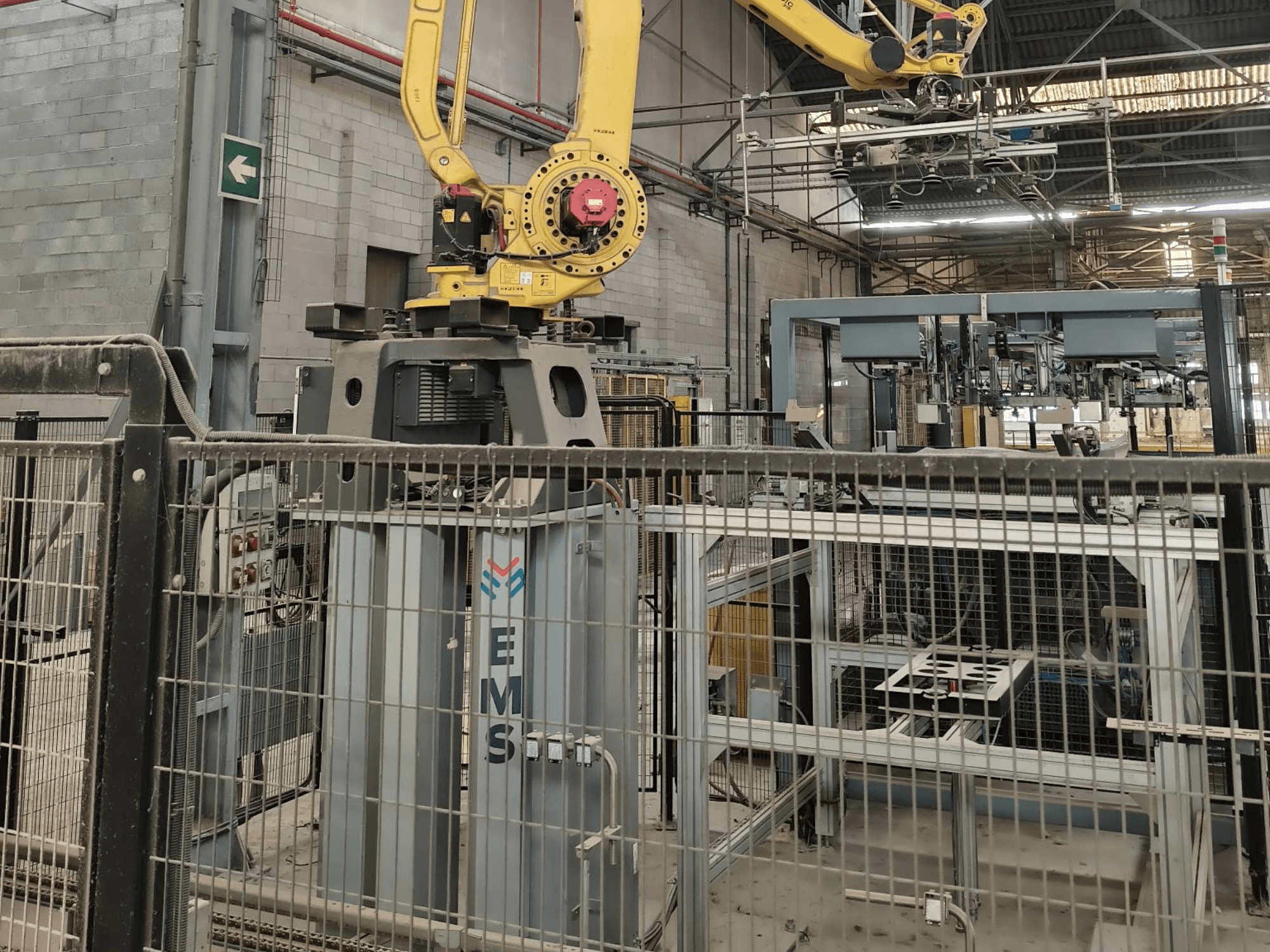

This 4-axis FANUC M-410iC/315 was manufactured in 2021. It features a maximum reach of 3,149 mm and a payload capacity ranging from 185 kg to 700 kg, depending on the variant. This robot arm is designed for palletizing and material handling applications. If you are looking to get high-quality automation capabilities, consider the FANUC M-410iC/315 robot arm we have for sale. Contact us for further details.

Overview

  • brand: FANUC
  • year: 2021
  • MODEL: M-410iC/315
  • application type: Robotics
  • Location: Spain
  • machine type: Robot Arm
  • control unit brand: FANUC

Technical Information - FANUC M-410iC/315

Control Unit

  • Control Brand: FANUC
  • Control Model: System R-30iB / R-30iB Plus

Dimensions

  • Machine Weight: 2850 kg

Movement

  • Number of Axes: 4

Technical Specification

  • Max. Handling Weight: 700 kg
  • Max. Reach: 3149 mm

Additional Information

  • Payload capacity: 185–700 kg (variant dependent: 185/315/500/700 kg)

  • Maximum reach: 3,143–3,149 mm

  • Axes: 4 (J1, J2, J3, J4)

  • Axis ranges and speeds:

    • J1: ±360°, 60–120°/s

    • J2: +144°, -0°, 60–120°/s

    • J3: +12°, -136°, 60–120°/s

    • J4: ±540°, 120–280°/s

  • Repeatability: ±0.05–±0.5 mm

  • Mechanical weight (robot): approx. 1,080–2,850 kg (depending on variant)

  • Controller weight: 140 kg

  • Controller power input: 380–415 / 440–480 VAC, 3-phase, 50/60 Hz

  • Apparent power: 10.5 kVA

  • Mounting position: Floor

  • Ingress protection: IP67 wrist; IP54 body (IP65 option available)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
