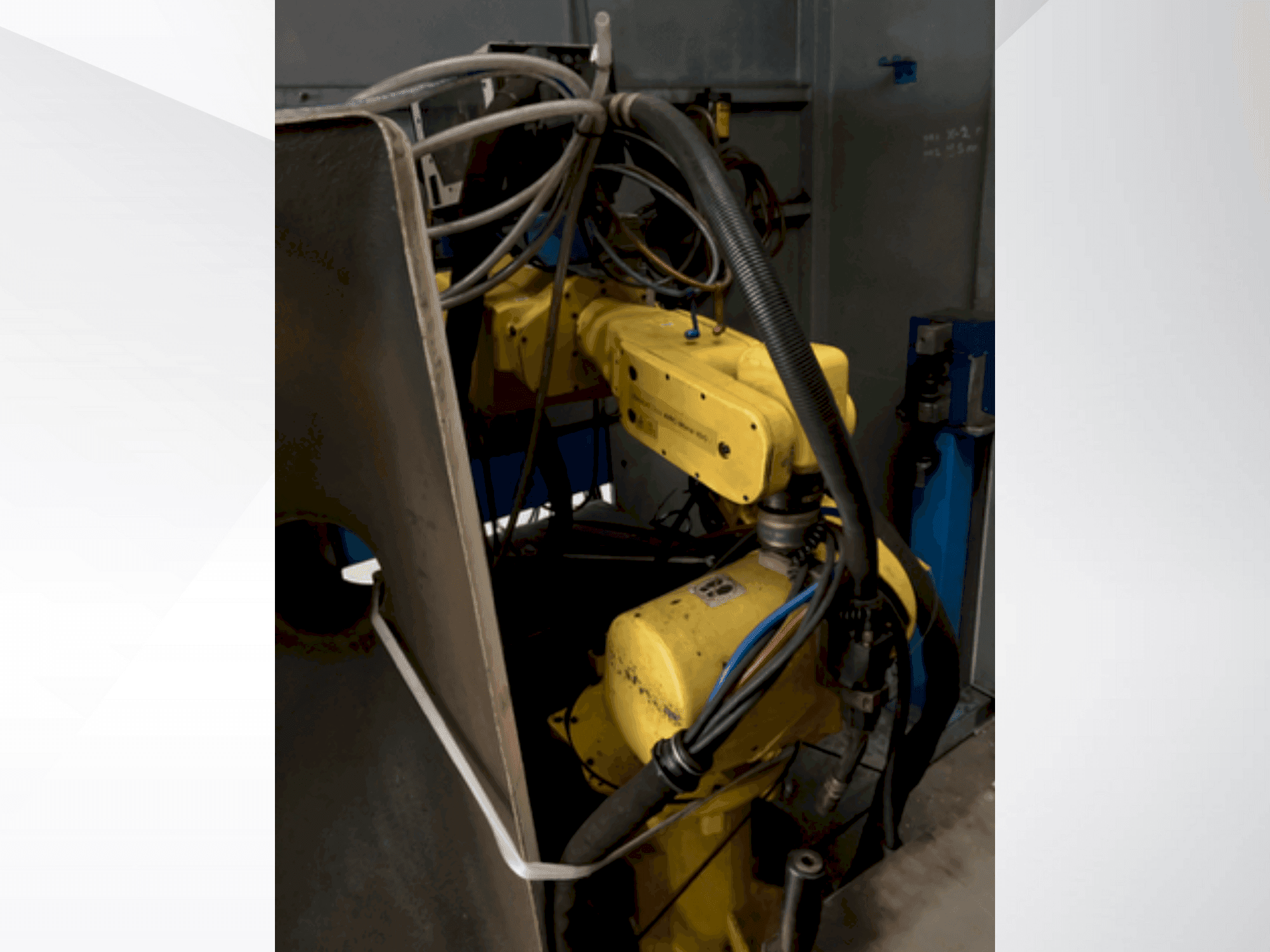

Front view of FANUC ARC Mate 100i machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FANUC ARC Mate 100i

FANUC - ARC Mate 100iNL-ROB-FAN-2000-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Automation Equipment
Used Robot machine FANUC ARC Mate 100i (2000) for sale | GINDUMAC.COM

Show in original language

This FANUC ARC Mate 100i Robot machine was manufactured in 2000. It has 6 axes and a payload capacity of 6 kg (13 lbs). It offers a reach of 1368 mm (54 in) with a repeatability of ±0.1 mm (.0039 in). It operates at the following motion speeds: J1-J3 at 120 °/s (2.09 rad/s), J4-J5 at 360 °/s (6.28 rad/s), and J6 at 450 °/s (7.85 rad/s). Its motion range includes J1 at -330°, J2 at -210°, J3 at -299°, J4 at -380°, J5 at -280°, and J6 at -640°. Contact us anytime for further information.

Overview

brand: FANUC
year: 2000
MODEL: ARC Mate 100i
application type: Robotics
Location: Netherlands
machine type: Robot Arm
availability: Sold

Technical Information - FANUC ARC Mate 100i

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 6 axes
- - Payload: 6 kg (13 lbs)
- - Reach: 1368 mm (54 in)
- - Repeatability: ±0. 1mm (. 0039 in)
- - Robot mass: 290 kg (639 lbs)
- - Structure: articulated
- - Robot motion speed: j2 120 °/s (2. 09 rad/s), j2 120 °/s (2. 09 rad/s), j3 120 °/s (2. 09 rad/s), j4 360 °/s (6. 28 rad/s), j5 360 °/s (6. 28 rad/s), j6 450 °/s (7. 85 rad/s)
- - Robot motion range: j1 - 330°, j2 - 210°, j3 - 299°, j4 - 380°, j5 - 280°, j6 - 640°

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
