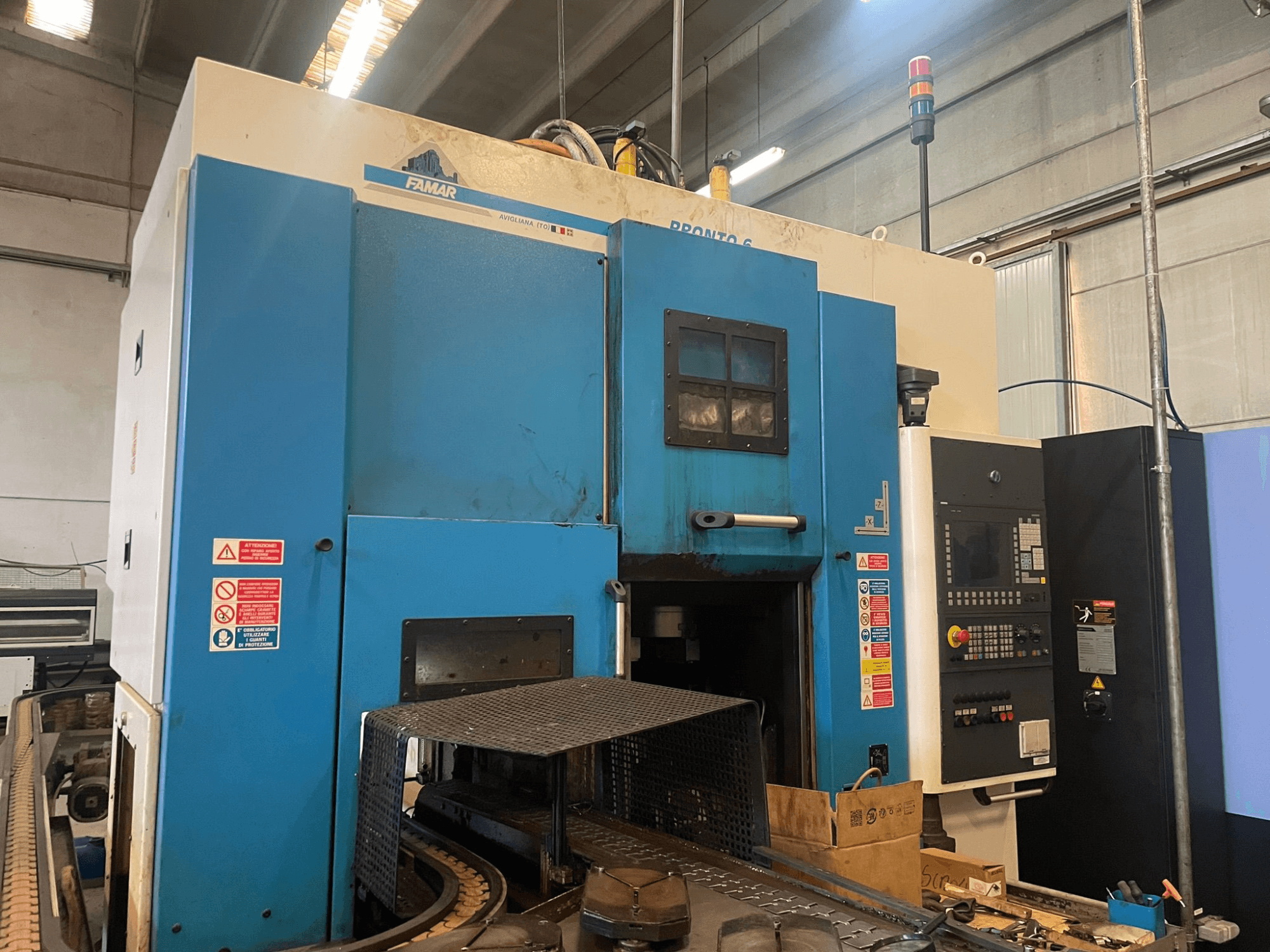

This 4-axis Famar Pronto 6 was manufactured in 2004 and fully overhauled in 2024. It features a maximum turning diameter of 250 mm and a turning length of 240 mm. The machine is equipped with a 12-position Sauter turret for driven tools and has a maximum spindle speed of 5,000 rpm. If you are looking to get high-quality turning capabilities, consider the Famar Pronto 6 vertical turning machine we have for sale. Contact us for further details.
Overview
- brand: Famar
- year: 2004
- MODEL: Pronto 6
- application type: Turning
- Location: Italy
- machine type: Vertical Turning Machine
Technical Information - Famar Pronto 6
Dimensions
- Machine Height: 2558 mm
- Machine Weight: 10000 kg
Movement
- Number of Axes: 4
- X-axis Travel: 340 mm
- Z-axis Travel: 215 mm
Technical Specification
- Driven Tools: Yes
- Spindle Power: 25 kW
- Spindle Speed: 5000 RPM
Additional Information
Capacity
Max turning diameter: 250 mm (also stated as maximum workable diameter: 250 mm)
Max turning length: 240 mm (also stated as maximum workable length: 240 mm)
Chuck diameter: 315 mm
Axes / Travels
Rapid traverse X-axis: 72 m/min
Rapid traverse Z-axis: 40 m/min
Rapid traverse Y-axis: 20 m/min
Main Spindle
Built-in motor spindle
Spindle nose: ASA 6
Max spindle torque: 146 Nm
Turret / Tooling
12-position Sauter turret for driven tools
Tool holder interface: VDI 40
Driven tools: Yes (12 powered positions)
Max driven tools power: 14 kW
Max driven tools torque: 80 Nm
Dimensions
Machine depth: 4,275 mm
Additional equipment
Automation/loader: Loading/unloading time 4–6 s
Transporter (automation) weight: 660 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
