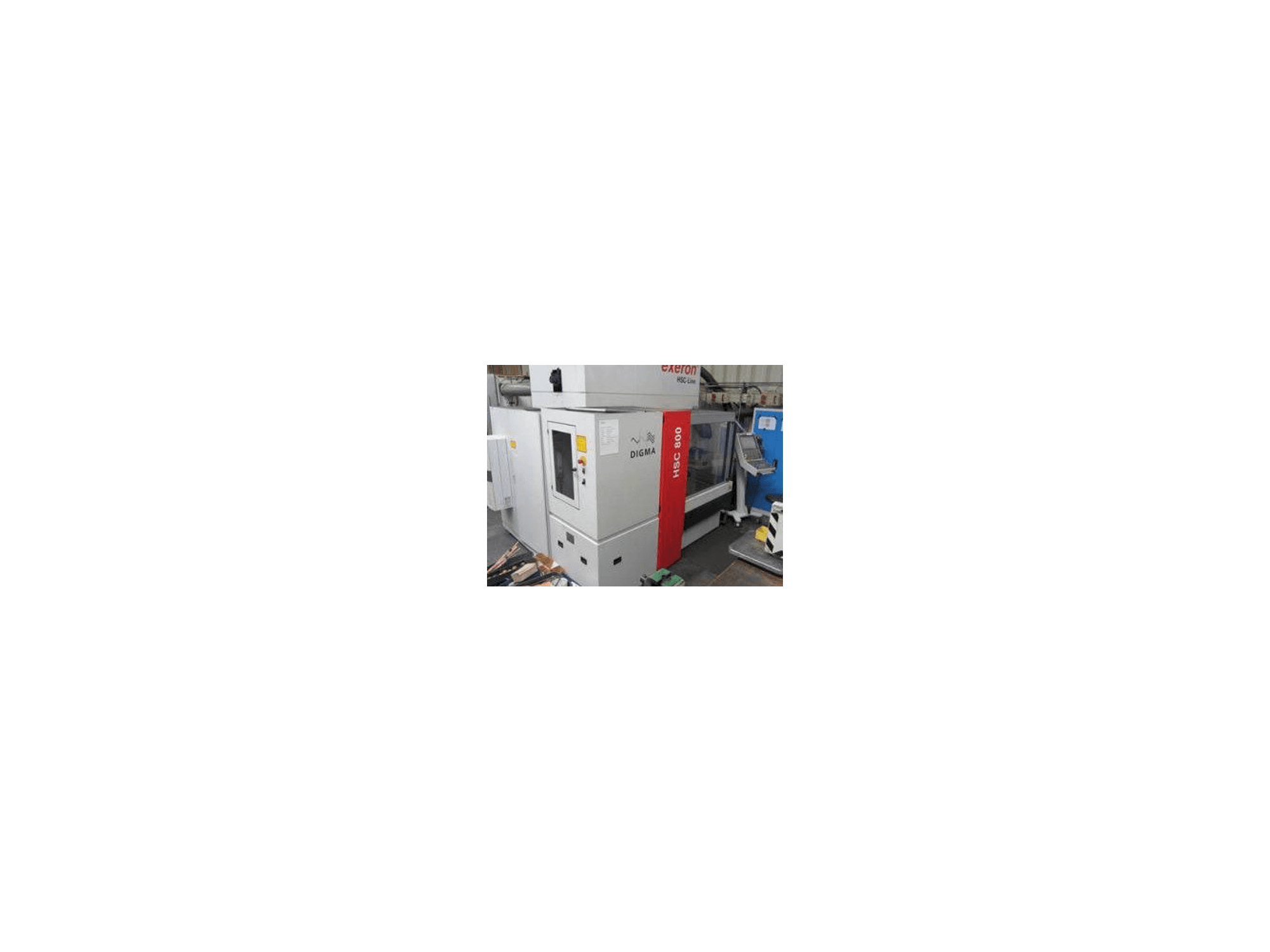

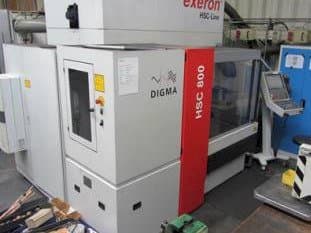

Exeron HSC 800

Photo Gallery

Exeron - HSC 800DE-MIL-EXE-2008-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

This Exeron HSC 800 Milling machine was manufactured in Switzerland in 2008. It has a record of 80743 hours, of which 8009 are Spindle (S1) hours. This 5 axis machine is equipped with a Heidenhain iTNC 530 Control unit. It incorporates a spindle speed up to 42000 rpm. This machine is fully functional.

Overview

brand: Exeron
year: 2008
MODEL: HSC 800
production hours: 80743
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Exeron HSC 800

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 42000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 500 mm

Tools

Max tool diameter: ø 16mm
Max tool length: 175 mm
Type of tool holder: HSK 40-E

Media

Main electronic connection: 400 V

Additional Information

Machine Benefits

Qualitative Machine Benefits

The machine is fully functional
Ceramic ball bearing with minimum quantity oil-air lubrication; automatic tool clamping

Technical Machine Benefits

Rotary table, no second pallet.
It is loaded via grid plates which are prepared outside and then only plugged on
Tool changer 30-fold, 30 magazine positions
High frequency spindle hvs 140 - 8b, make step tec
Milling power s1/ s6 40%: 10 kw-13kw
Tool contour measurement with laser system. For measuring the corner radius on toric tools.
Tool length measurement with laser system incl. Tool breakage control.
For measuring rotating tools ø 0. 2 mm to ø 25 mm in the machine.
Tool presetting is therefore not necessary.
Tool diameter measurement with laser system. For measuring rotating tools from ø 0. 2 mm to ø 25 mm in the machine.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
