Engel - insert 60V-35 single XS ecodriveDE-INJ-ENG-2017-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Plastics Processing Machinery
- ENGEL insert 60V-35 single XS ecodrive Injection moulding machine
Show in original language

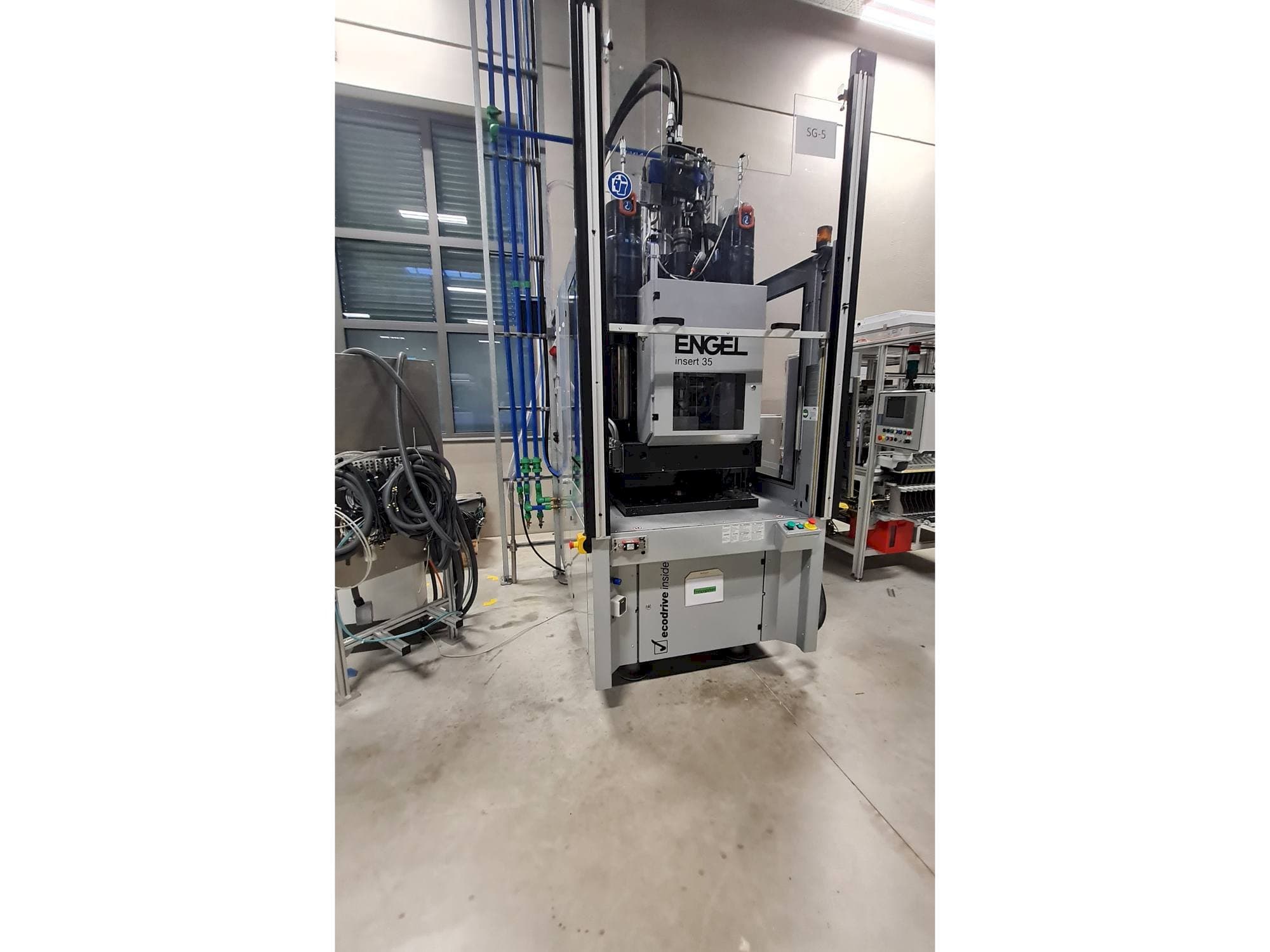

This ENGEL insert 60V-35 single XS ecodrive Injection moulding machine was manufactured in the year 2017 in Austria and has 12750 production hours. It is equipped with an Engel CC300 control unit. The machine has a clamping force of 350 kN. 3 units are available.
Overview
- brand: Engel
- year: 2017
- MODEL: insert 60V-35 single XS ecodrive
- production hours: 12750
- application type: Injection Moulding
- Location: Germany
- machine type: Vertical Injection Moulding Machine
- control unit brand: ENGEL
Technical Information - Engel insert 60V-35 single XS ecodrive
Control Unit
- Control Brand: ENGEL
- Control Model: CC300
Dimensions
- Machine Depth: 2600 mm
- Machine Height: 1400 mm
- Machine Weight: 4450 kg
Technical Specification
- Clamping Force: 350 kN
- Screw Diameter: 15 mm
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Technical machine benefits: ecodrive technology for energy efficiency.
Technical Machine Benefits
- Centering 125 mm
- Center hole diameter 40mm
- Nozzle open corrosion resistant in special design radius: 35 mm, bore: 4 mm, immersion depth: 30 mm
- Weight (kg): 4500 kg (single), 4700 kg (rotary), 6500 kg (shuttle)
- Screw diameter: hv1: 15 mm, shv1: 18 mm, shv2: 20 mm / stroke volume: hv1: 18 cm³, shv1: 25 cm³, shv2: 31 cm³ / injection pressure: hv1: 2400 bar, shv1: 1815 bar, shv2: 1470 bar / plasticising rate max: hv1: 1. 9 g/s, shv1: 3. 0 g/s, shv2: 4. 0 g/s / screw speed: hv1: 450 rpm, shv1: 450 rpm, shv2: 450 rpm / heating capacity: hv1: 4. 30 kw, shv1: 5. 05 kw, shv2: 5. 80 kw / adjustable heating zones: hv1: 4, shv1: 4, shv2: 4 / nozzle pressure: hv1: 28 kn, shv1: 28 kn, shv2: 28 kn
- Oil tank: 175 liters
- Image input capabilities: enabled
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
