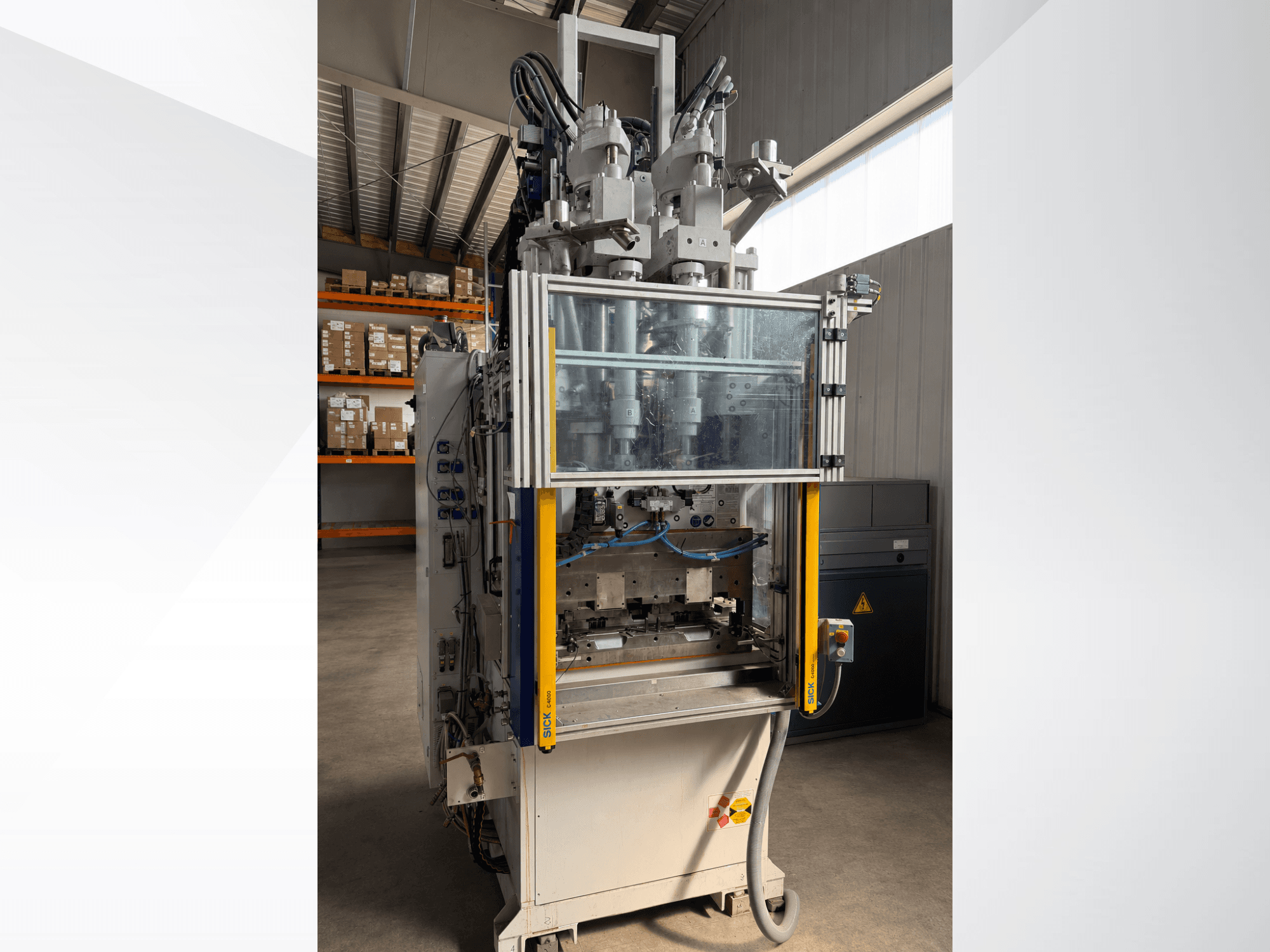

Vertical injection moulding machine manufactured in 2016. This Battenfeld CM 40 features a machine weight of 5200 kg and a working height of 1000 mm. The machine is equipped with a robust safety system, ensuring operational safety. If you are looking to get high-quality injection moulding capabilities, consider the Battenfeld CM 40 machine we have for sale. Contact us for further details.
Overview
- brand: Battenfeld
- year: 2016
- MODEL: CM 40
- application type: Injection Moulding
- Location: Germany
- machine type: Vertical Injection Moulding Machine
Technical Information - Battenfeld CM 40
Dimensions
- Machine Height: 3040 mm
- Machine Length: 1300 mm
- Machine Weight: 5200 kg
- Machine Width: 1973 mm
Technical Specification
- Clamping Force: 350 kN
Additional Information
- Hydraulic System Pressure: 247 / 210 bar
- Pneumatic System Pressure: 6 bar
- Rated Voltage: 400 V (3~N)
- Control Voltage: 24 V DC
- Frequency: 50 Hz
- Rated Current (1st supply / 2nd supply): 78 A / 73 A
- Max. Fuse Rating gl-gG (1st / 2nd supply): 80 A / 80 A
- Short Circuit Current Rating SCCR: 10 kA
- Working Height: 1000 mm
- Total Height: 3040 mm
- Machine Base Footprint: 1300 mm x 1060 mm
- Total Width (including safety door swing): 1973 mm
- Safety System: SICK C4000 light curtain barrier
- Mold Clamping Dimensions: CM400, EBH-100, Width-100
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
