➤ Used Emmegi SATELLITE XT 7800 For Sale | gindumac.com

Show in original language

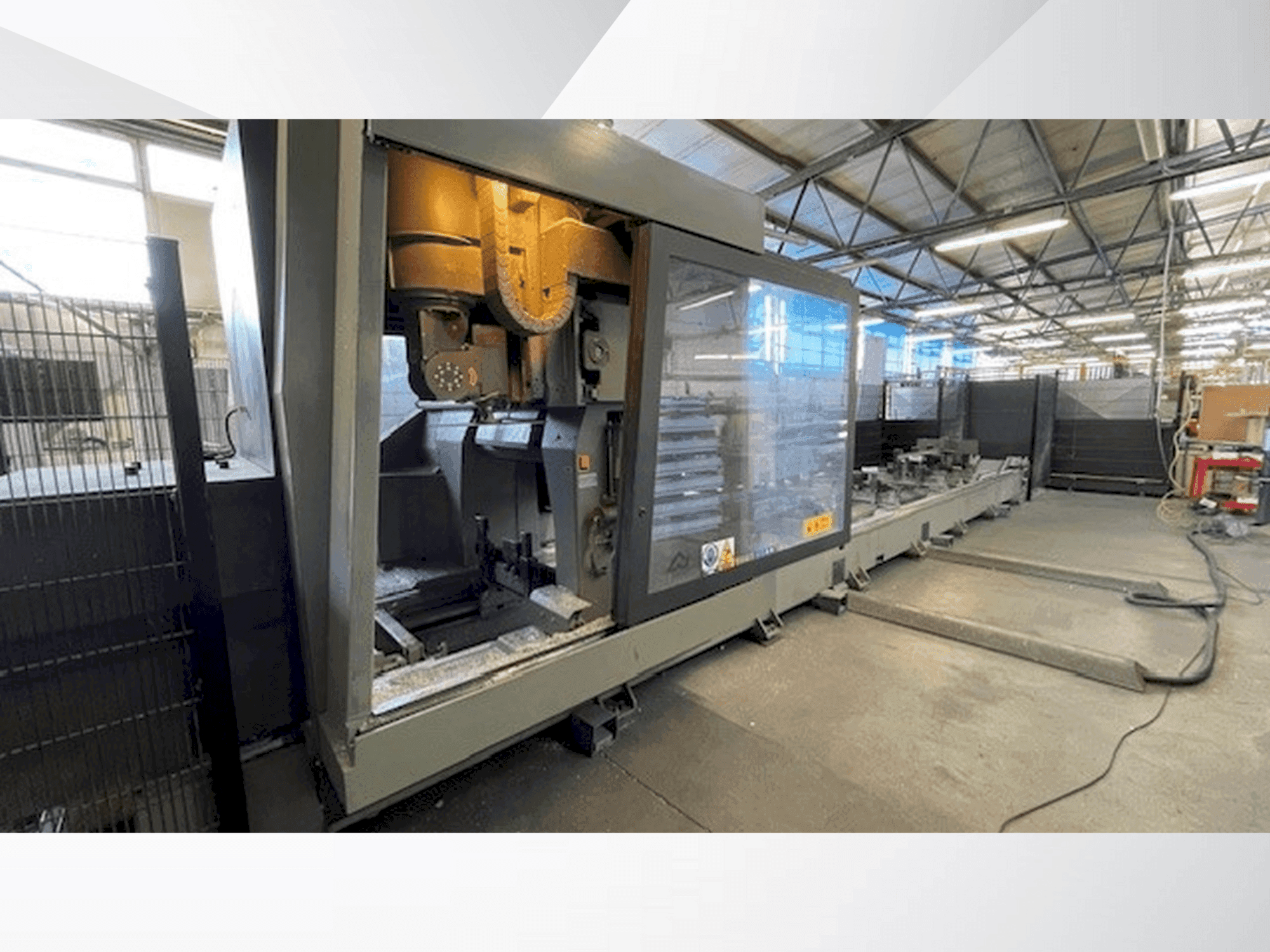

This 5-axis Emmegi SATELLITE XT 7800 was manufactured in 2019. A high-performance CNC machining center, ideal for aluminium profiles used in windows, façades, and more. Features include a 7,800 mm X-axis travel, spindle speed up to 24,000 rpm, and a tool magazine with 16 slots. Fully operational with excellent technical and visual condition. If you are looking to get high-quality milling capabilities consider the Emmegi SATELLITE XT 7800 machine we have for sale. Contact us for more information.

Overview

brand: Emmegi
year: 2019
MODEL: SATELLITE XT 7800
application type: Milling
Location: Poland
machine type: CNC Milling Machine

Technical Information - Emmegi SATELLITE XT 7800

General Data

Machine weight: 14500 kg

Movement

X-AXIS Movement: 7800 MM
X-AXIS Rapid traverse: 75 m/min
Y-AXIS Movement: 1000 MM
Y-AXIS Rapid traverse: 60 m/min
Z-AXIS Movement: 400 MM
Z-AXIS Rapid traverse: 40 m/min

Additional Equipment

- Full set of original pneumatic clamps (8 pcs) / Automatic tool changer / Minimum quantity lubrication system (MQL) / Integrated chip extraction points

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle power: 15 kw / spindle speed: 0 – 24000 rpm / spindle torque: 12 nm/ spindle type: hsk-63f
- - Tool magazine capacity: 16 slots (expandable up to 32)
- - Max. Saw blade diameter: 500 mm
- - Working modes: single piece, static pendular mode, dynamic pendular mode / max. Machining length: 7800 mm / max. Profile dimension (saw cutting): up to 360 × 290 mm / power supply: 400 v / 3-phase / 50 hz / air pressure: 6 – 7 bar / complete documentation and user manuals included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
