DN SOLUTIONS - DVF 8000PT-MIL-DNS-2022-00001

£ 382,511
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

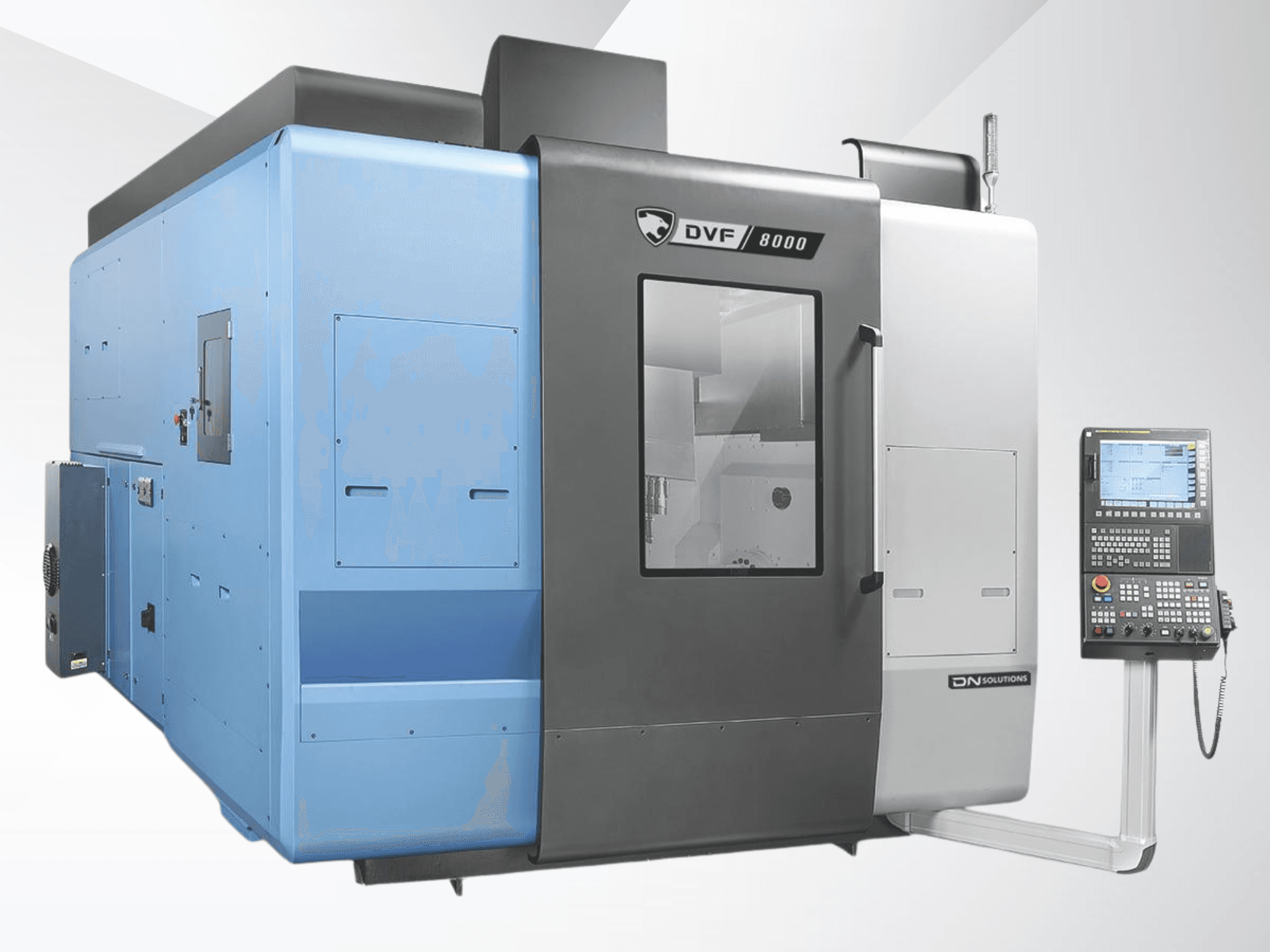

This 5-axis DN SOLUTIONS DVF 8000 was manufactured in 2022. It features impressive X-axis travel of 1,020 mm, Y-axis travel of 850 mm, and Z-axis travel of 805 mm. The machine includes a maximum workpiece diameter of 1,000 mm and a spindle speed of 18,000 rpm. If you are looking to get high-quality machining capabilities, consider the DN SOLUTIONS DVF 8000 universal machining centre we have for sale. Contact us for further details.

Overview

  • brand: DN SOLUTIONS
  • year: 2022
  • MODEL: DVF 8000
  • application type: Milling
  • Location: Portugal
  • machine type: Universal Machining Centre
  • control unit brand: FANUC

Technical Information - DN SOLUTIONS DVF 8000

Control Unit

  • Control Brand: FANUC
  • Control Model: 31i-b5

Dimensions

  • Table Load: 800 kg

Movement

  • Number of Axes: 5
  • X-axis Travel: 1020 mm
  • Y-axis Travel: 850 mm
  • Z-axis Travel: 805 mm

Technical Specification

  • Spindle Power: 22 kW
  • Spindle Speed: 18000 RPM
  • Tool Stations: 40

Additional Information

  • 15" color touchscreen display

  • CE certified

  • Metric configuration

  • Power supply: 3-phase AC 380V / 50Hz

  • Number of axes: 5 (X, Y, Z, A, C)

  • Simultaneous 5-axis machining

  • Absolute feedback system (absolute pulse coder on A- and C-axis)

  • Table diameter: 800 mm

  • Maximum workpiece diameter: 1,000 mm

  • Maximum workpiece height: 630 mm

  • Spindle motor power: 22 / 18.5 kW

  • Spindle taper: HSK-A63

  • Tool holder type: HSK63A

  • Flood coolant pump: 2.5 kW / 0.44 MPa / 100 L/min

  • Through-spindle coolant: 4.0 kW / 2.0 MPa (20 bar)

  • Tool load monitoring

  • Portable MPG handwheel

  • Automatic power off

  • Program storage: 10,240 m (4 MB)

  • 1,000 program capacity

  • 400 tool offset pairs

  • 48 work coordinate systems

  • Large capacity memory: 2 GB

  • Data server & memory card: 2 GB

  • Embedded Ethernet

  • iHMI easy operating system (EZI & Machining Cycle)

  • DSQ1 (AICC II – 200 blocks)

Additional equipment

  • Hinged belt chip conveyor (rear side)

  • Cyclone filter system

  • Renishaw probe ready (RMI-Q) + software

  • External power transformer

  • Electrical line filter

  • Machine lifting hooks

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
