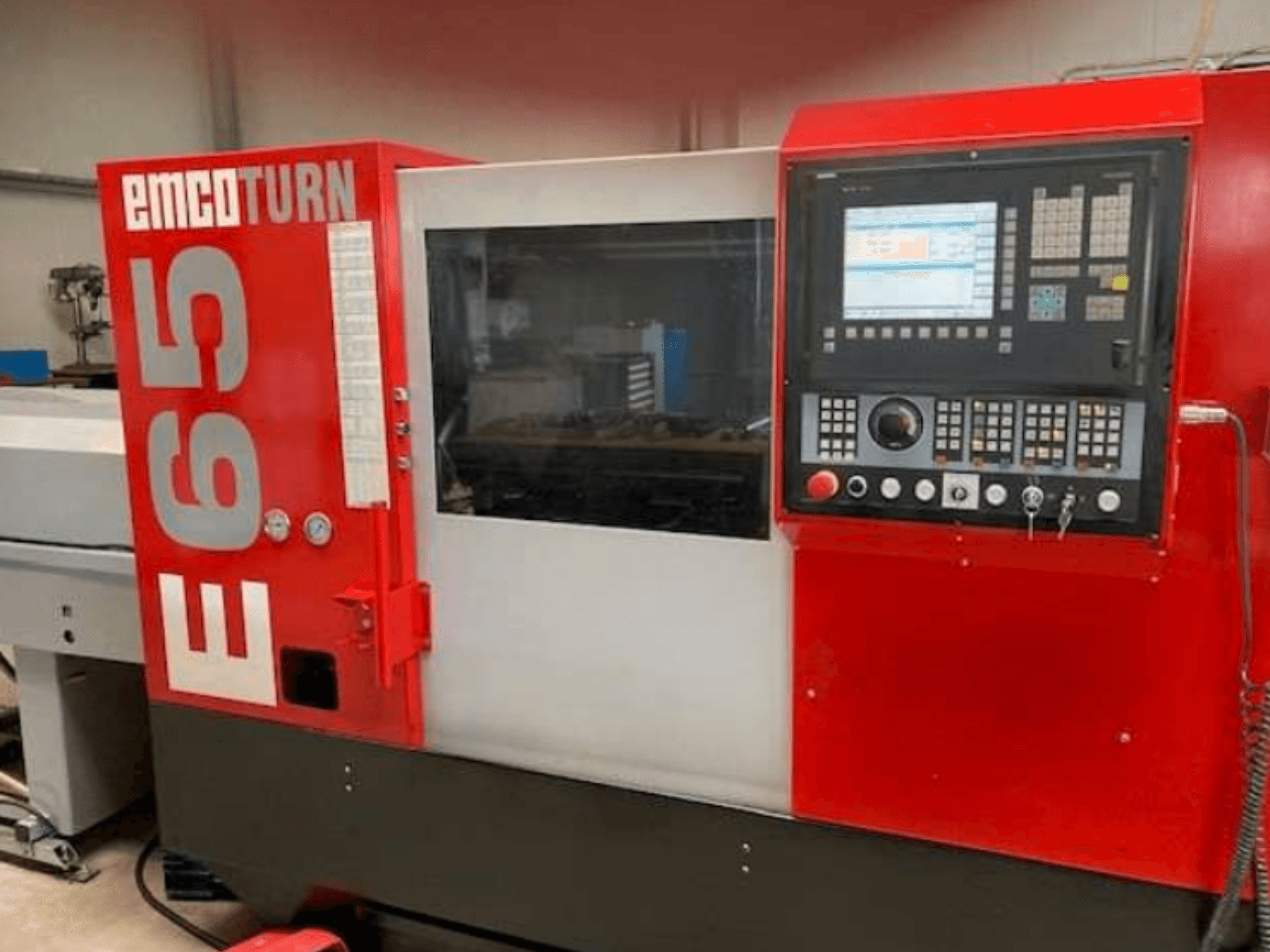

This EMCO EmcoTurn E65 was manufactured in 2007. It features a swing over bed of 600 mm, a maximum turning diameter of 310 mm, and a bar capacity of 65 mm. Equipped with a Siemens Sinumerik 810D control, it offers high precision and efficiency. If you are looking to get high-quality turning capabilities, consider the EMCO EmcoTurn E65 machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: EMCO
- year: 2007
- MODEL: EmcoTurn E65
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - EMCO EmcoTurn E65
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 810D with ShopTurn 6.4
Dimensions
- Machine Depth: 1941 mm
- Machine Height: 1880 mm
- Machine Length: 6500 mm
- Machine Weight: 3900 kg
Additional Information
Spindle motor: AC motor, 15 kW (100% duty) / 18 kW (60% duty)
Spindle speed range: Continuously variable, 60 – 4200 rpm
Axis travel: X 210 mm / Z 610 mm
Rapid traverse (X / Z): 24 / 24 m/min
Swing over bed: 600 mm
Max. turning diameter: 310 mm
Max. part length: 520 mm
Max. bar diameter: 65 mm
Chuck: 3-jaw chuck “Kitagawa” BB208
Turret: 12 stations, all driven tools
Driven tool speed: Up to 5000 rpm
Coolant supply through turret: 25 bar
Tool interface: VDI 30 (DIN 69880)
Bar feeder: Compact Load LM 1200 (max. bar length 1200 mm)
Chip conveyor & pneumatic parts catcher
Connected load: 20 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
