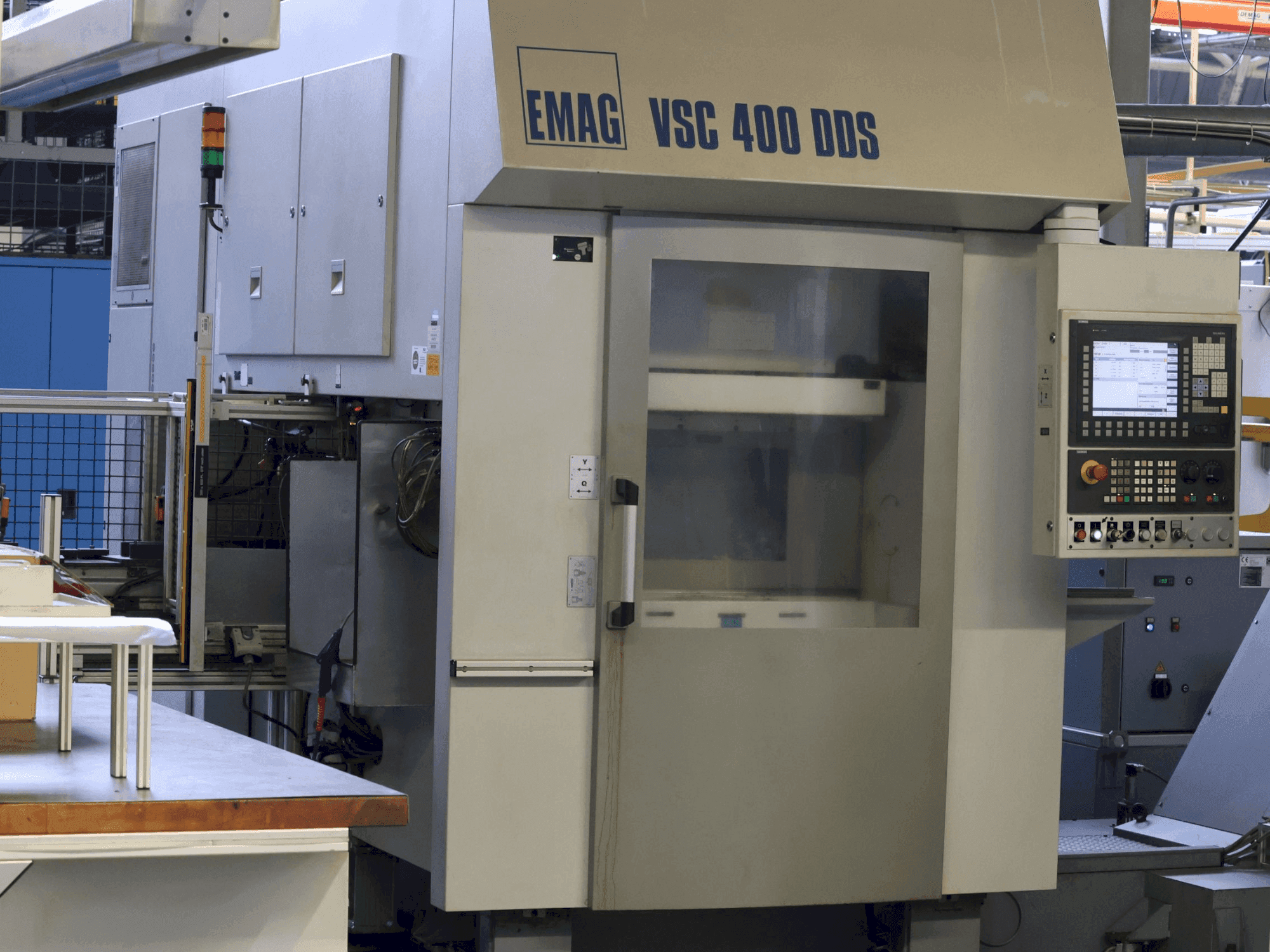

EMAG - VSC DDSDE-TUR-EMA-2006-00001

Additional Equipment

• - Including chip conveyor
• - Coolant-lubricant preparation and extraction
• - IATF certification
• - in an excellent technical and well-maintained condition
• - All documentation and maintenance logs are available.
• - Working range VSC 400 DDS / Chuck diameter max. mm 400 / in 15.7 / Max. swing diameter incl. dressing tool mm 420 / in 16.5 / X-path mm 850 / in 33.5 / Y-path mm 315 / in 12.4 / Z-travel mm 315 / in 12.4
• - Main spindle: Spindle flange DIN 55 026 size 11/ Spindle bearing, front Ø in mm 140 / dia. in inch 5.5 /Speed max. min -1 3,000
• - Main drive Power max. kW 58 / hp 78 /Full power from spindle speed min -1 900/ Torque max. Nm 620 / ft-lb 457 /Holding torque continuous operation Nm 480 / ft-lb 354
• - Feed drive: Rapid traverse speed X / Z m/min 45 / 30 / ipm 1.772 / 1.181 /Rapid traverse speed Y m/min 30 / ipm 1.181 /Feed force X / Z kN 11 / 11 / lbf 2.473 / 2.473/ Feed force Y kN 11 / lbf 2.473 /Ball screw X / Z Ø in mm 50 / 40 / dia. in inch 2.0 / 1.6/ Ball screw Y Ø in mm 40 / dia. in inch 1.6
• - Turning and grinding unit /Turning tools / Lifetools Quantity 1 - 12/ Tool holders Cylindrical shank Ø in mm 40 / 50 / dia. in inch 1.6 / 2.0/ Grinding spindles Quantity 1 - 2

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Working range vsc 400 dds/ operating voltage v 400 /control voltage direct current v 24 /control voltage alternating current v 230/ frequency hz 50 /connected load kw 45 / hp 60 supply line fuse a 100
  • - Dimensions and weight dimension a mm 2,650 / in 104. 3 dimension b mm 2,000 / in 78. 7 dimension c mm 3,990 / in 157. 1 dimension d mm 1,100 / in 43. 3 dimension e approx. Mm 3. 500 / approx. In 137. 8 dimension f approx. Mm 3. 300 / approx. In 129. 9
  • - Total weight kg 12,500 / lb 27. 558 (machine 10,500 kg)

Extra information

• - The machine is still under power and can be inspected and tested at any time

Payment Terms

• Payment in advance

• Asset Financing
