DOOSAN - Puma MX2600ST SE-TUR-DOO-2013-00001

Name: DOOSAN Puma MX2600ST
Brand: DOOSAN
SKU: SE-TUR-DOO-2013-00001
Price: 115147 GBP
Availability: InStock

£ 115,147

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN Puma MX2600ST For Sale | gindumac.com

Show in original language

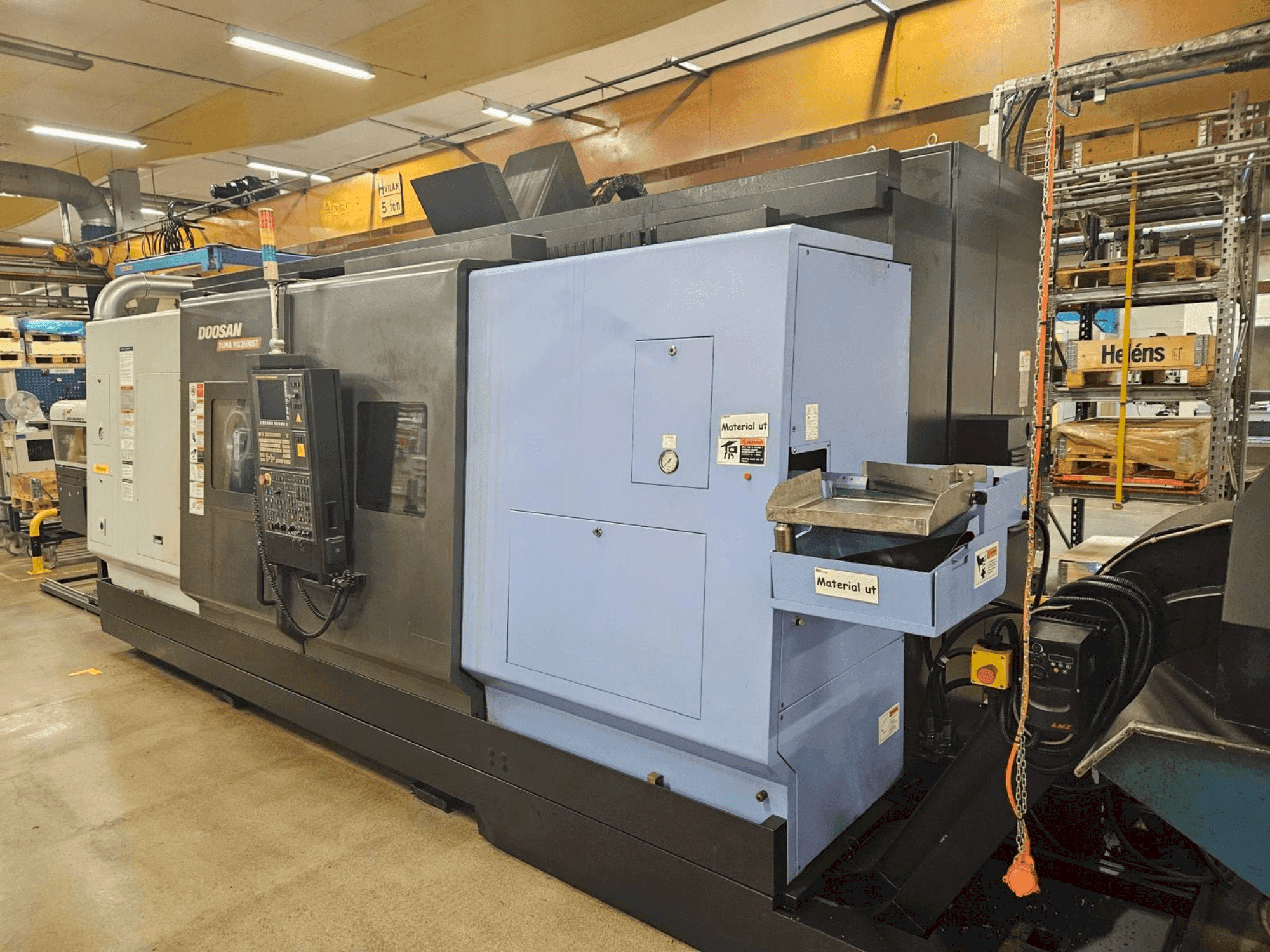

This 5-axis DOOSAN Puma MX2600ST turn-mill centre was manufactured in 2013. It features a maximum turning diameter of Ø 760 mm, part length up to 1540 mm, and bar capacity of Ø 76 mm. Equipped with a Fanuc 31i-A control, dual spindles with speeds up to 4000 rpm, and a milling spindle at 12,000 rpm. Includes a tool magazine with 80 positions and a swarf conveyor. Consider the opportunity to buy this DOOSAN Puma MX2600ST turn-mill centre. Contact us for more information.

Overview

brand: DOOSAN
year: 2013
MODEL: Puma MX2600ST
production hours: 15000
application type: Turning
Location: Sweden
machine type: Turn-Mill Centre

Technical Information - DOOSAN Puma MX2600ST

Movement

Number of Axes: 5
Y-axis Travel: 230 mm

Technical Specification

Spindle Speed: 12000 RPM
Taper Size: Capto C6

Additional Information

Max turning diameter: Ø 760 mm
Max part length: 1540 mm
Bar capacity: Ø 76 mm
Axis travels:
- X1: 630 mm
- Z1: 1585 mm
- Y: 230 mm (±115 mm)
- X2: 220 mm
- Z2: 1515 mm
- A: 1550 mm
Left/right spindles:
- Speed: 4000 rpm
- Spindle nose: A2-8
- Power: 22/26 kW
- C-axis: 360° (0.001)
Milling spindle:
- Speed: 12,000 rpm
- Power: 15/18.5/22 kW
- Taper: Capto C6
- B-axis: 0.001°
Lower turret: 12 stations, 4000 rpm, BMT65P
Tool magazine: 80 positions

Additional equipment

Automatic tool measurement
Swarf (chip) conveyor
Coolant for driven tools
Coolant through milling spindle: 1.5 kW, 2.0 MPa, 21.6 l/min
Coolant pump for lower turret: 2.2 kW, 1.0 MPa, 30 l/min
Cutting force monitoring

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
