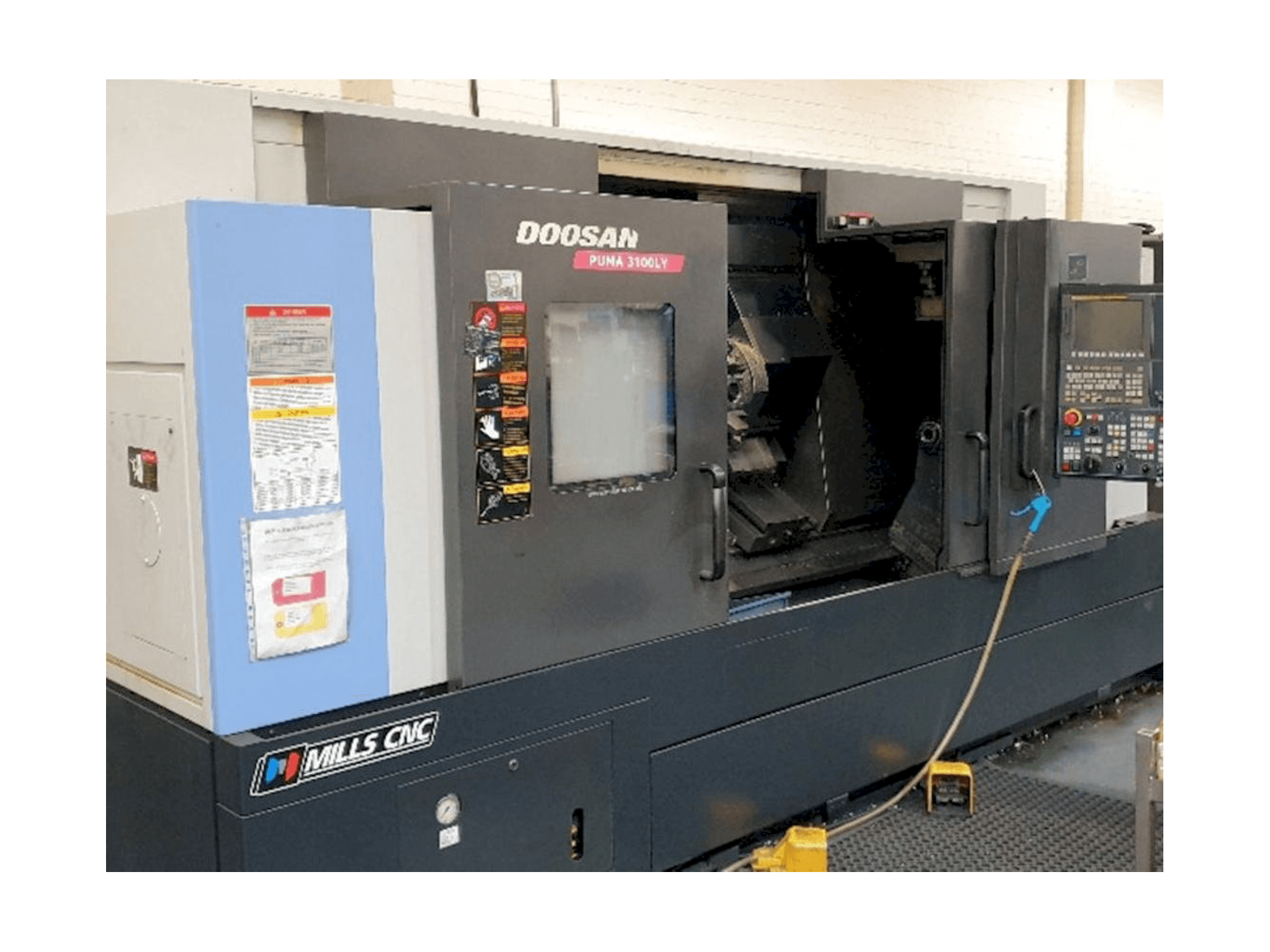

Front view of Doosan Puma 3100LY machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Puma 3100LY

Photo Gallery

DOOSAN - Puma 3100LYGB-TUR-DOO-2014-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Puma 3100LY Lathe Machine

Show in original language

This Doosan 3100LY Lathe Machine was manufactured in 2014. It is operated through a DOOSAN - FANUC i Series control unit. The 4 axis machine has a spindle speed up to 2800 rpm. It is in very good condition.

Overview

brand: DOOSAN
year: 2014
MODEL: Puma 3100LY
production hours: 18661
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DOOSAN Puma 3100LY

Control Unit

Control Brand: FANUC
Control Model: i Series

Dimensions

Machine Weight: 8000 kg

Movement

X-axis Travel: 293 mm
Y-axis Travel: 65 mm
Z-axis Travel: 1350 mm

Technical Specification

Number of Tools: 12
Spindle Power: 18.5 kW
Spindle Speed: 2800 RPM
Through-spindle Coolant: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

Swing over bed 850 mm, over carriage 670 mm
Maximum machining diameter 420 mm
Maximum machining length 1285 mm
Bar capacity 102 mm
Milling power 5. 5/7. 5 kw; speed 5000 rpm
0. 001 degree c axis
Tool setter, coolant
12” 3-jaw chuck
Tailstock (taper mt #5, quill dia. 100 mm, quill stroke 100 mm)
4 controlled axes (x, z, c, y)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
