➤ Used Doosan Puma 2600Y | Lathe For Sale

Show in original language

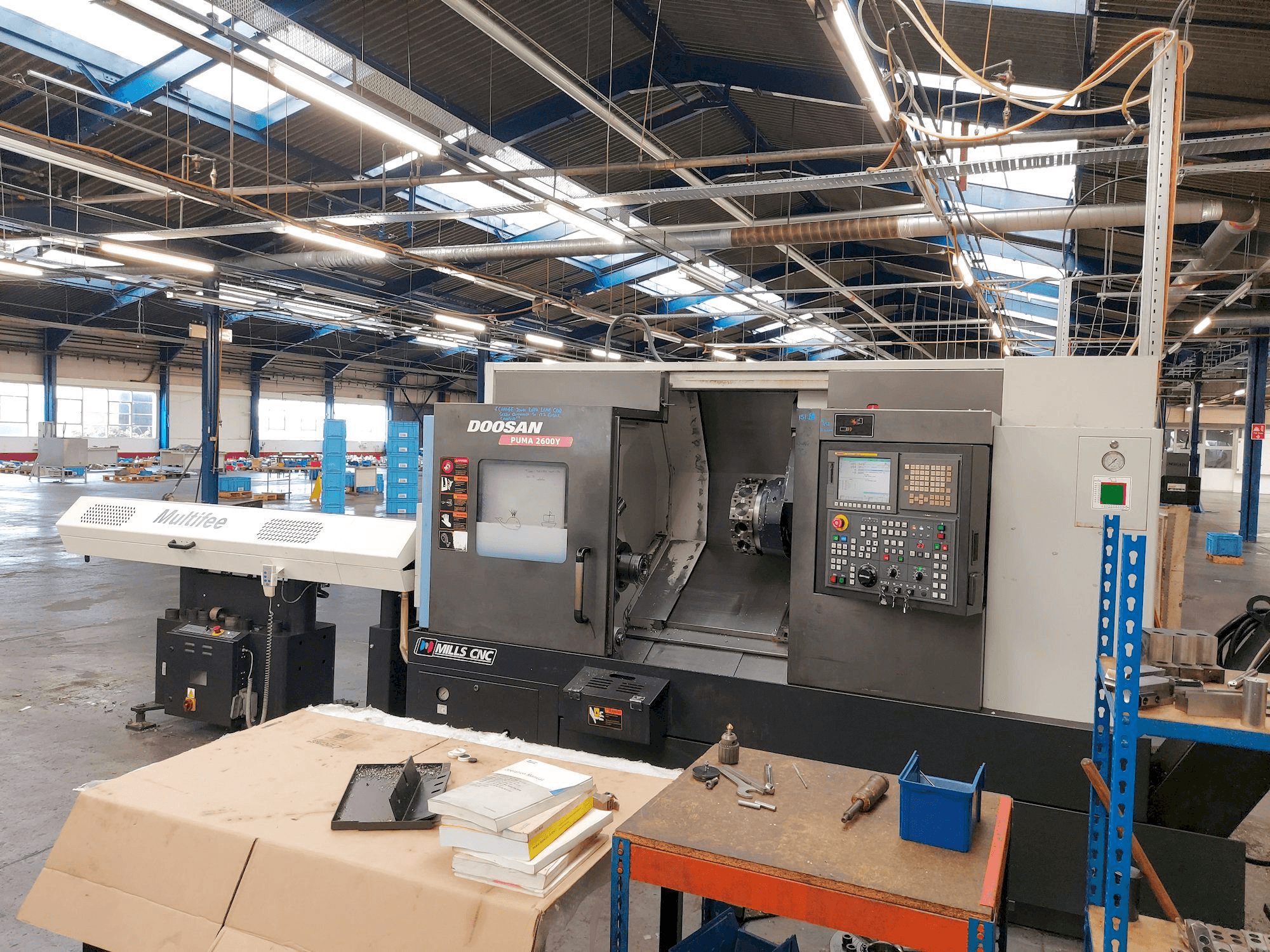

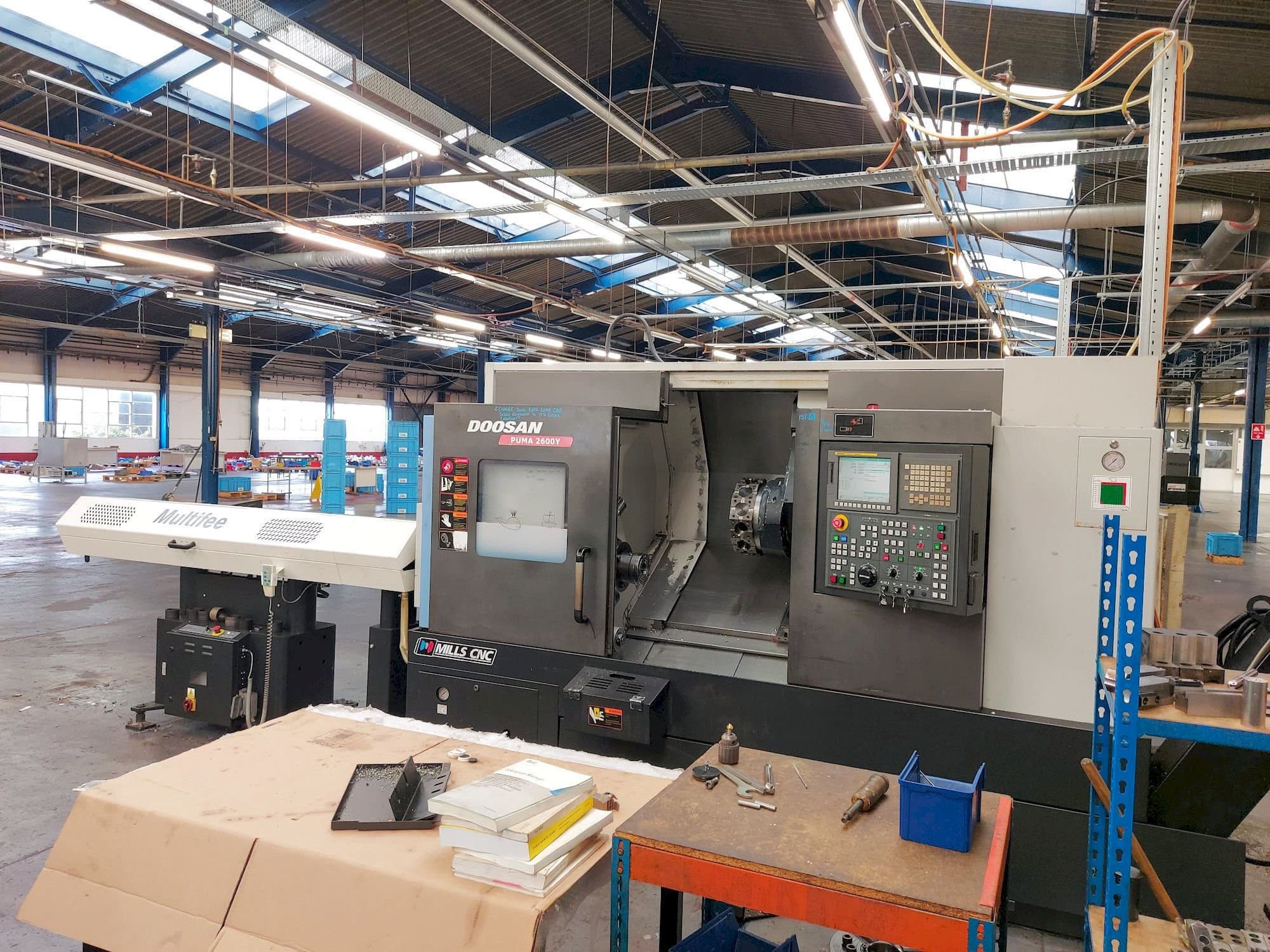

This Doosan 2600Y Lathe Machine was manufactured in 2012 in South Korea. It operates through a Fanuc i Series control unit. This 4 axis machine has a spindle speed up to 3500 rpm. It is in very good condition.

Overview

brand: DOOSAN
year: 2012
MODEL: Puma 2600Y
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DOOSAN Puma 2600Y

Control Unit

Control Brand: FANUC
Control Model: i Series

Dimensions

Machine Depth: 1965 mm
Machine Height: 1863 mm
Machine Weight: 6000 kg

Movement

Number of Axes: 4
X-axis Travel: 260 mm
Y-axis Travel: 52.5 mm
Z-axis Travel: 830 mm

Technical Specification

Spindle Speed: 3500 RPM

Additional Information

Additional equipment

Bar feeder HYDRAFEED MX-1B

Machine Benefits

Qualitative Machine Benefits

Tailstock (taper mt #5, quill dia. 100 mm)
Very good condition

Technical Machine Benefits

Slots in storage: 24
Swing over bed 780 mm, over carriage 630 mm
Maximum machining diameter: 376 mm
Bar capacity: 76 mm
Maximum machining length: 760 mm
Main spindle motor power 15/22 kw
Turret milling power 7. 5 kw; speed 5000 rpm
0. 001 degree c axis
Tool setter, parts catcher, coolant
Collet chuck, collets

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
