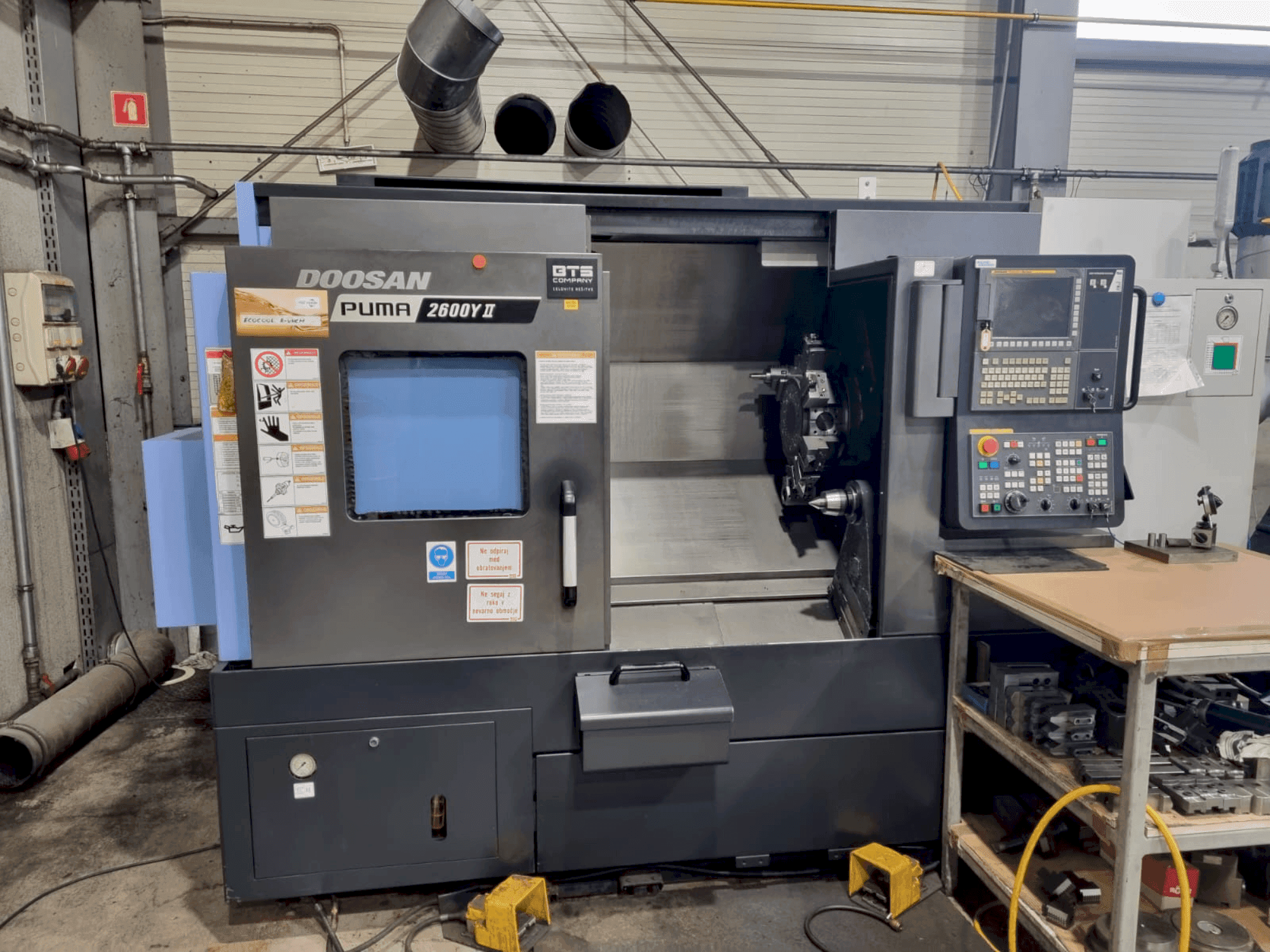

This 3-axis DOOSAN Puma 2600Y II was manufactured in 2018. A CNC Horizontal Turning Centre with Y-axis, it features a 10-inch chuck, 81 mm bar capacity, and a 12-position turret with powered tool positions. It boasts a spindle speed of 4000 RPM and a high-pressure coolant system. Ideal for precision machining with its rapid traverse rates and robust 6100 kg weight. For more information about this horizontal turning machine, please reach out to us.
Overview
- brand: DOOSAN
- year: 2018
- MODEL: Puma 2600Y II
- application type: Turning
- Location: Slovenia
- machine type: Horizontal Turning Machine
- availability: Immediately
- control unit brand: FANUC
Technical Information - DOOSAN Puma 2600Y II
General Data
- Measurements width: 1945 mm
- Measurements depth: 3505 mm
- Measurements height: 2163 mm
- Machine weight: 6100 kg
Control Unit
- Brand: FANUC
- Model: OiTF + MGI
Main drive
- Spindle speed range: 4000 RPM 1/MIN
- Spindle motor power: 22 kW
- Number of axis: 3
Movement
- X-AXIS Movement: 260 mm
- X-AXIS Feed Force: 30 m/min
- Y-AXIS Movement: 105 mm
- Y-AXIS Feed Force: 10 m/min
- Z-AXIS Movement: 830 mm
- Z-AXIS Feed Force: 30 m/min
Turret
- Number of turrets: 1
Tools
- Number of index: 12
Additional Equipment
- - Chuck Size: 10 inches
- - Max. Turning Diameter: 376 mm // Max. Turning Length: 760 mm
- - Rotary Tool Speed: 5000 RPM
- - Clamping Head: Standard 10" (255 mm) clamping head with a set of soft jaws
- - Hard Jaws: Set of 10" hard jaws (1 set of 3)
- - Revolver: 12-position turret with powered tool positions
- - Increased Power for Driven Tools: 7.5 kW motor for driven tools
- - Tool Holder: Includes 2x standard static holders and 2x powered tool holders
- - Coolant System: High-pressure coolant system, 7 bar (70 l/min), with a filtration system (max flow rate 30 l/min)
- - Oil Skimmer: Equipped with a belt-type oil skimmer for model P2600
Additional Information
- Technical Machine Benefits:
- - Ikz: yes (7 bar)
- - Mounting size: emt65 for tools
- - Spindle torque: 599 nm
- - Bar capacity: 81 mm
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
