- ➤ Used DOOSAN Puma 2600L For Sale | gindumac.com

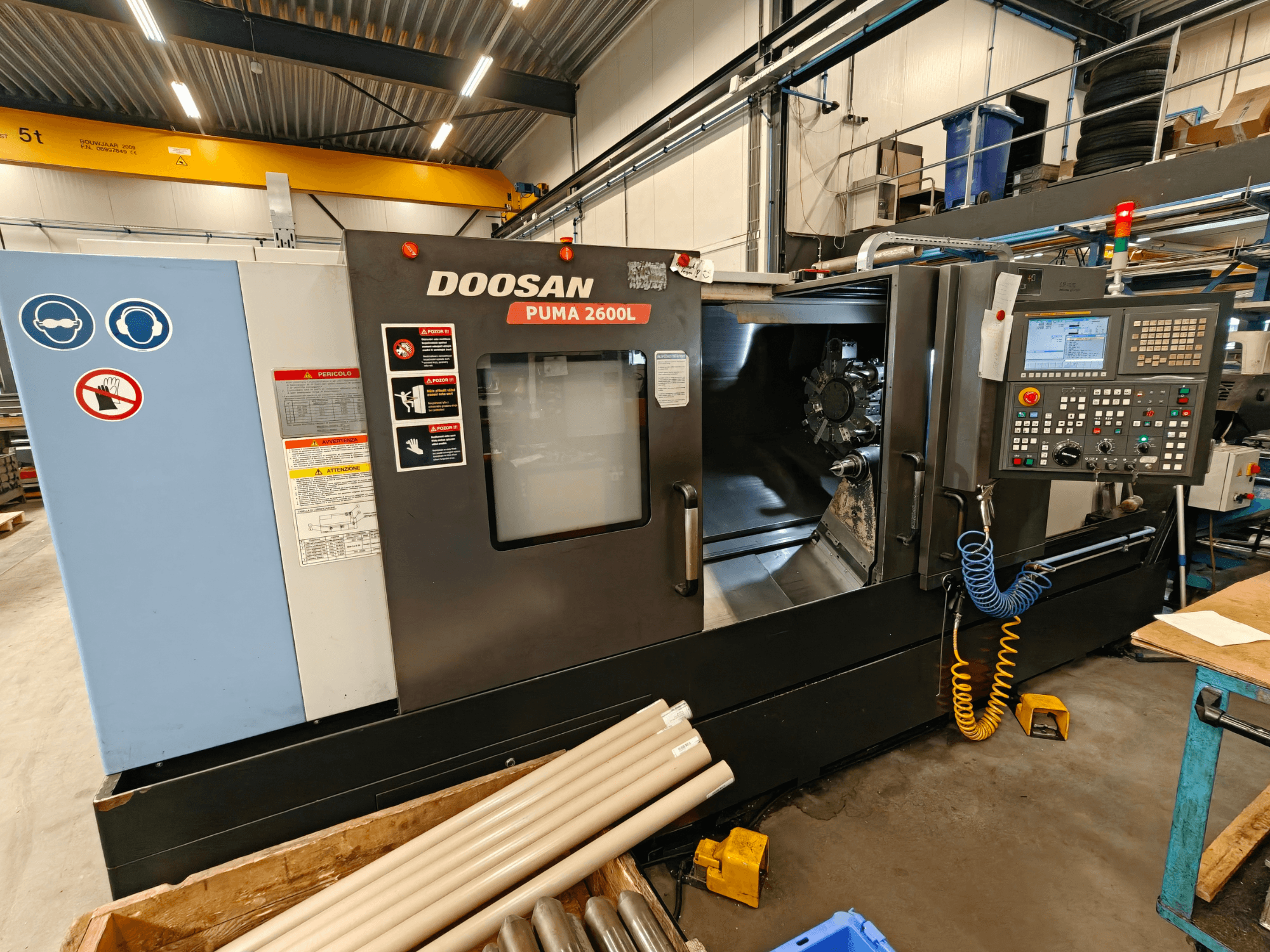

Horizontal turning machine manufactured in 2011. This DOOSAN Puma 2600L features a maximum turning diameter of 481 mm and a turning length of 1,280 to 1,310 mm, depending on the chuck. It includes a robust spindle speed of up to 2,800 RPM and a tool turret with 12 positions. If you are looking to get high-quality turning capabilities, consider the DOOSAN Puma 2600L machine we have for sale. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2011
- MODEL: Puma 2600L
- production hours: 953
- application type: Turning
- Location: Netherlands
- machine type: Horizontal Turning Machine
- Available from: 31/07/2026
- control unit brand: FANUC
Technical Information - DOOSAN Puma 2600L
Control Unit
- Control Brand: FANUC
- Control Model: i-series
Movement
- Number of Axes: 2
- X-axis Travel: 260 mm
- Z-axis Travel: 1350 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Number of Tools: 12
- Spindle Power: 22 kW
- Spindle Speed: 2800 RPM
Additional Information
Capacity & Reach
Maximum turning diameter: ø 481 mm
Maximum turning length: 1,280–1,310 mm (depending on the chuck)
Turning diameter above the bed: ø 780 mm
Bar bore/capacity: ø 76 mm
Main Spindle
Chuck (jack plate) diameter: 254 mm (10 inch)
Spindle bore: ø 86 mm
Spindle nose: A2-8
Tool Changer
Turret: 12 stations
Rapid traverse (X/Z): 30 m/min
Additional equipment
Note: Tools are excluded (can be purchased for an additional amount)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
