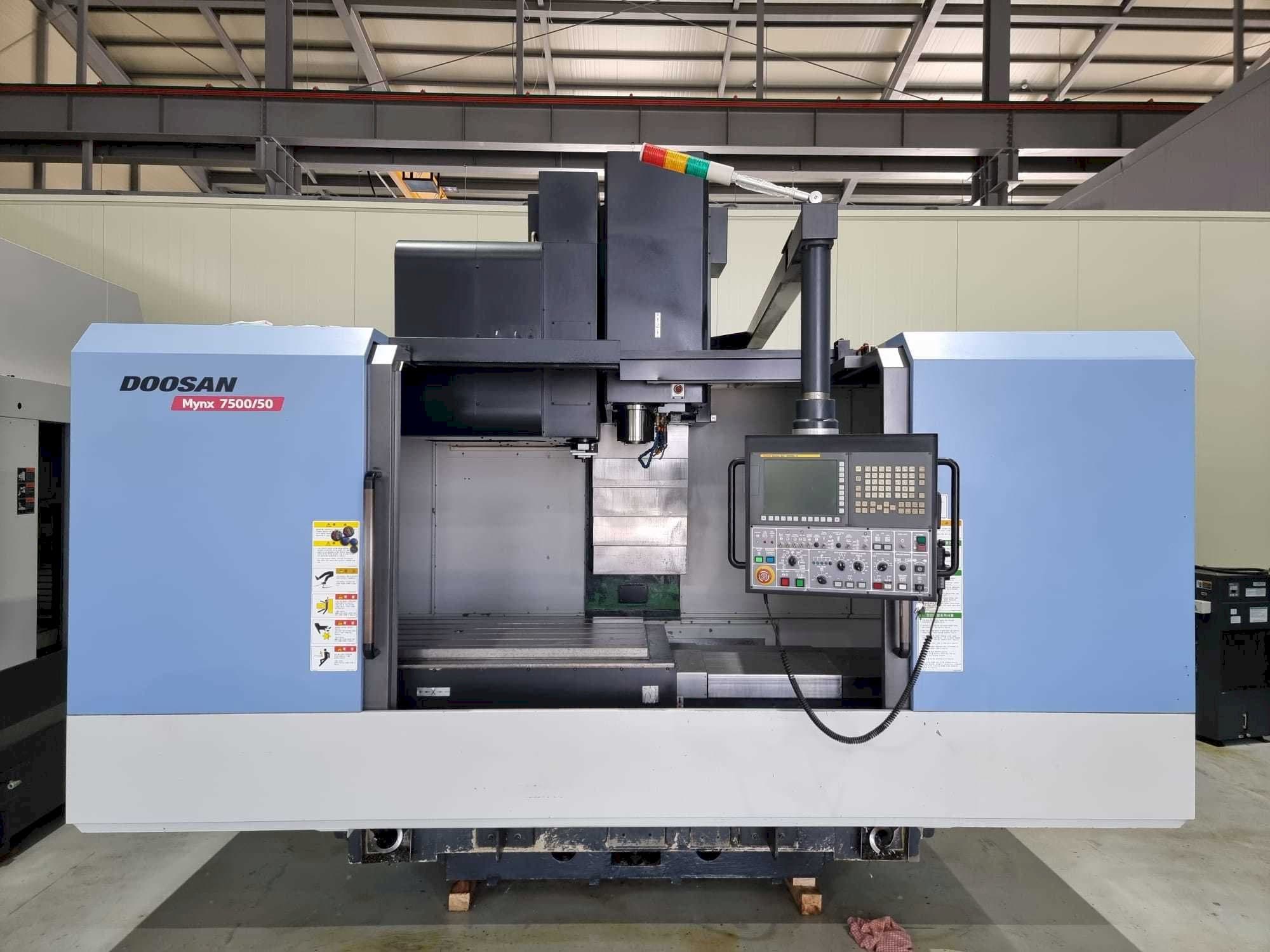

Front view of Doosan Mynx 7500/50 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Mynx 7500/50

Photo Gallery

DOOSAN - Mynx 7500/50KR-MIL-DOO-2012-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Mynx 7500/50 Vertical machining center

Show in original language

This Doosan Mynx 7500/50 Vertical machining center was built in South Korea in 2012. It is equipped with a FANUC Series 32i-MODEL A control unit. This 3 axis machine operates with a spindle speed up to 8000 rpm. Includes an oil cooler and a data server of 1 GB.

Overview

brand: DOOSAN
year: 2012
MODEL: Mynx 7500/50
application type: Milling
Location: South Korea
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN Mynx 7500/50

General Data

Machine weight: 14000 KG

Control Unit

Model: Series 32i-MODEL A
Brand: FANUC

Main drive

Spindle speed range: 8000 1/MIN
Tool taper: BT50
Number of axis: 3

Movement

X-AXIS Movement: 1525 MM
Y-AXIS Movement: 770 MM
Z-AXIS Movement: 625 MM

Table

Outer length: 1600 MM
Outer width: 750 MM

Tools

Slots in storage: 40 EA

Media

Main electronic connection: 3 x 220V / 60Hz
Power consumption: 42.87 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Oil cooler
- - Data server 1gb

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
