➤ Used Chevalier QP2440-L For Sale | gindumac.com

Show in original language

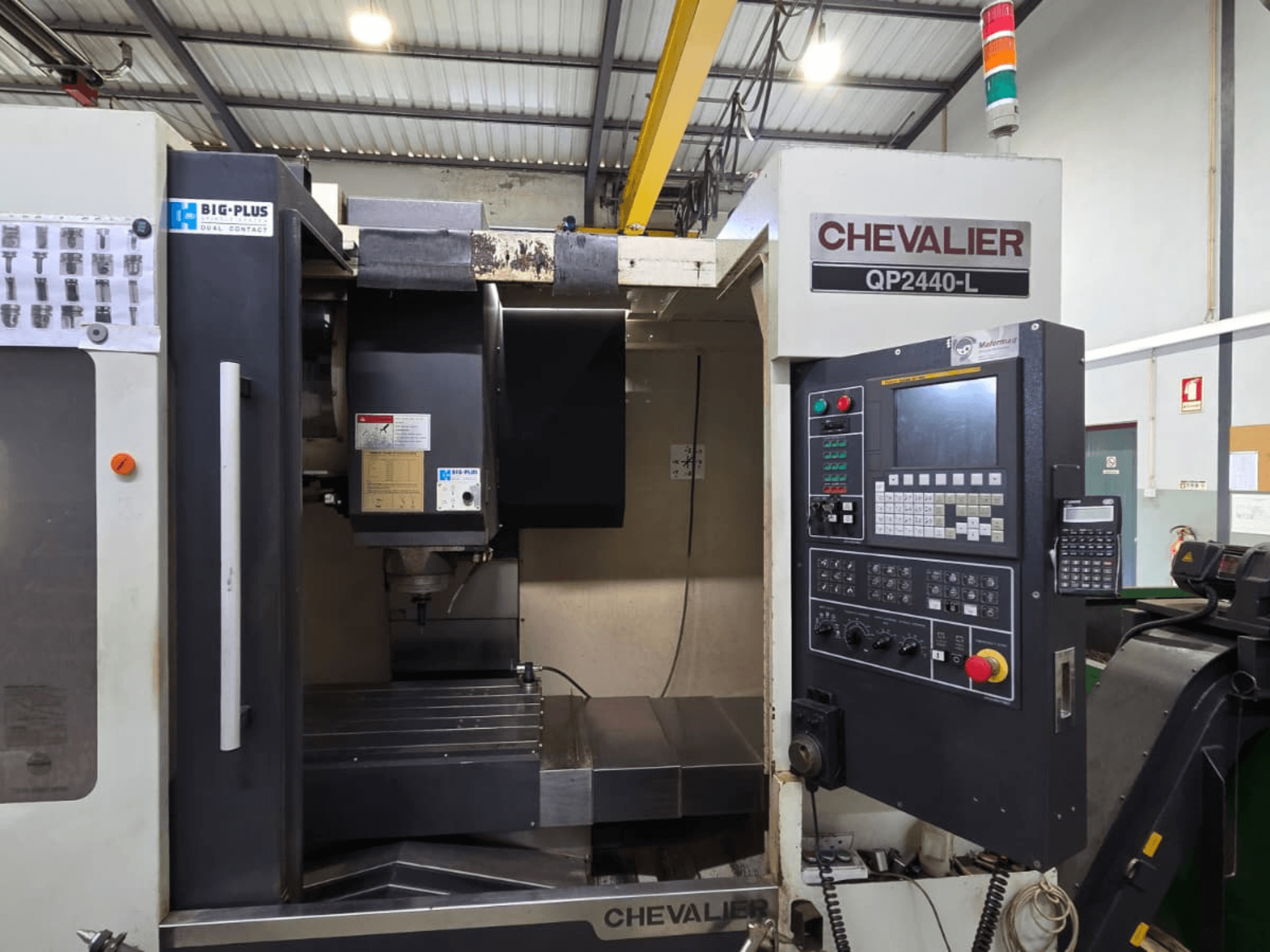

This 3-axis Chevalier QP2440-L was manufactured in 2013. It features an X-axis travel of 1020 mm, Y-axis travel of 610 mm, and Z-axis travel of 510 mm. The machine includes a robust table size of 1200 x 600 mm and a maximum table load of 800 kg. If you are looking to get high-quality machining capabilities, consider the Chevalier QP2440-L vertical machining centre we have for sale. Contact us for further details.

Overview

brand: Chevalier
year: 2013
MODEL: QP2440-L
application type: Milling
Location: Portugal
machine type: Vertical Machining Centre

Technical Information - Chevalier QP2440-L

Dimensions

Machine Weight: 6700 kg
Table Load: 800 kg

Movement

Number of Axes: 3
X-axis Travel: 1020 mm
Y-axis Travel: 610 mm
Z-axis Travel: 510 mm

Technical Specification

Spindle Speed: 12000 RPM
Taper Size: BT 40

Additional Information

Main Voltage: 400 VAC / 3 PH / 50 HZ
Power Required: 20 KVA
Air Required: 5.5 kg/cm²
Table Dimensions: 1200 x 600 mm
Tool Taper: BT 40 / SK 40
Automatic Tool Changer (ATC): 24 positions (Arm type)
Rapid Feed Rate (X/Y/Z): 36 / 36 / 24 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
