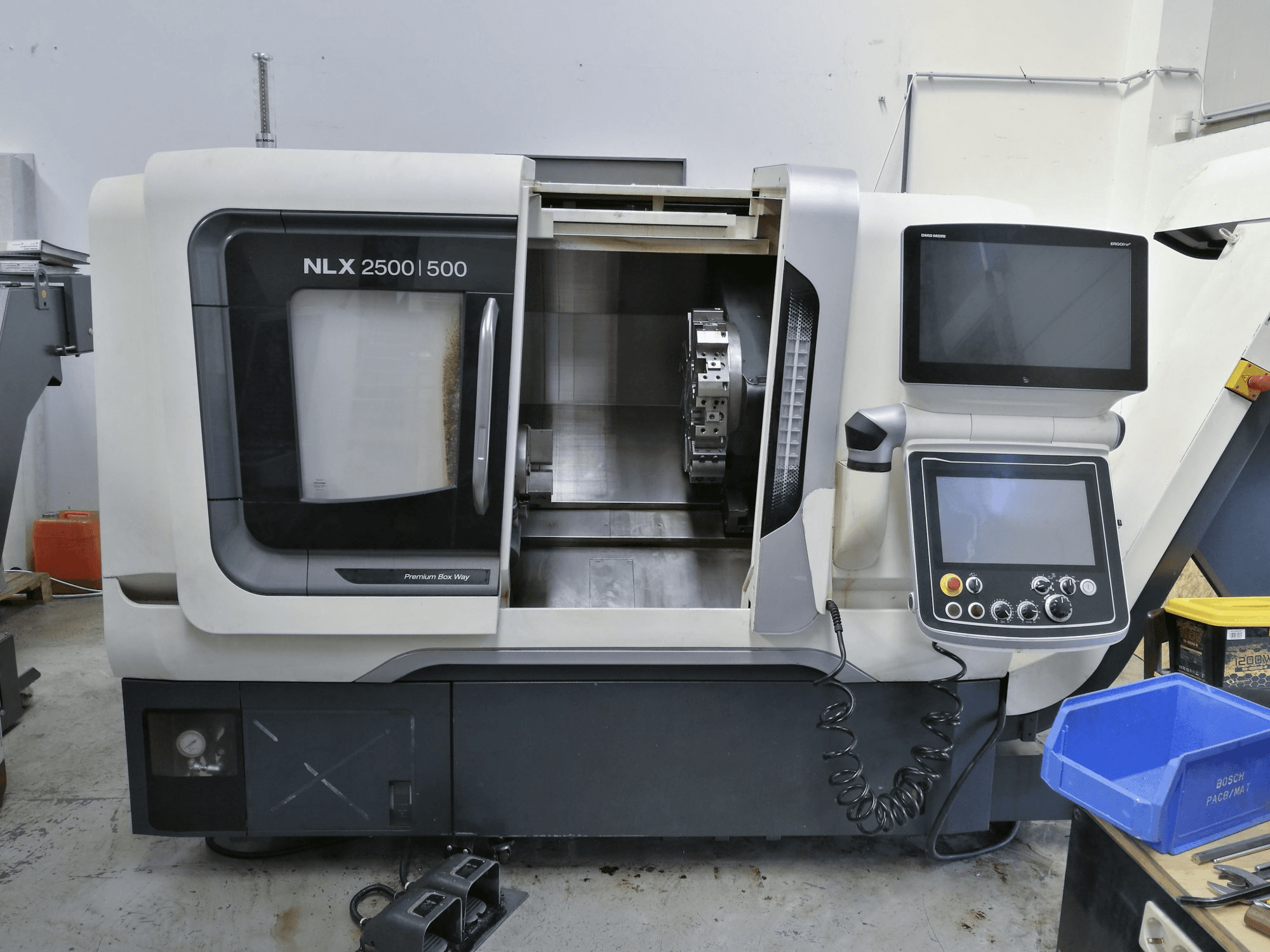

This Japanese DMG MORI NLX 2500/500 Lathe was built in 2014 and has 16310 hours, of which 5857 are spindle hours. Equipped with a DMG MORI ERGOLINE CELOS Control unit, this machine has mainly worked with steel in the past and comes with an additional power transformer as well as a tool setter.
Overview
- brand: DMG MORI
- year: 2014
- MODEL: NLX 2500/500
- production hours: 16310
- application type: Turning
- Location: Hungary
- machine type: Turn-Mill Centre
- control unit brand: MITSUBISHI
Technical Information - DMG MORI NLX 2500/500
General Data
- Measurements width: 2200 mm
- Measurements depth: 1900 mm
- Measurements height: 1826 mm
- Machine weight: 4200 kg
Control Unit
- Model: M-730UM
- Brand: MITSUBISHI
Main drive
- Number of spindles: 1
- Spindle speed range: 4000 1/min
- Spindle motor power: STANDARD (18.5/15 KW)
Movement
- X-AXIS Movement: 260 mm
- Z-AXIS Movement: 500 mm
Turret
- Number of turrets: 1
Media
- Main electronic connection: 380 V - 50hz
- Chip conveyor: Yes
Additional Equipment
- - Power transformer
- - Tool setter
Additional Information
- Technical Machine Benefits:
- - Nominal bed length: 500 mm
- - Spindle (spindle 1) through-spindle hole dia. (mm): 91 mm dia.
- - Spindle (spindle 1) chuck type solid chuck (10")
- - Spindle (spindle 1) chuck manufacturer: kitagawa
- - Spindle (spindle 1) chuck cylinder stroke check: stroke end detection
- - Spindle (spindle 1) cooling unit: fan cooler
- - Spindle (spindle 1) orientation: provided (without lock)
- - Spindle rigid tapping: provided
- - Turret (turret 1) type of turret: 10
- - Stations turret (turret 1) tool mounting method: by bolts
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
