➤ Used DMG MORI ecoMill 70 For sale | gindumac.com

Show in original language

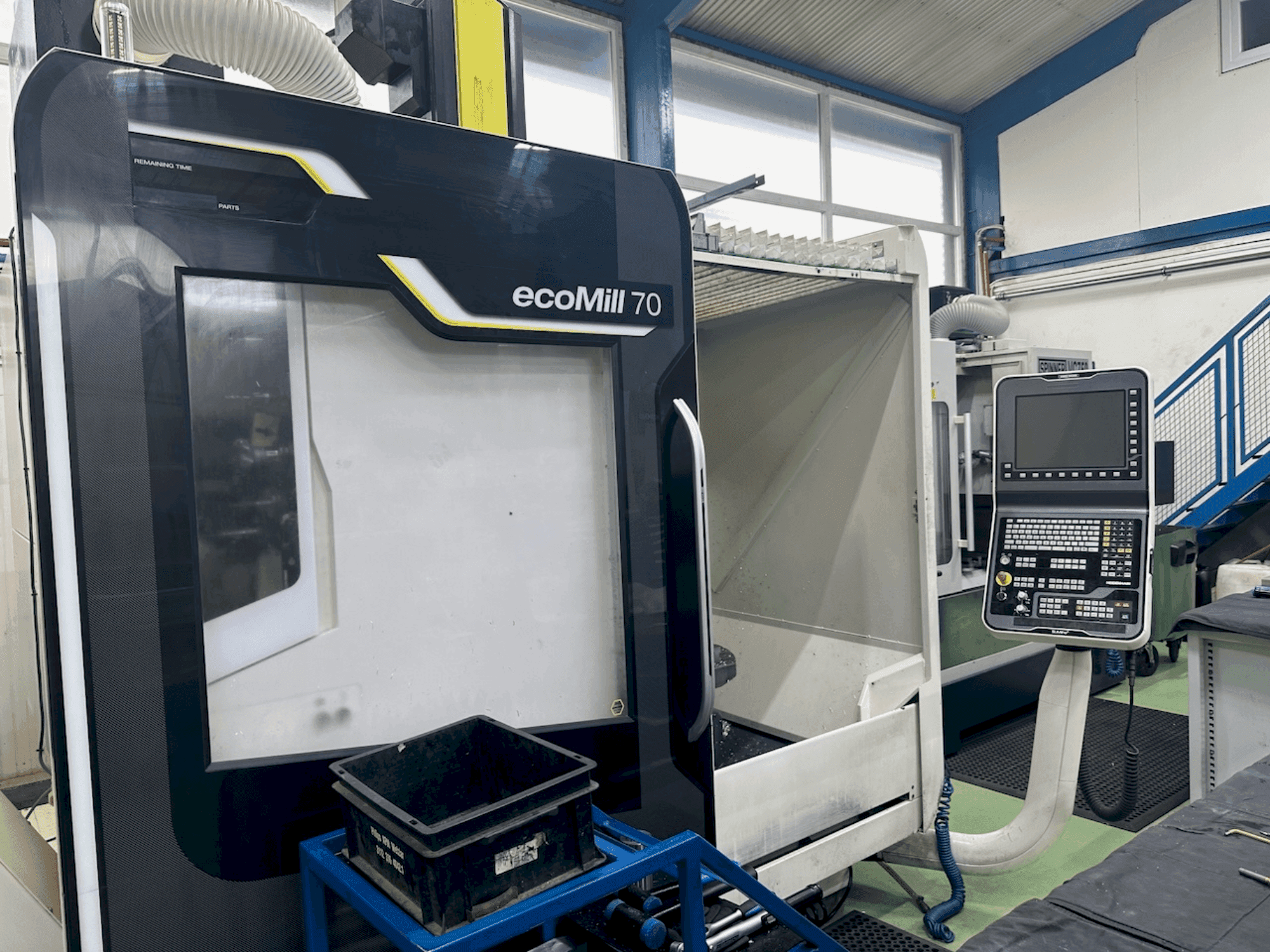

This 5-axis DMG MORI ecoMill 70 was manufactured in 2016. It features a Heidenhain 620 control, a spindle speed of 12,000 RPM, and a 32-place SK40 tool magazine. Additional features include a chip conveyor, spindle through cooling, and a 3D quickset system. Ideal for complex machining tasks, the DMG MORI ecoMill 70 machine we have for sale. Contact us for further details regarding this vertical machining centre.

Overview

brand: DMG MORI
year: 2016
MODEL: ecoMill 70
production hours: 12900
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG MORI ecoMill 70

Control Unit

Control Brand: HEIDENHAIN
Control Model: 620

Movement

B-axis Max: 95°
B-axis Min: -10°
C-axis: 360°
X-axis Travel: 750 mm
Y-axis Travel: 600 mm
Z-axis Travel: 520 mm

Technical Specification

Spindle Speed: 12000 RPM

Additional Information

Additional equipment

3D Quickset
Protime oil mist collector
Renishaw tool measuring
Spindle through cooling
For tooling with tooling support
With closed machining space (roller roof)
ASCII with keyboard

Machine Benefits

Qualitative Machine Benefits

Heidenhain control options
C-h3035 electronic handwheel
Documentation
C-hu1 documentation in hungarian 0. 00
Screen language
C-d-hu screen text in hungarian

Technical Machine Benefits

Ecomill 70 with slimline module
Tilt rotary table d 800x620 / digitally driven tiltable nc rotary table / rotating range b (-10o/+95o) / c (360o) / rapid traverse of linear axes 24 m/min
Ac main drive 13/9 kw (40/100 % ed) / tool holder sk 40 according to din 69871
32-position tool change magazine with quick double gripper
Direct path measuring system x,y,z, / measuring units with sealing air
C-k4227 ecoline probe kit for heidenhain control consisting of: pp40 probe with optical signal transmission; ts27r probe for tool measurement; calibration mandrel with tool holder; calibration ring; transport case. Option direct path measuring system recommended
C-k2630 heidenhain kinematicopt cycle / ool kit for checking and correcting the kinematic accuracy of 5-axis machine configurations (only in combination with probe option)
Coolant/chip removal
C-k3405 parts of the 1st production package: coolant supply via spindle 12 bar; tank volume 360 liters; chip container; flushing gun for chip washing; coolant - blow-off air changeover / external with m-function; 4-color indicator light

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
