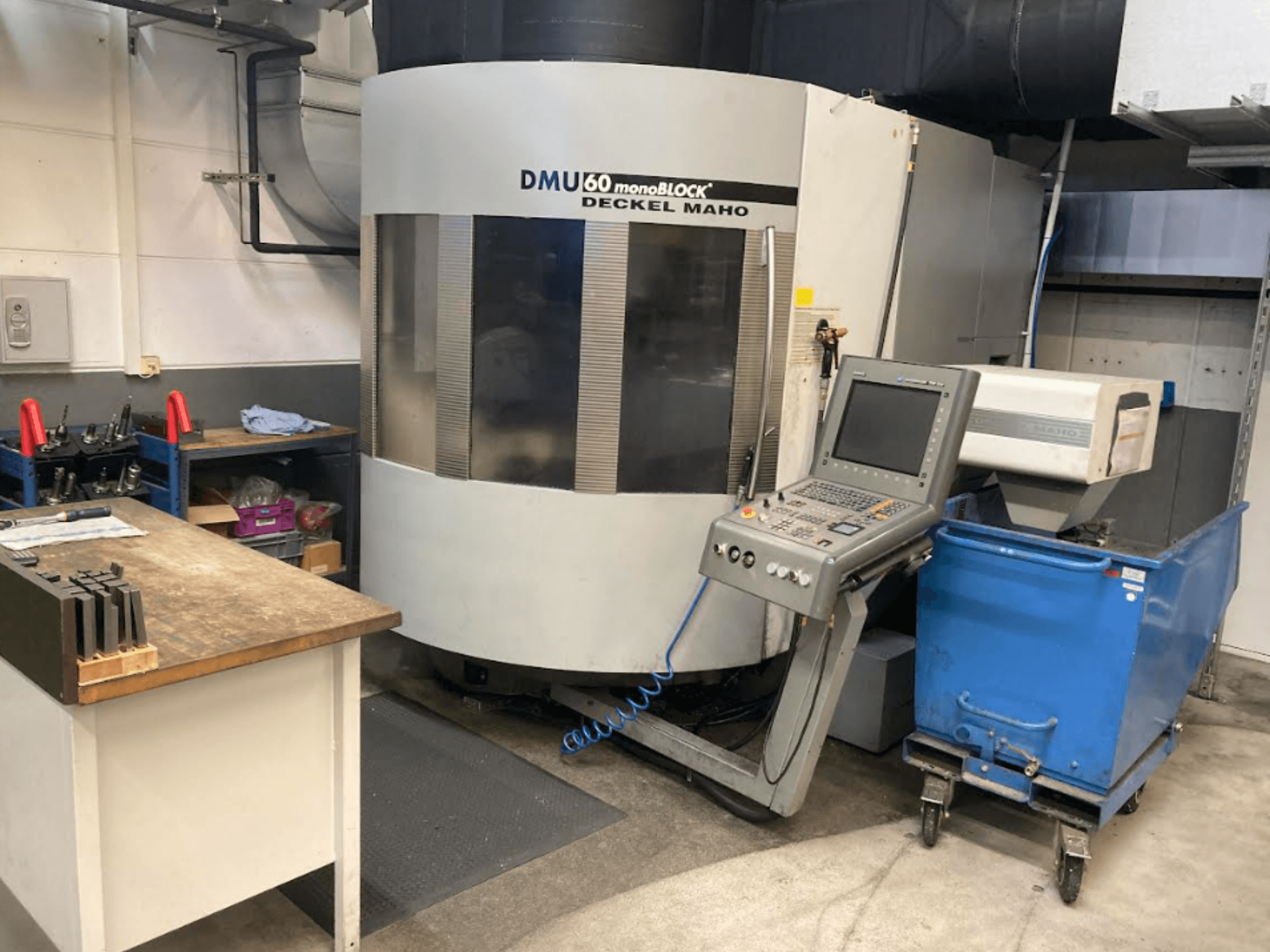

This 5-axis DMG MORI DMU 60 Monoblock was manufactured in 2016. It features an X-axis travel of 730 mm, Y-axis travel of 560 mm, and Z-axis travel of 560 mm. The machine is equipped with a powerful motor spindle capable of reaching speeds up to 18,000 rpm and includes a 24-pocket tool changer. If you are looking to get high-quality machining capabilities, consider the DMG MORI DMU 60 Monoblock vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2016
- MODEL: DMU 60 Monoblock
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG MORI DMU 60 Monoblock
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530 3D
Dimensions
- Table Load: 500 kg
Movement
- Number of Axes: 5
- X-axis Travel: 730 mm
- Y-axis Travel: 580 mm
- Z-axis Travel: 560 mm
Technical Specification
- Spindle Power: 15 kW
- Spindle Speed: 18000 RPM
- Taper Size: SK 40
Additional Information
Working area / travel:
Modification: X-axis travel reduced by 100 mm (effective X travel 630 mm)
Main drive & spindle:
Motor spindle SK40 with active cooling
Power: 15 kW (40% duty) / 10 kW (100% continuous)
Tooling system:
Tool holder: SK40 (DIN 69871)
Tool clamping: DIN 69872
Tool changer: Pick-up system
Magazine: 24 pockets (SK40)
Work table:
Integrated NC rotary table in rigid table
Rotary table Ø 600 mm; total table 1,000 x 600 mm
T-slots: 1x 14 H7 (alignment, centered) + 8x 14 H12 (clamping)
T-slot spacing: 63 mm
Permissible load: 500 kg
Milling head:
Controlled NC-swivel B-axis with hydraulic clamping
Spindle offset: 100 mm
Swivel range: -120° to +30°
Control system:
Electronic handwheel iTNC 530
Control language: German
Additional equipment
Workpiece measurement: Heidenhain TS 640 infrared probe (SK40)
Tool measurement: Blum laser (in-machine vertical tool length and diameter)
Chip conveyor
Flushing gun with pump (1 bar / 40 l/min theoretical capacity)
Networking: DMG Netservice Basic Package Euro ISDN (Netservice Box, Cisco Euro ISDN Router, license)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
