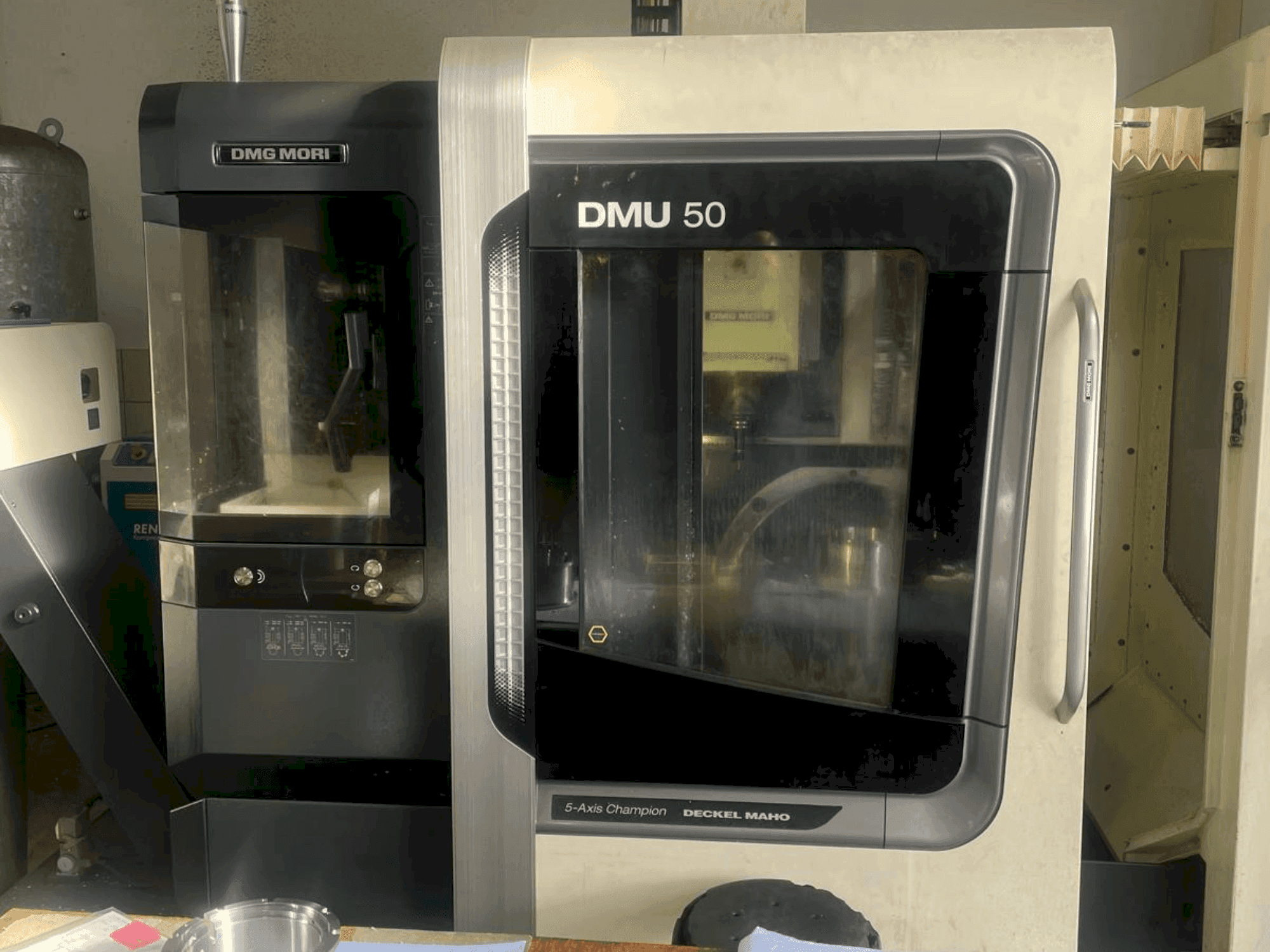

DMG MORI - DMU 50DE-MIL-DMG-2016-00006

• Rapid traverse: 30 m/min

• Swivel rotary table with simultaneous machining capability

• Clamping surface: diameter 630 x 500 mm

• Swivel range: -5 to +110°, 360° rotary axis

• Tool clamping: according to din 69872

• 60-position sk40 tool magazine

• Vertical chain with double gripper including tool loading setup aid

• Total installed rated power: 10. 0 kw

• Installed net power: 7. 3 kw

• Control voltage: 24 v dc

• Ball screw and bearing need to be changed. Official DMG offer available.

• Flushing gun for chip flushing

• Coolant/air blast switching: External via M function

• Active cooling unit for control cabinet

• Operating voltage and frequency: 3 x 380 V - 50/60 Hz

• Supply line protection: 2 standard steps above the rated current

• Permissible rated voltage fluctuations: +/- 10% at idle and full load

• Max. permissible ambient temperature: +35°C

• Max. installation altitude: 1000 m

Additional equipment

• Infrared measuring probe: Heidenhain TS 649 DMG

• 3D quickSET toolkit

• 4-color signal light

• Cabin roof: Crane loading possible by manually opening the middle roof segment

• Operating mode 4: Process monitoring during production

• Chip conveyor: Scraper belt chip conveyor
