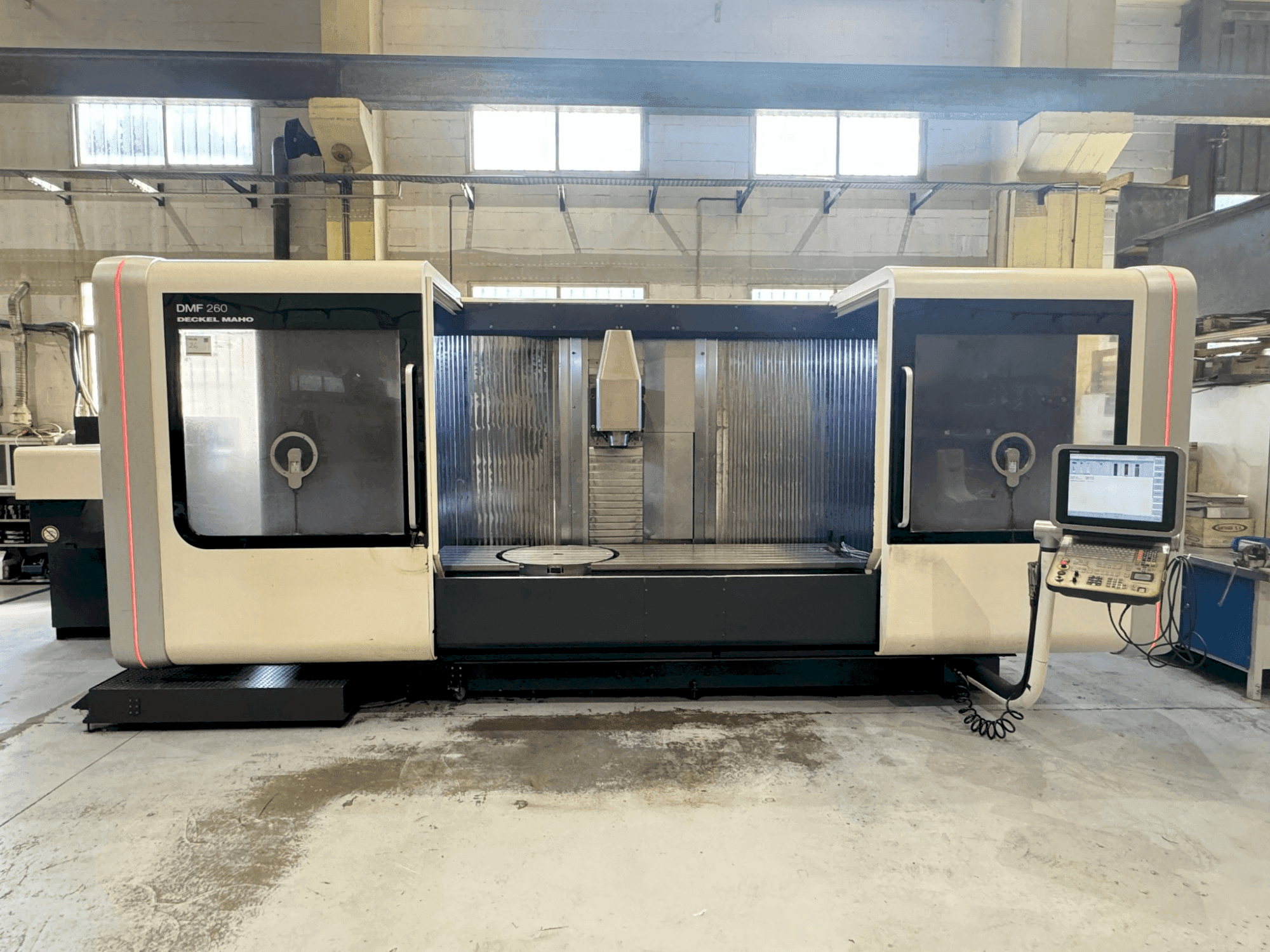

This 5-axis DMG MORI DMF 260/7 vertical machining centre was manufactured in 2012. It features a HEIDENHAIN iTNC 530 control, a fixed table surface of 2,900 x 700 mm, and a rotary table Ø 730 mm with 360° rotation. The machine supports a maximum weight of 2,150 kg on the fixed table and 560 kg on the rotary table. It offers a longitudinal travel of 2,600 mm, transversal travel of 700 mm, and vertical travel of 700 mm. For more information about this vertical machining centre, please reach out to us.
Overview
- brand: DMG MORI
- year: 2012
- MODEL: DMF 260/7
- production hours: 10175
- application type: Milling
- Location: Spain
- machine type: Machining centers (vertical)
- availability: Immediately
- control unit brand: HEIDENHAIN
Technical Information - DMG MORI DMF 260/7
General Data
- Machine weight: 16070 kg
Control Unit
- Brand: HEIDENHAIN
- Model: iTNC 530
Main drive
- Number of spindles: 1
- Spindle speed range: 20-800 rpm 1/MIN
- Spindle motor power: 23.5/13.5 kW
- Tool taper: SK 40 DIN 69872
- Number of axis: 5
Movement
- X-AXIS Movement: 2600 mm
- Y-AXIS Movement: 700 mm
- Z-AXIS Movement: 700 mm
- B-AXIS Movement: ± 110° MM
- C-AXIS Movement: 360° MM
Turret
- Number of turrets: 1
Tools
- Number of stations: 30
- Max weight: 5 kg
- Max tool diameter: 130 mm
- Max tool length: 300 mm
Media
- Chip conveyor: Yes
Additional Equipment
- - Rotary table Ø 730 mm (Axis C) // Rotary encoder head
- - Detachable 2-zone working separator
- - Direct measurement system // Tool measurement LAER BLUM
- - Spindle cooling / Col. 1
- - Longitudinal chip conveyor
- - 2 front windows
- - Leveling pilots
- - Portable handwheel
- - DMG 3D quickSET (for checking and dynamic correction of the machine tool accuracy in 5 axes)
- - DMG Mori PP60 PowerProbe 50 optical probe (Renishaw OMP60)
Additional Information
- Technical Machine Benefits:
- - Maximum weight on fixed table: 2,150 kg
- - Maximum weight on integrated rotary table: 560 kg
- - Tool change time: 7. 6 s
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
