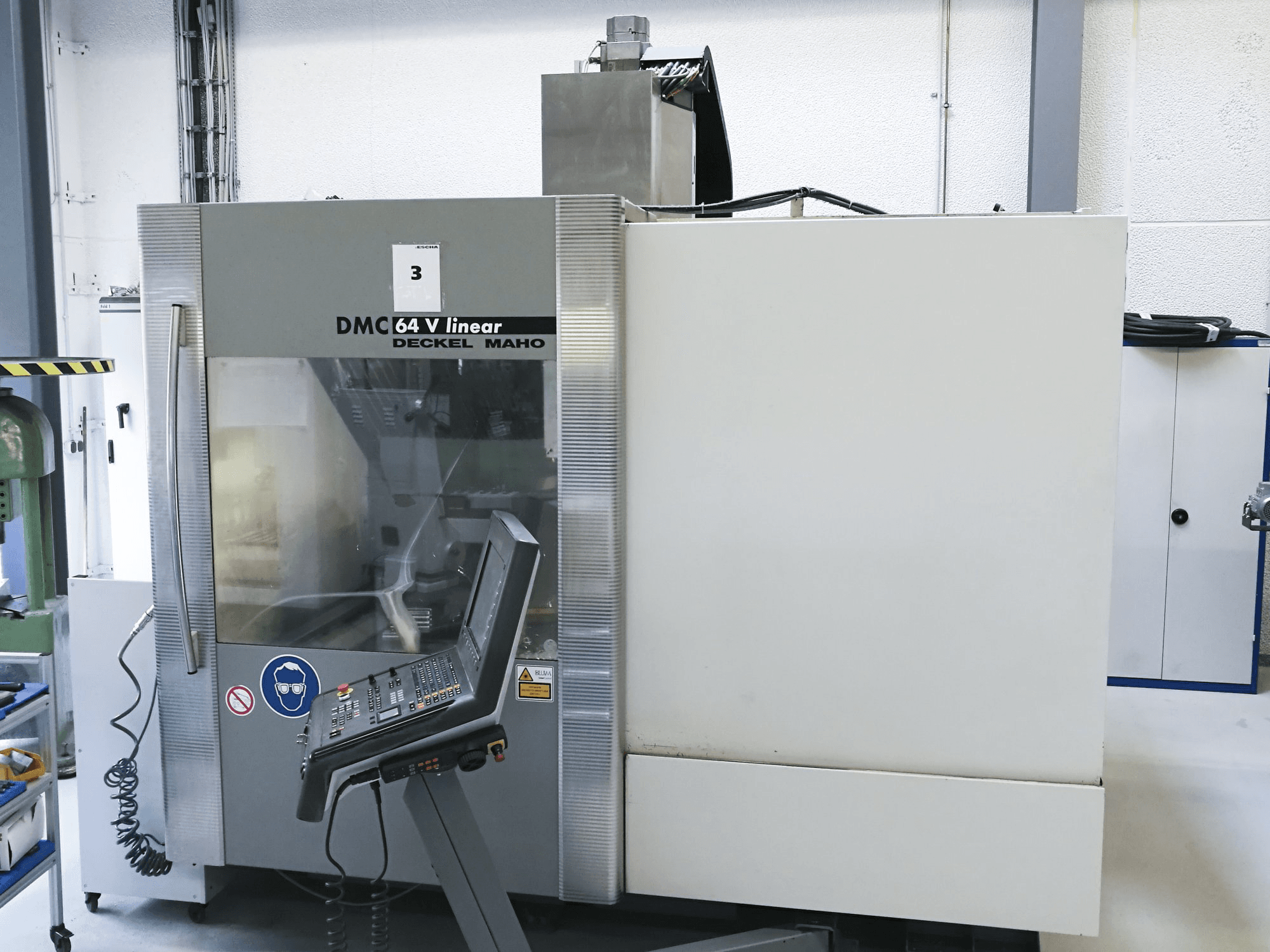

Front view of DMG MORI DMC 64 V linear machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI DMC 64 V linear

Photo Gallery

DMG MORI - DMC 64 V linearDE-MIL-DMG-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG MORI DMC 64 V linear 3 Axis Machining Center

Show in original language

The DMC 64 V linear, produced by DMG MORI, is a 3 Axis Machining Center manufactured in 2002 with a production record of 18545 working hours. This machine is in a perfect condition and has only been used for trochoidal milling. It is operated through a iTNC 530 Control unit by HEIDENHAIN and includes a precision boring head and additional toolholders as its accessories.

Overview

brand: DMG MORI
year: 2002
MODEL: DMC 64 V linear
production hours: 18545
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMC 64 V linear

General Data

Measurements width: 3450 mm
Measurements depth: 3634 mm
Measurements height: 3215 mm
Machine weight: 6500 kg

Control Unit

Brand: HEIDENHAIN
Model: iTNC 530
Remote control: Yes

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/min
Tool taper: Sk 40

Movement

X-AXIS Movement: 640 mm
X-AXIS Working Feed: 0-40 m/min
X-AXIS Feed Force: 7000 N
X-AXIS Rapid traverse: 60 m/min
X-AXIS Accuracy: 0.027
Y-AXIS Movement: 600 mm
Y-AXIS Working Feed: 0-40 m/min
Y-AXIS Feed Force: 7000 N
Y-AXIS Rapid traverse: 40 m/min
Y-AXIS Accuracy: 0.024
Z-AXIS Movement: 500 mm
Z-AXIS Working Feed: 0-40 m/min
Z-AXIS Feed Force: 7000 N
Z-AXIS Rapid traverse: 40 m/min

Workpiece

Workpiece z: 500 mm
Workpiece weight: 600 kg

Table

Outer length: 850 mm
Outer width: 630 mm
TSlots size: 14
Number of tslots: 6
Distance between: 100

Tools

Slots in storage: 30
Max weight: 7 kg
Max tool diameter: 140 mm
Max tool length: 300 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 42 kVA
Air pressure: 6 bar
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Tool holders
- Precision boring head

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
