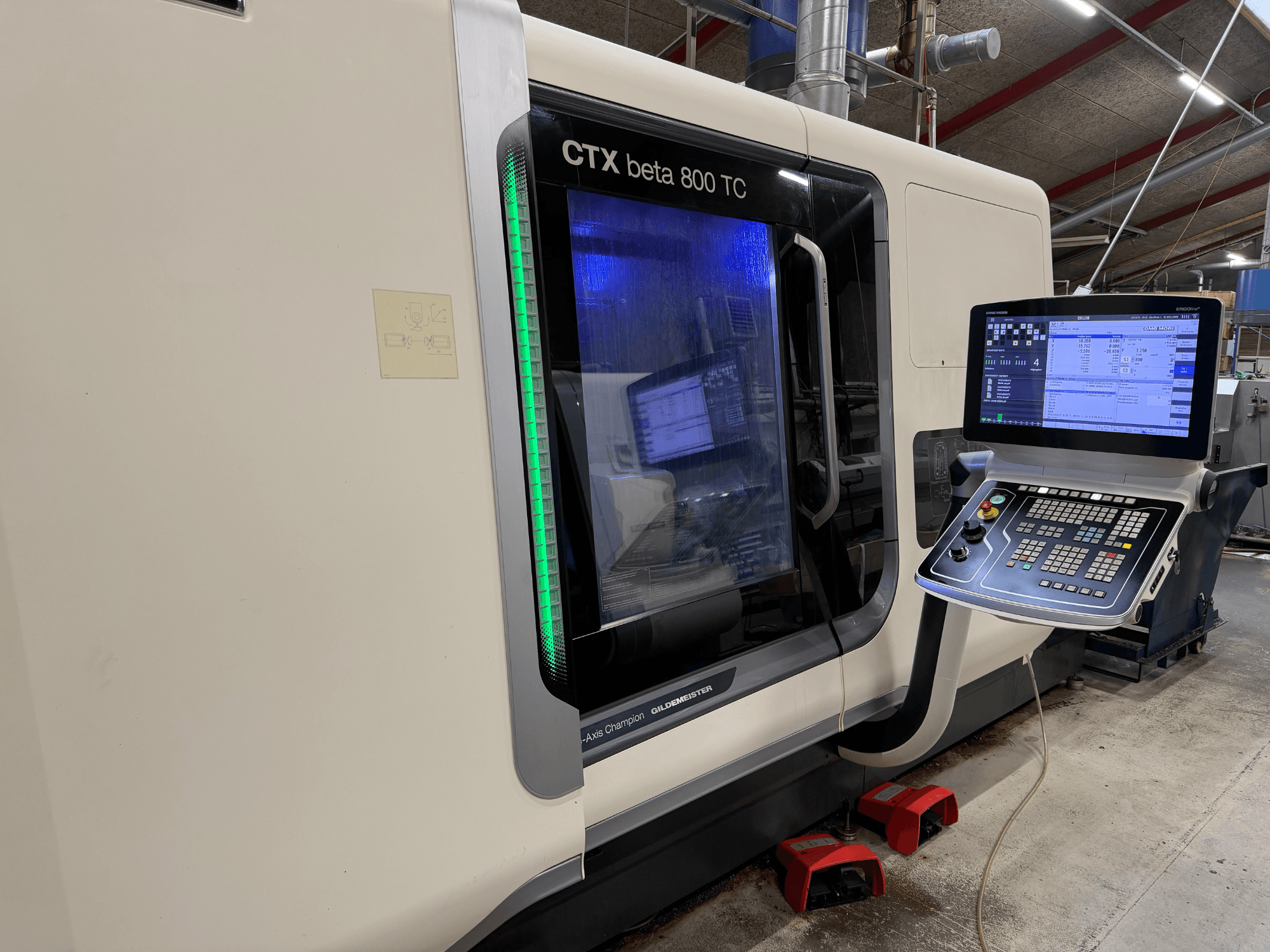

This 5-axis DMG MORI Beta 800 TC was manufactured in 2015. It features a Siemens sl Operate 3G control, a counter spindle with a C axis, and dual chucks on both main and counter spindles. Equipped with a 48-tool HSK 63A chain magazine and a coolant system capable of 8/20 bar, it's ideal for complex turn-mill operations. Consider the opportunity to buy this DMG MORI Beta 800 TC turn-mill centre. Contact us for more information about this machine.

Overview

  • brand: DMG MORI
  • year: 2015
  • MODEL: Beta 800 TC
  • production hours: 16661
  • application type: Turning
  • Location: Denmark
  • machine type: Turn-Mill Centre
  • control unit brand: SIEMENS

Technical Information - DMG MORI Beta 800 TC

Control Unit

  • Control Brand: SIEMENS
  • Control Model: 840 D

Dimensions

  • Machine Weight: 10000 kg

Movement

  • B-axis Max: 110°
  • B-axis Min: 110°
  • C-axis: 360°
  • Number of Axes: 5
  • X-axis Travel: 480 mm
  • Y-axis Travel: 200 mm
  • Z-axis Travel: 845 mm

Technical Specification

  • Counter Spindle: Yes
  • Driven Tools: Yes
  • Max. Bar Diameter: 67 mm
  • Spindle Speed: 12000 RPM
  • Taper Size: HSK 63
  • Through-spindle Coolant: Yes
  • Tool Stations: 48

Additional Information

  • CNC control: Siemens SL Operate 3G, 1 channel, without CELOS

  • Configuration: Counter spindle ISM 52 with C-axis (instead of tailstock)

  • Tool magazine: Chain magazine for 48 tools, HSK 63A

  • Coolant system: 8/20 bar, 600 l tank

  • Chuck rinsing for main and subspindle

  • Coolant supply to counter spindle

Additional equipment

  • Workholding:

    • Main spindle: 3-jaw chuck SMW BBD210-66 and DMG TCC 65 collet chuck

    • Counter spindle: 3-jaw chuck SMW BBD210-66 and DMG TCC 65 collet chuck

  • Chip conveyor: Hinge type

  • Preparation for mist collector

  • Bar machining package Ø 67 mm

  • Tool measurement probe: Blum B-H7210

  • Approx. 40 toolholders (to follow)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
