DMG MORI - JJ1 IT-TUR-DMG-2016-00003

Name: DMG MORI JJ1
Brand: DMG MORI
SKU: IT-TUR-DMG-2016-00003
Price: 93324 GBP
Availability: InStock

£ 93,324

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI JJ1 For Sale | gindumac.com

Show in original language

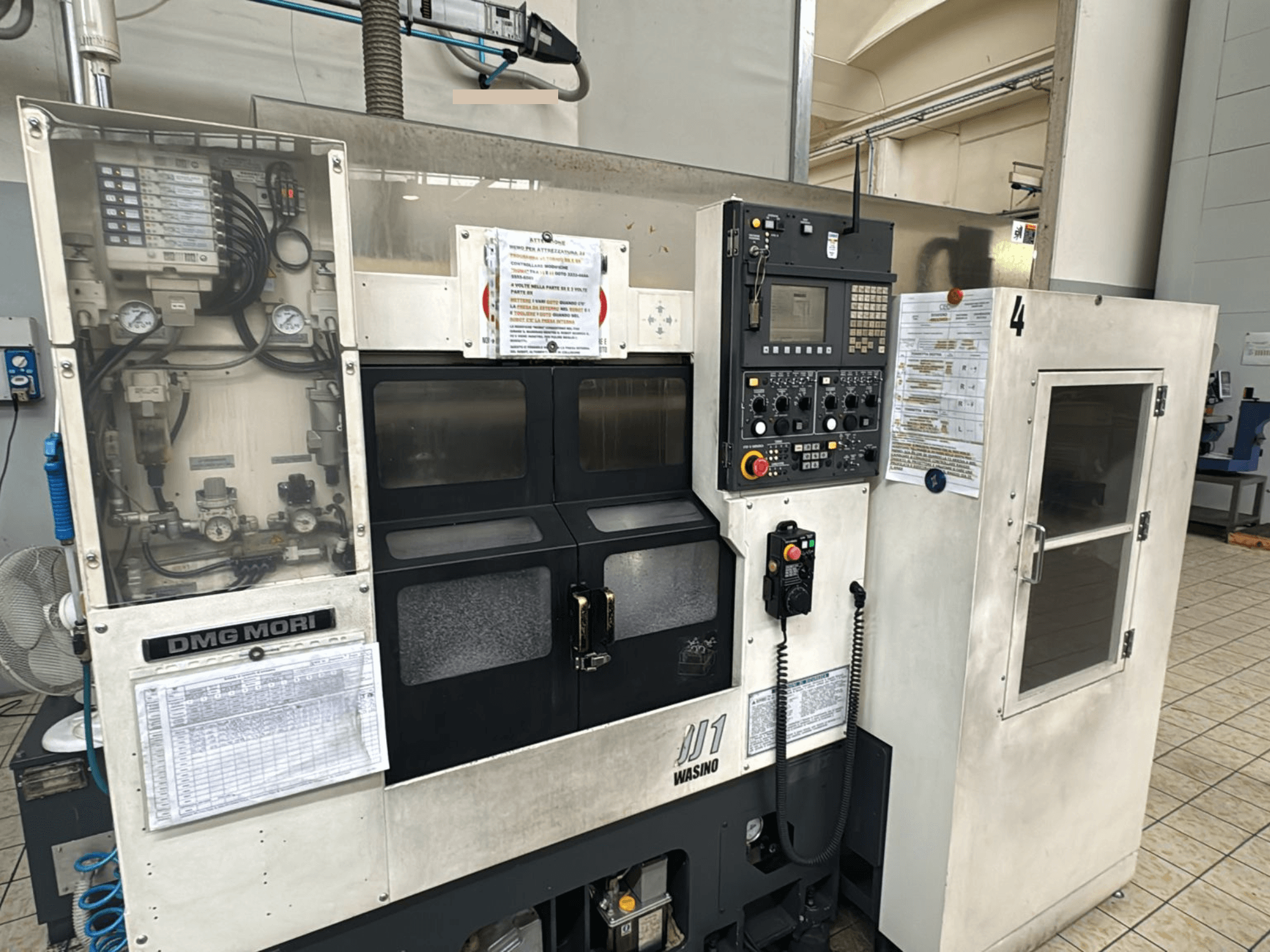

This DMG MORI JJ1 was manufactured in 2016. A robust horizontal turning machine featuring a dual-axis CNC control with FANUC Series 31i-Model A, it offers a maximum spindle speed of 8000 rpm and supports up to 8 turning tools. Ideal for precision work with a nominal workpiece size of Ø650 × 50 mm. If you are looking to get high-quality turning capabilities consider the DMG MORI JJ1 machine we have for sale. Contact us for more information.

Overview

brand: DMG MORI
year: 2016
MODEL: JJ1
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine

Technical Information - DMG MORI JJ1

Dimensions

Machine Height: 1500 mm
Machine Weight: 2600 kg

Movement

Number of Axes: 3
X-axis Travel: 147 mm

Technical Specification

Spindle Power: 5.5 kW
Spindle Speed: 8000 RPM

Additional Information

Nominal workpiece size: Ø650 × 50 mm
Center height from floor: 900 mm
Main spindle:
- Nose: Ø80 (flat) – Spec A / Ø100 (flat) – Spec B
- Bore: Ø32 – Spec A / Ø45 – Spec B
- Speeds: infinitely variableAxes:
- Main spindle X-axis travel: 147.5 mm
- Z-axis rapid feed: max. 15 m/min
- CNC controlled axes: 2 axes (L-unit) + 2 axes (R-unit)
Turret:
- Type: 8-station drum turret
- Number of attachable turning tools: max. 8
- Standard turning tool shank: Ø20 mm
- Maximum bar turning tool shank: Ø25 mm
- Turret swing diameter: Ø376 mm
Motors/Pumps:
- Hydraulic pump motor: 0.75 kW
- Coolant pump motor: 0.18 kW × 2
- High-pressure pump motor: 0.40 kW × 2
CNC control: FANUC Series 31i-Model A
Dimensions/Weight:
- Floor space required: W1490 × D1615 mm
Power consumption: 21 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
