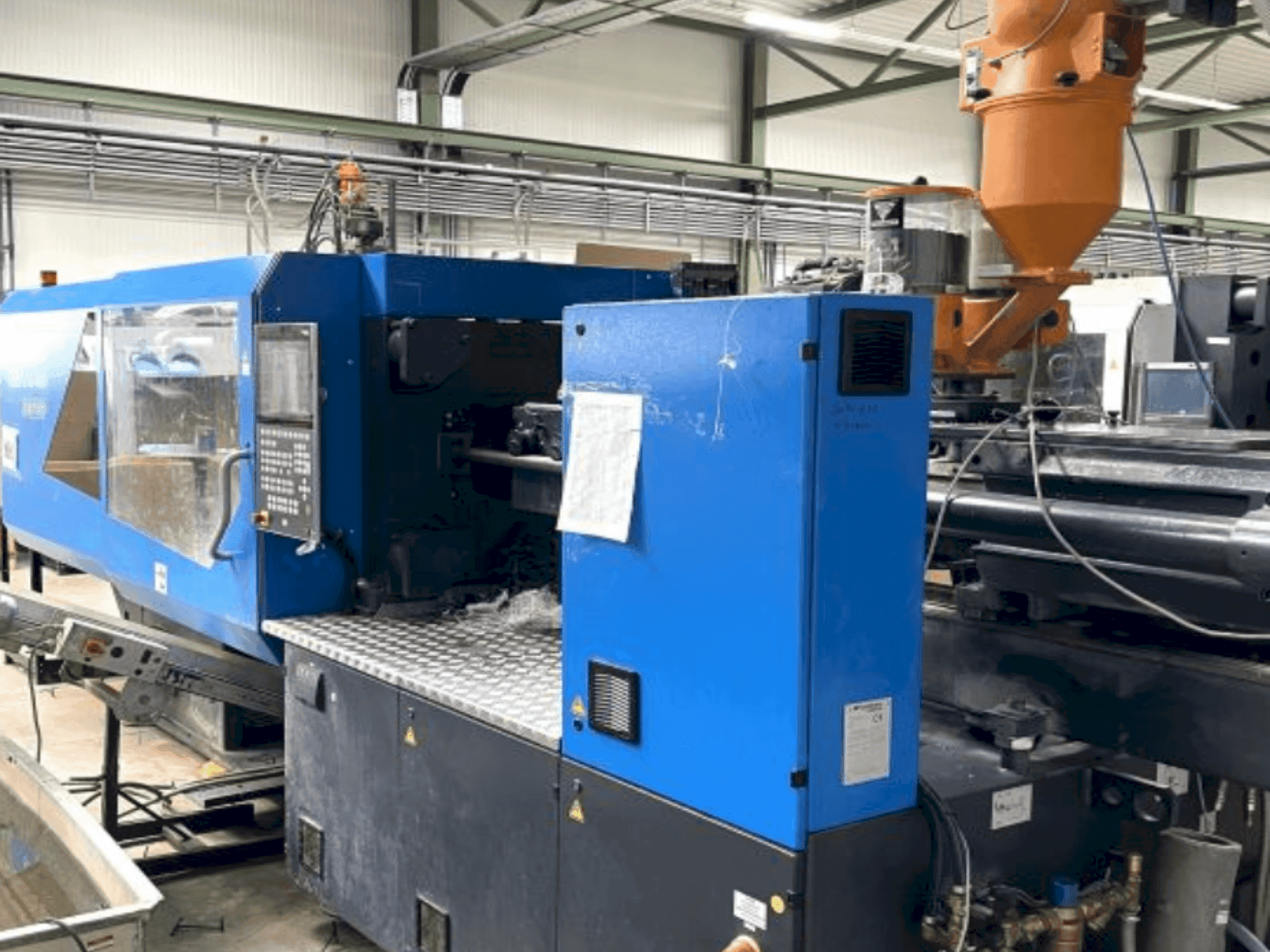

This DEMAG Systec 210/580-840 was manufactured in 2019. It's a hydraulic injection moulding machine with a clamping force of 210 tons and a power output of 60 kW. It has been used for 31,132 operating hours. Consider the opportunity to buy this DEMAG Systec 210/580-840 hydraulic injection moulding machine. Contact us for more information.
Overview
- brand: DEMAG
- year: 2019
- MODEL: Systec 210/580-840
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Additional Information
The dosing unit (orange part) is not included.
Integrated socket combination, country-specific,
can be switched off via main switch and shutdown program
2 x Schuko 1Ph/230V/16A; 2 x IECEE 3Ph/400V/16A residual current device
Pneumatic 5/2 valve No. 1 on movable mold clamping plate;
programmable, supplied via central air connection
includes hoses. Inputs and outputs freely programmable; 3 inputs and 3 outputs;
Terminal point outside the control cabinet
Interface for additional nozzle heating band; socket only
2-circuit core puller via switching valve on movable mold clamping plate; Q-independent (programmable);
With pilot-operated check valves to prevent core creep
Mold connection dimensions E (similar to Euromap March 96)
With side ejector plate, centering diameter of fixed platen: 160 mm
Centering diameter of movable platen:
Mold installation height increased by 100.0 mm
Min: 340 mm
Max: 790 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
