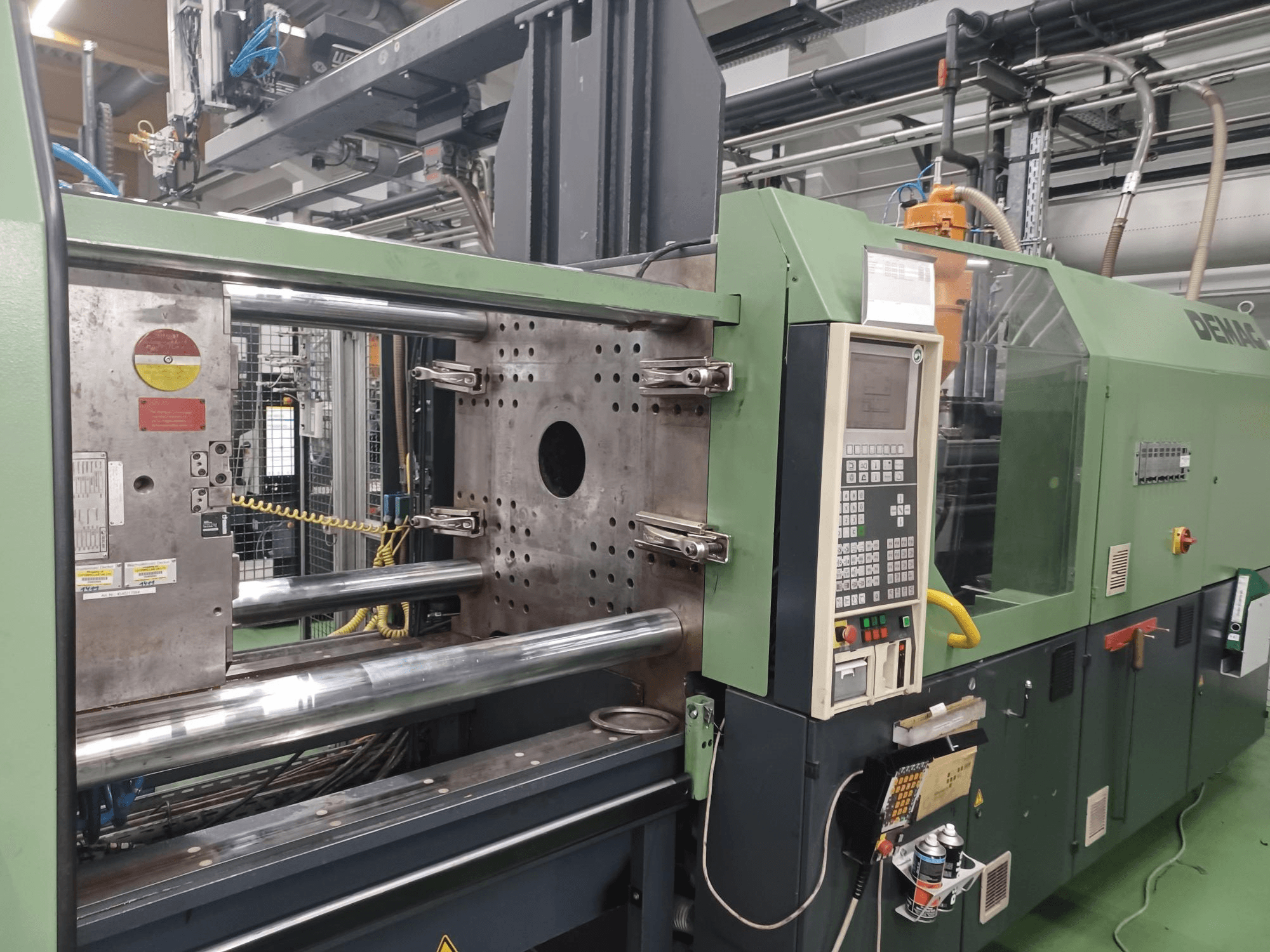

Demag injection molding machine, front view, featuring control panel, metallic hydraulic cylinders, and safety features.
Demag injection molding machine, front view, featuring control panel, metallic hydraulic cylinders, and safety features.

DEMAG - ET 330 - 1450DE-INJ-DEM-1995-00003

£ 8,197
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DEMAG ET 330 - 1450 hydraulic injection moulding machine was manufactured in 1995. It features a clamping force of 3300 kN and a screw diameter of 60 mm, providing robust performance for various applications. The machine includes a Wittmann W322-121 linear robot for enhanced automation. Consider the opportunity to buy this DEMAG ET 330 - 1450 hydraulic injection moulding machine. Contact us for further details.

Overview

  • brand: DEMAG
  • year: 1995
  • MODEL: ET 330 - 1450
  • production hours: 122158
  • application type: Injection Moulding
  • Location: Germany
  • machine type: Hydraulic Injection Moulding Machine

Technical Information - DEMAG ET 330 - 1450

Technical Specification

  • Clamping Force: 3300 kN
  • Screw Diameter: 60 mm

Additional Information

  • Clamping unit:

    • Locking force: 3630 kN

    • Tie bar spacing (H x V): 710 x 630 mm

    • Platen dimensions (H x V): 1040 x 950 mm

    • Mold installation height: min 330 mm / max 830 mm

    • Opening stroke: 675 mm

    • Platen distance (daylight): 1505 mm

    • Permissible mold weight: fixed side (DS) 1200 kg; moving side (AS) 2400 kg; total 3600 kg

    • Ejector: stroke 200 mm; force 80 kN; retraction force 35 kN

    • Core pull control: yes (2 units, on ejector side/AS)

    • Shut-off nozzle: yes (hydraulic/pneumatic 1/1)

  • Injection unit 1:

    • Unit code: 1450-60

    • Screw diameter: 60 mm

    • Injection pressure: 1905 bar

    • Stroke volume: 763 ccm

    • Shot weight (PS): 695 g

    • Screw L/D ratio: 20

    • Nozzle radius: 15 mm

    • Max dosing stroke: 270 mm

    • Plasticizing flow: 41 g/s

  • Configuration/controls:

    • Armored (wear-resistant) injection unit: yes

    • Pneumatic ejector: yes

    • Process control: SPC (Yes/Yes)

    • Printer interface: integrated

    • Hot runner control: 0-zone (none)

  • Maintenance:

    • Hose replacement performed in 2017

Additional equipment

  • Wittmann W322-121 CNC linear robot/removal device (included with the machine)

    • Travel paths: Y-axis 1600 mm, X-axis 500 mm, Z-axis 2500 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
